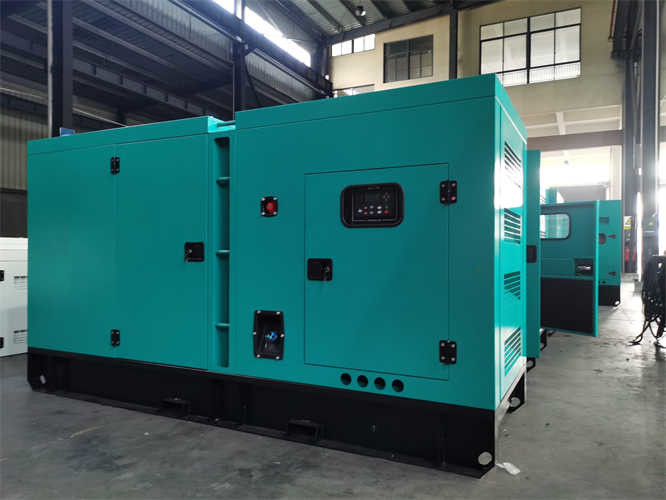

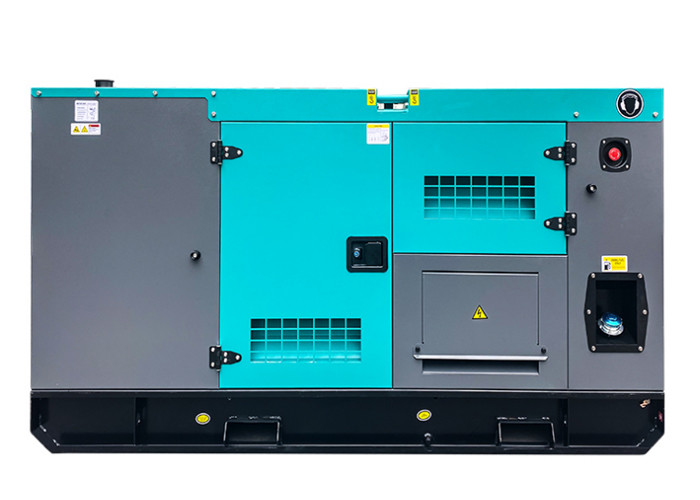

60HZ 75KVA 60KW Soundproof Perkins Silent Diesel Generator
| Place of Origin | China |
|---|---|
| Brand Name | Perkins |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG75PSD6 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open / Silent | Engine Brand | Perkins |
|---|---|---|---|
| Alternator | Leroy Somer / Stamford / Tecgen | Control System | AMF/ATS |
| Cooling Method | Water Cooling | Color | Optional |
| Highlight | Soundproof perkins silent diesel generator,60KW perkins silent diesel generator,75KVA perkins silent generator |
||
Product Description
Perkins Diesel Generator 60HZ 75KVA 60KW Silent Soundproof Generator Power Genset
1) Engine: Perkins Diesel Engine, Water-cooled
2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Single phase available:100-250V
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG75PSD6 |
| Prime Power | 68KVA/55KW |
| Standby Power | 75KVA/60KW |
| Rated Voltage (V) | 220 |
| Rated Frequency (Hz) | 60 |
| Rated Speed (RPM) | 1800 |
| ENGINE DATA | |
| Engine Brand | Perkins |
| Engine Model | 1103A-33TG2 |
| No. of Cylinders | 3 |
| Cylinder Arrangement | In-line |
| Air intake way | Turbo |
| Governor | Mechanical |
| Bore*Stroke (mm*mm) | 105*127 |
| Displacement (Liter) | 3.3 |
| Fuel Consumption (g/kw.h) | 207 |
| Cooling System | Water-Cooled |
| ALTERNATOR DATA | |
| Alternator Brand | Stamford/Leroy Somer/Tecgen |
| Prime Power | 55KW |
| Connecting Type | 3 Phase |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Tecgen Power Generator Feature:
Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings 6.Set mounted acid battery installed with leads and terminals
Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Control System Feature
1.manual / auto start and protection moudle
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
