9kVA 10kVA Back Up Diesel Engine Standby Genset Powered By Yangdong Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Yangdong Standby Generator | Output | 9kVA - 11kVA |
|---|---|---|---|
| Frequency | 50Hz | Voltage | 415 / 240V |
| Engine Model | YD380D | Cylinder | 4 |
| Alternator Model | TGI164S7 | AlternatorType | Brushless, 3 Phase |
| Genset | Silent | Delivery Time | 7 Days |
| Highlight | Diesel Engine standby genset,10kVA standby genset,9kVA diesel back up generator |
||
Product Description

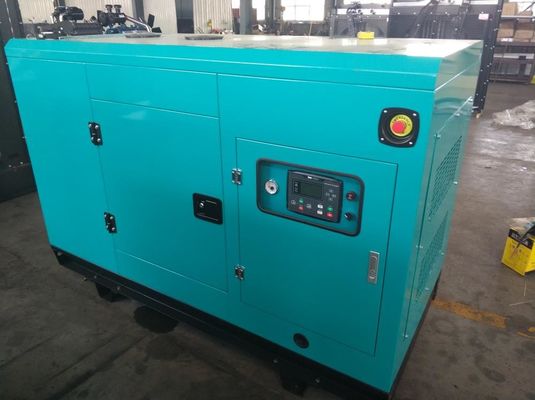

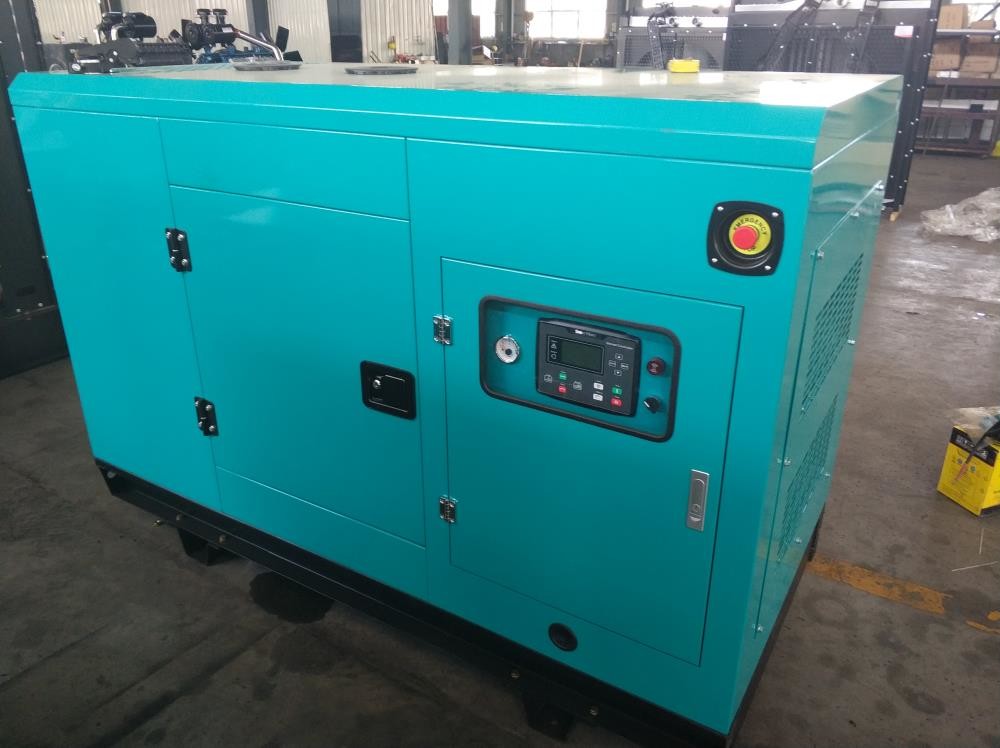

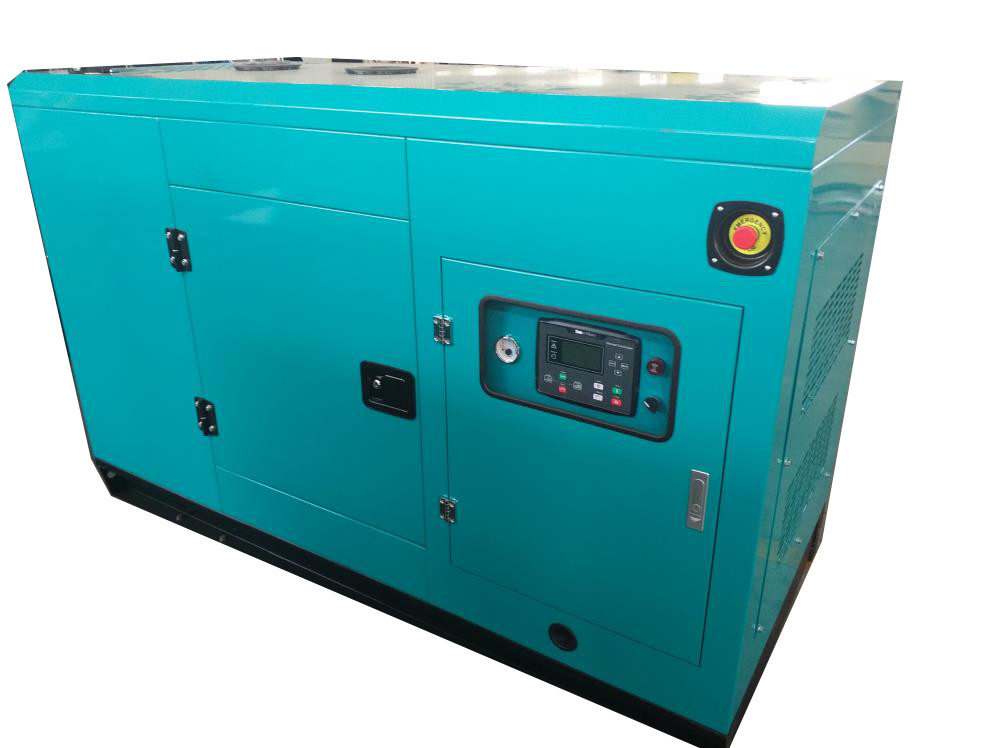

9kVA 10kVA Back-up Diesel Engine Standby Generators Powered by Yangdong Engine Couple with Chinese Alternator
- Standby Generators ranges:
Prime Output: 9kVA to 75kVA / Standby Output: 10kVA to 83kVA
- Diesel Engine Brand: Yangdong diesel engine, Water-cooled & Air-cooled
- Alternator: Tecgen Copy Stamford Alternator, Brushless H class insulation, Self-excitation, IP23 protection, AVR regulator, THF <5%, low radio interference.
- Three-phase four-wire / Three-phase 12 Wire / One-phase two-wire
- Available three-phase voltage: 120V/208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Available single-phase voltage: 100-250V - Delivery time for Tecgen Industrial Diesel Generators:
CKD / SKD type: 7 days
Open type: 7 days
Silent type: 12 days for MOQ 1 sets
Special Production time for Bulk order:
Genset QTY ≤100 units 20days, ≥100 units ≤200units, 35days, ≤300units,40days
Yangdong Genset TECHNICAL DATA:
| Technical Specification: | ||||
| Generator Set Specification | ||||
| Genset Model | TG10YD | TG10YDSS | TG11YD | TG11YDS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 415/240V | |||
| Phase | 3 | |||
| Rate Current (A) | 16.4 | 18.3 | ||
| Prime Power (KW/KVA) | 7 / 9 | 8 / 10 | ||
| Standby Power(KW/KVA) | 8 / 10 | 9 / 11 | ||
| Engine Model | YD380D | YD385D | ||
| Alternator Model | TGI164S7 | TGI164S8 | ||
| Controller | Mebay DC52D | |||
| Fuel Tank Capacity | 20L | 20L | ||
| Weight And Dimensions | ||||
| Length (mm) | 1150 | 1700 | 1150 | 1700 |
| Width (mm) | 750 | 850 | 750 | 850 |
| Height (mm) | 950 | 1100 | 950 | 1100 |
| Weight (kgs) | 500 | 700 | 550 | 750 |
| Engine Specification | ||||
| Engine Model | YD380D | YD385D | ||
| Prime (kW) | 10 | 11 | ||
| Injection | Indirect | Indirect | ||
| Aspiration | Naturally Aspirated | Naturally Aspirated | ||
| No. of cylinders | 3 | 3 | ||
| Bore of Stroke (mm) | 80 x 90 | 85 x 90 | ||
| Displacement (L) | 1.357 | 1.532 | ||
| Cooling | water | water | ||
| Compression Ratio | 18:1 | 17.3:1 | ||
| Engine Oil capacity (L) | 3.6 | 3.6 | ||
| Coolant Capacity ( In radiator) | 3.6 | 3.6 | ||
| Governor | Mechanical | Mechanical | ||
| Air Filter | Dry Element | Dry Element | ||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 2.1 | 2.4 | ||
| 75% Load (L/h) | 1.6 | 1.8 | ||
| 50% Load (L/h) | 1.1 | 1.2 | ||
| 25% Load (L/h) | 0.53 | 0.61 | ||
| Alternator Specification | ||||
| Brand | Tecgen | Tecgen | ||
| Model | TGI164S7 | TGI164S8 | ||
| Rate Output (kVA) | 9 | 10 | ||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Mebay | |||
| Model | DC52D | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||

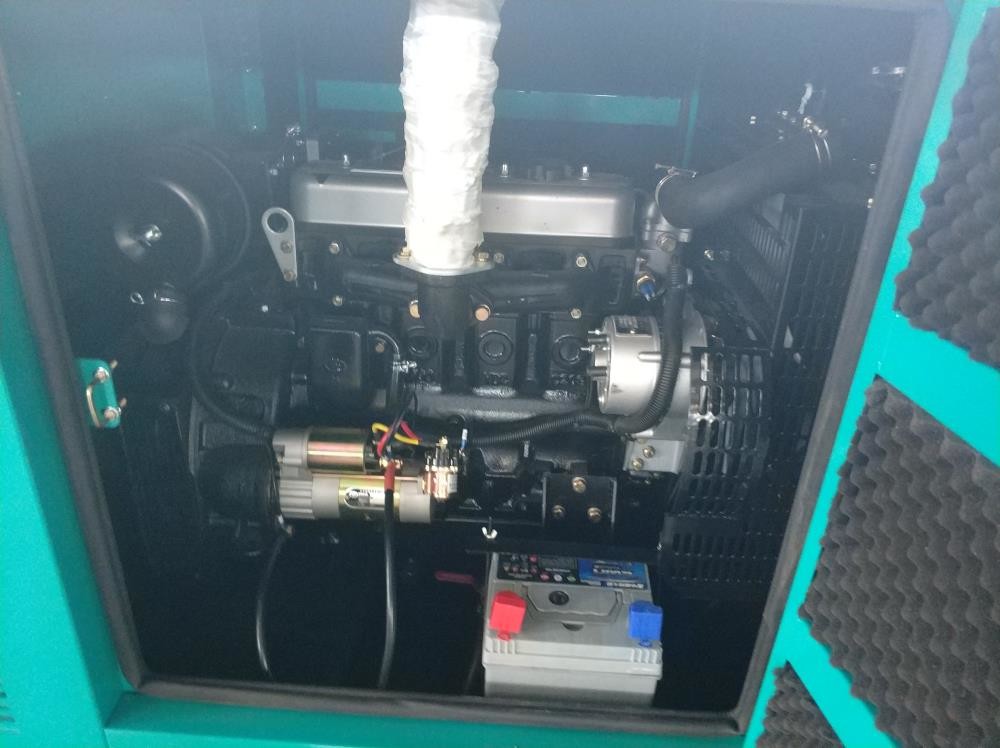

Engine: Yangdong generator engine
1)Cooling method: closed water cooling
2)Starting method: electric start.
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 75dB 7 meter away
Copy Stamford Alternator:
1) Brand: Stamford or Leroysomer or Our Tecgen brand(TGI series)
2) Rated output: 20 -1000kW / 25kVA -1250kVA
3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine: Direct coupled with flywheel
Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) MCCB of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1.5 year or 1500 running hours whichever comes first.
But based on some special project, we can extend our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.
Question: What's your delivery time?
Answer: Our normal delivery time is 7 - 15 working days.
But if your order is some special engine and alternator, then the delivery time is longer.
