150kVA SDEC Generators SC7H205D2 China Generating Set 120kW Continuous Power Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Open Type Diesel Genset | Frequency | 50Hz |
|---|---|---|---|
| Voltage | 415 / 240V | Genset Current | 208.7 A |
| Engine Brand | SDEC | Engine Model | SC7H205D2 |
| Alternator Model | TGI274S120 | Controller | HGM6120N Smartgen |
| Breaker | 250A MCCB Circuit Breaker | Option | Water Heater |
| Fuel Consumption | 32.1 L | ATS | 250A Auto Transfer Switch |
| Highlight | 150kVA SDEC Generators,SDEC Generators SC7H205D2,120kW continuous power generator |
||
Product Description

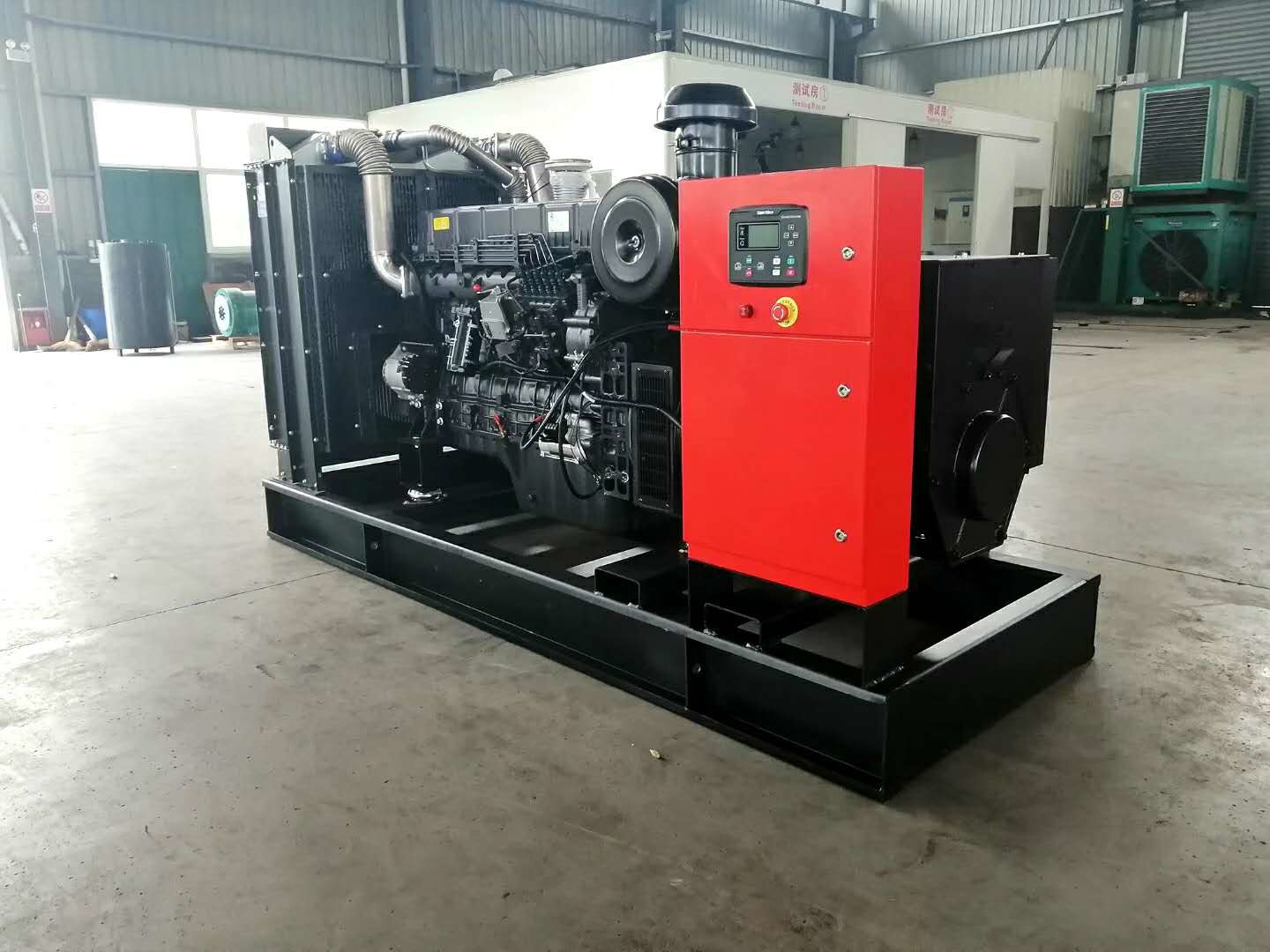

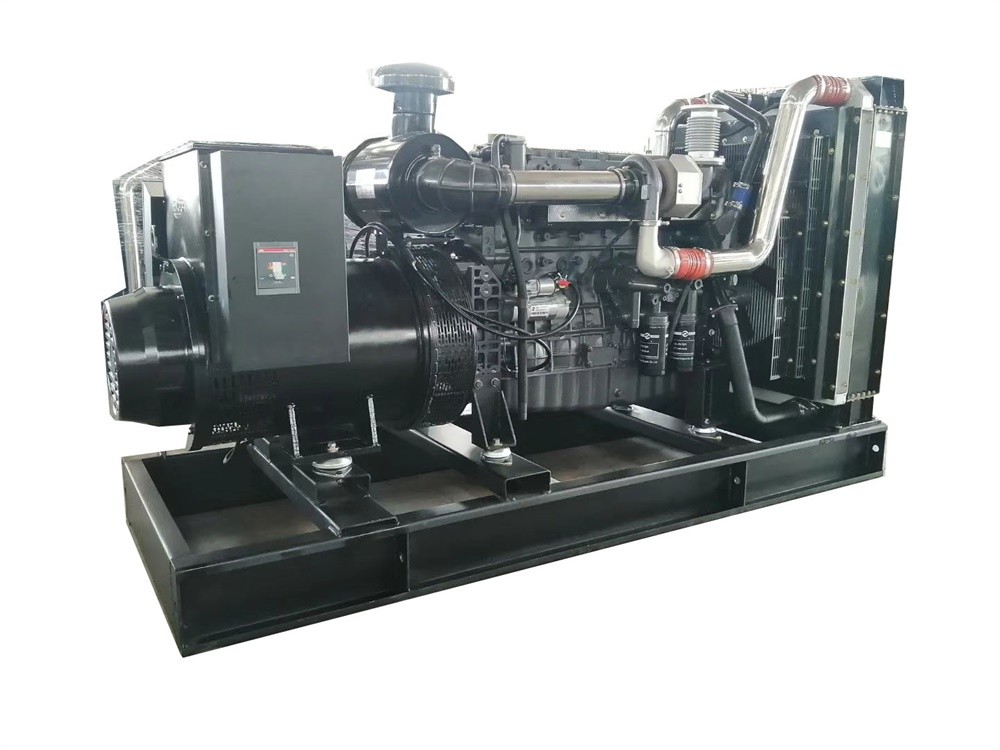

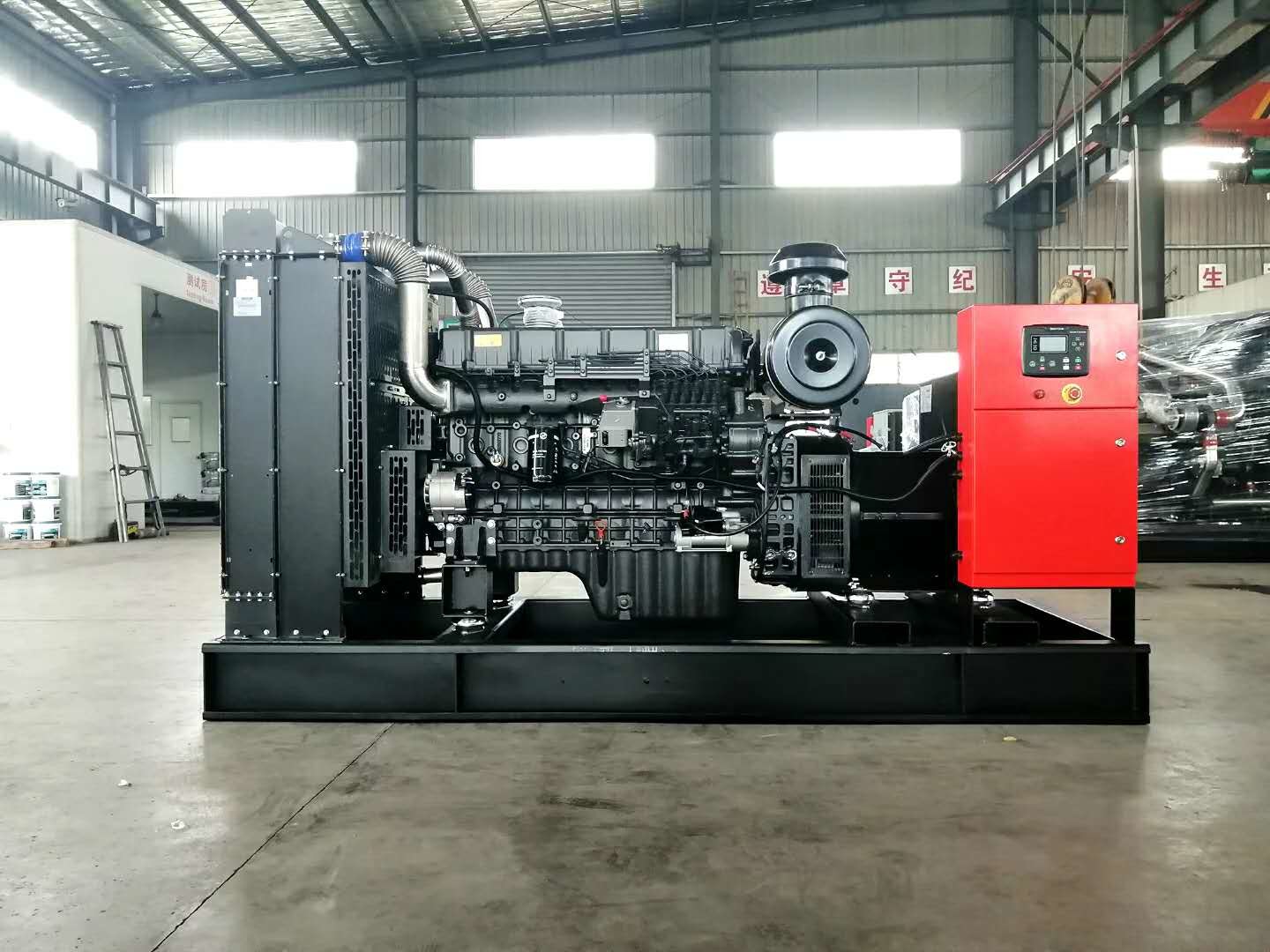

150kVA SDEC SC7H205D2 China Generating Set 120kW Continuous Power Generators Price
Configuration Spec.
1) Powered by brand new original Water cooled SDEC diesel engine (Origin SDEC Engine).
2) Brand new STAMFORD, LEROY SOMER or TECGEN single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or CHNT branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with Flexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & Smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
150kVA SDEC Back-up Genset TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG165SD | TG165SDS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 208.7A | |
| Prime Power | 120kW / 150kVA | |
| Standby Power | 132kW / 165kVA | |
| Engine Model | SDEC SC7H205D2 | |
| Alternator Model | TGI274S120 | |
| Controller | Smartgen HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 2100 | 2800 |
| width (mm) | 1000 | 1100 |
| Height (mm) | 1300 | 1600 |
| Weight (kgs) | 1600 | 2250 |
| Engine Specification | ||
| Brand | SDEC | |
| Engine Model | SC7H205D2 | |
| Prime power (kw) | 138 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 124 | |
| Displacement (L) | 6.5 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 6.8 | |
| Coolant Capacity ( In radiator) | 6.8 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 32.1 | |
| 75% Load (L/h) | 24.1 | |
| 50% Load (L/h) | 16.0 | |
| 25% Load (L/h) | 8.0 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S120 | |
| Rate Output (kVA) | 150 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Production Information
SDEC series generator sets choose SDEC diesel engines assembled with TECGEN (Copy Stamford Alternator) or other famous brand alternators like Stamford, Leroy Somer, Mecc Alte, and adopt intelligent liquid crystal display control system (Smartgen Genset Controller). Its have the advantages of small size, light weight, low fuel consumption, high power reserve, reliable operation, superior spare parts supply and convenient maintenance. The Power range from 10kVA to 1000kVA as 24-hour uninterrupted power or standby, emergency power station.
FAQ
1. What is your warranty period?
One and a half year or 1500 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
2. Does your diesel generator have a global warranty?
Yes, most of our products like Cummins and Perkins power generators enjoy the global warranty service. And the alternators we use like Leroy Somer, and Stamford Marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
3. Can you accept OEM?
Yes. we can accept OEM for the genset you order.
4. What are your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight L/C deferred payment terms or West union.
5. What is your delivery time?
Our normal delivery time is about 5-10 days. But if your order is some special engine and alternator, then the delivery time is longer.
