Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
| Place of Origin | China |
|---|---|
| Brand Name | Cummins |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG30C |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Namee | Cummins Diesel Generator | Genset Type | Open Or Silent |
|---|---|---|---|
| Engine Brand | Cummins | Alternator Brand | Stamford/Leroy Somer/Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Cooling Method | Water Cooling | Ambient Temp | ≤40 C |
| Conditions Of Use | Land Use | Genset Color | Color Is Optional |
| Highlight | Stamford Cummins Diesel Generators,Cummins Diesel Generators 50HZ,30kVA cummins 24kw generator |
||
Product Description

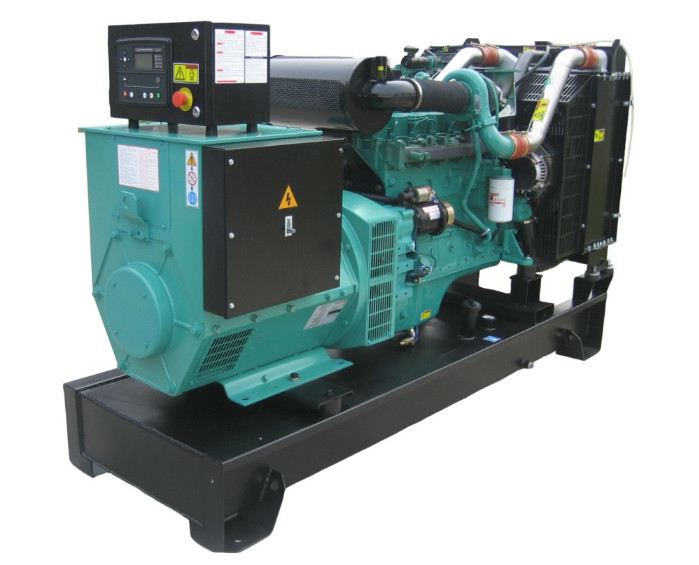

Global Warranty Cummins Stamford Power Genset 50HZ 380V 30kVA 24kW Cummins Diesel Generator Set
Standby Output: 30kVA/24kW
Prime Output: 28kVA/22kW
1) Powered by brand new original Cummins water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or TECGEN single bearing 3 phase alternator with IP23 and H insulation class.

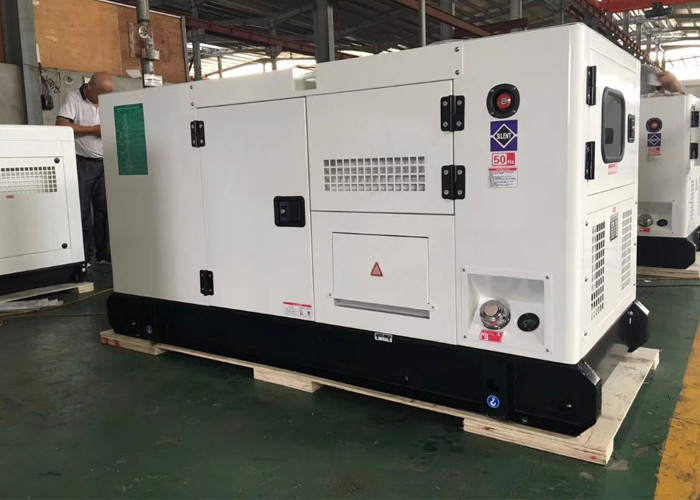

Canopy
· All canopy designed with modular principles
· All metal canopy parts painted by electrostatic polyester power paint
· Soundproof design ensure that the noise level be controlled in small scope
· Convenient to lift and move
· Easy to maintenance and operate
Base Frame
· Base frame including position for forklift and crane
· Integral fuel tank
· Daily fuel tank continuously supply for 8-24 hours
· Fuel tank easy to maintain and clean
· Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
· High water temperature
· Low oil pressure
· Over and under speed
· Over current
· Under/Over generator voltage
· Start and stop failure
· Low and high battery voltage
· Charge fail
· Emergency stop
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG30C |
| Prime Power | 28kVA/22kW | |
| Standby Power | 30kVA/24kW | |
| Frequency | 50Hz | |
| Rated Voltage | 380V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 4B3.9-G1 | |
| Alternator Brand | Stamford | |
| Alternator Model | PI 144F | |
| Engine General Data | Max Output (kW) | 27 |
| Cyl / Arrangement | 4L | |
| Displacement (L) | 3.9 | |
| Air Intake way | Natural | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 16.5:1 | |
| Speed Governor | Mechanical | |
| Fuel Consumption at 100% load(L/H) | 6.7 | |
| Alternator Data | Model | TGI184S-22 |
| Brand | Tecgen Stamford | |
| Rate Output | 27kVA/22kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Optional brand | Leroy Somer, Marathon and Chinese brand Brushless Alternator | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, ComAp | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
