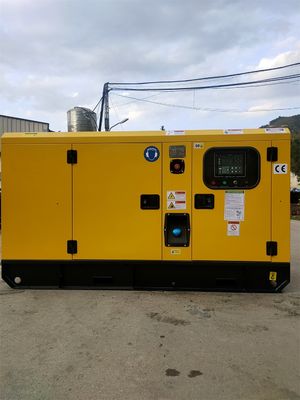

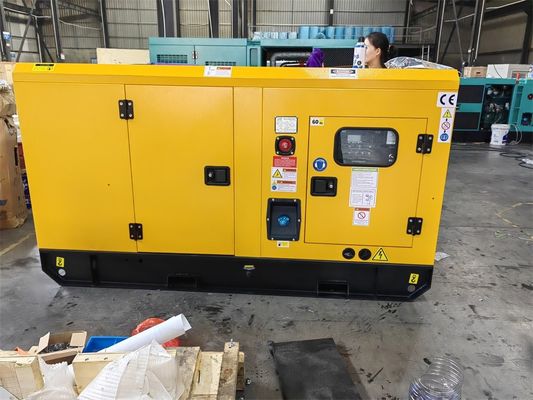

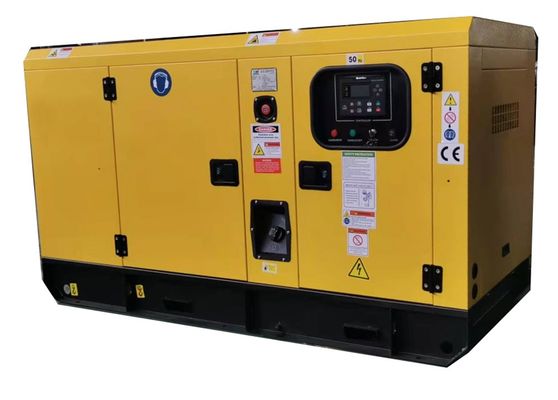

Yuchai 40kVA Silent Type Diesel Generator Three Phase 32kW Quiet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Yuchai Diesel Generator | Usage | Back-up Generator |
|---|---|---|---|
| Cooling Method | Water Cooled | Frequency | 50Hz |
| Voltage | 220V/230V/380V/400V/440V | Engine Brand | Yuchai |
| Engine Model | YC4D60-D25 | Alternator Model | TGI184S32 |
| Controller | Mebay DC52D | Delivery Time | 10 Working Days |
| Highlight | 40kVA Silent Type Diesel Generator,Yuchai Silent Type Diesel Generator,32kW silent type generator |
||
Product Description
Yuchai 40kVA Silent Type Diesel Generator Three Phase 32kW Yuchai Diesel Generator Quiet Generator
Standard Configuration of 32kW Yuchai Silent Type Diesel Generator
1. Powered by Yuchai engine
2. Tecgen alternator (Stamford, Meccalte for option)
3. Smartgen HGM 6120N control panel as standard, AMF Control Panel Deepsea DSE7320 & ComAp AMF20 for Option, ATS for Option
4) CHNT breaker as standard, ABB, Schneider Breaker for Option
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime without based fuel tank)
6) Anti-Vibration Mounted System
7) Maintenance-free Battery and charged battery
8) Industrial silencer and flexible exhaust hose
For open type, the genset will be much easier to maintain and repair with more durable performance and longer service life
More technical datas
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 Standard
Prime output power: 8KVA - 3000 KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
32kW Yuchai SILENT DIESEL GENEREATOR SPECIFICATIONS
| Technical Specification: | ||
| 32kW Yuchai Generator Set Specification | ||
| Genset Model | TG44YC | TG44YCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 55.6A | |
| Prime Power | 32kW / 40kVA | |
| Standby Power | 35kW / 44kVA | |
| Engine Model | Yuchai YC4D60-D25 | |
| Alternator Model | TGI184S32 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 870 | 1230 |
| Engine Specification | ||
| Brand | Yuchai | |
| Engine Model | YC4D60-D25 | |
| Prime power (kw) | 40 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 118 | |
| Displacement (L) | 3.86 | |
| Cooling | water | |
| Compression Ratio | 17.5:1 | |
| Engine Oil capacity (L) | 6.7 | |
| Coolant Capacity ( In radiator) | 6.7 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 7.8 | |
| 75% Load (L/h) | 5.9 | |
| 50% Load (L/h) | 3.9 | |
| 25% Load (L/h) | 2.0 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S32 | |
| Rate Output (kVA) | 40 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
40kVA Yuchai Diesel Engine driven Generator
Rated Power : 32kW / 40kVA
Frequency :50/60HZ
Speed :1500/1800rpm
Phase :3phase ; 1phase
Voltage: 110V - 460V
Fuel tank : 8 hours
Noise level : below 80dB(A)@7m
Environmental temperature : -5ºC ~ 50ºC
Water tank :50ºC environmental protection water tank
Diesel engine :Diesel , four stroke , water cooling
Alternator : brushless alternator /Marathon/Stamford
Controller : Smartgen / Deepsea / ComAp
Leading time: Normal 10 Working days
Starting method : Manual or electronic , adjustable
Package : Plastic warpping film or polywooeden
Export port : Fuzhou / Ningbo / Guangzhou / Shanghai / Qingdao Port
Optional parts : ATS ,water heater , fuel heater...
* Anti-vibration mountings on skid;
* Electrical start system with maintain free battery & engine driven battery charger;
* Residence silencer with flexible connections & elbow;
* Full set of Test report, drawings & manuals include.
FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our warranty terms is 1.5 year or 1500 running hours whichever comes first.
But based on some special project, we can extended our warranty period.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.
Question: What's your delivery time?
Answer: Our normal delivery time is 7 - 15 working days.
But if your order is some special engine and alternator, then the delivery time is longer.
Question: What's the MOQ?
Answer: 1 Set
