ATS Equipped Silent Power Generators By DCEC Water Cooled Diesel Engine Emergency Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rate Output Genset | 400kVA | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Phase | 3 Phase / 4 Wire | Alternator Brand | Leroy Somer / Stamford / Tecgen |
| Equipment Options | ATS, Water Heater, Engine Heater, PMG, Remote Control | Cooling System | Water-cooled |
| Colors | RAL Standard Or Customed Colors | Noise Level | 70dB(A)@7m |
| Highlight | ATS Equipped Silent Power Generators,400kVA Silent Power Generators,Water Cooled quiet emergency generator |
||
Product Description

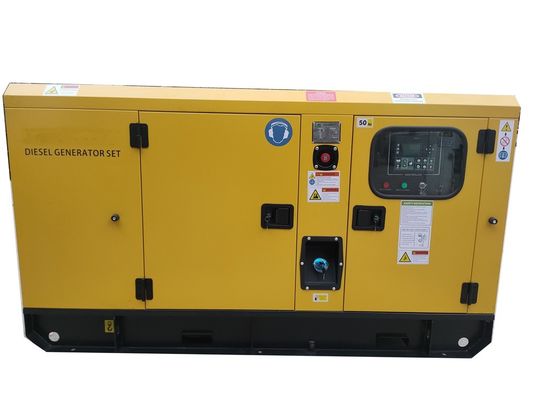

ATS-equipped Silent Power Generators by DCEC water cooled diesel engine emergency use
Product Description:
Silent Power Generators are ideal noiseless power solutions for industrial use. Our generators provide quiet, hassle-free operation, with noise levels of only 70dB(A)@7m. Alternator brands like Leroy Somer, Stamford and Tecgen are available. Our generators are available in 3 phase/4 wire and come in either RAL standard or custom colors. Plus, they come with a range of equipment options including ATS, water heater, engine heater, PMG and remote control.
Our quiet DG generators are the perfect choice for applications that demand noiseless power. If you are looking for reliable power in an industrial setting, Silent Power Generators are the ideal choice.
Features:
- Super Silent Genset: Silent Power Generators
- Genset Type: Silent DG Genset
- Frequency: 60Hz / 1800rpm
- Phase: 3 Phase / 4 Wire
- Cooling System: Water-cooled
- Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
- Soundproof DG Genset: Yes
- Generator Set Quiet: Yes
Technical Parameters:
| Technical Specification: | ||||
| 250kW Silent DG Generator Set Specification | ||||
| Genset Model | TG313CD6 | TG313CSD6 | TG313CD6 | TG313CSD6 |
| Open | Silent | Open | Silent | |
| Frequency | 60Hz | |||
| Rate Speed | 1800RPM | |||
| Voltage | 220/127V | |||
| Phase | 3 Phase, Four Wires | |||
| Rate Current (A) | 821.4 | |||
| Prime Power | 250kW / 313kVA | 250kW / 313kVA | ||
| Standby Power | 275kW / 344kVA | 275kW / 344kVA | ||
| Engine Model | 6LTAA9.5G1 | NTA855-G1 | ||
| Alternator Model | TGI314S250 | TGI314S250 | ||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 528L | 560L | ||
| Weight And Dimensions | ||||
| Length (mm) | 2700 | 3600 | 3000 | 3800 |
| width (mm) | 1100 | 1250 | 1150 | 1430 |
| Height (mm) | 1650 | 1850 | 1870 | 2130 |
| Weight (kgs) | 2150 | 3000 | 3350 | 4020 |
| Engine Specification | ||||
| Engine Brand | DCEC Cummins | CCEC Cummins | ||
| Engine Model | 6LTAA9.5G1 | NTA855-G1 | ||
| Prime/Standby power | 280kW / 310kW | 287kW / 317kW | ||
| Injection | Indirect | |||
| Aspiration | Turbocharged & Charge Air Cooled | Turbocharged& Aftercooled | ||
| No. of cylinders | 6 | 6 | ||
| Speed | 1800RPM | |||
| Bore of Stroke (mm) | 114 x 145 | 140 x 152 | ||
| Displacement (L) | 9.5 | 14 | ||
| Cooling | water | |||
| Compression Ratio | 18:1 | 14.5:1 | ||
| Engine Oil capacity (L) | 20.8 | |||
| Coolant Capacity ( In radiator) | 20.8 | |||
| Governor | Electric | |||
| Air Filter | Dry Element | |||
| Fuel consumption | @ 60Hz | @ 60Hz | ||
| 100% Load (L/h) | 65.5 | 70.0 | ||
| 75% Load (L/h) | 49.1 | 50.2 | ||
| 50% Load (L/h) | 32.7 | 33.5 | ||
| 25% Load (L/h) | 16.4 | 16.7 | ||
| Alternator Specification | ||||
| Brand | Tecgen | |||
| Model | TGI314S250 | |||
| Rate Output (kVA) | 313 | |||
| Speed | 1800RPM | |||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Applications:
Silent DG Genset, with model number TG313CSD6, is an ideal industrial solution for those looking for a generator set that is quiet and powerful. It has been certified with ISO, CE, SASO and CIQ and has a minimum order quantity of one unit. The price is negotiable and the packaging is a plastic film package in container. It has a delivery time of 15 working days and payment terms of T/T or L/C. With a supply ability of 300 units per month, it is a reliable and stable source of power. The brand of alternator is Leroy Somer, Stamford or Tecgen with a rate output genset of 250kW / 313kVA. It is a water-cooled system and has noise level of 70dB(A)@7m. The engine brand is Cummins. Silent DG Genset is the perfect solution for those seeking a quieted power generator to meet their industrial needs.
Customization:
Silent Power Generators
Brand Name: Silent DG Genset
Model Number: TG313CSD6
Place of Origin: CHINA
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 15 Working Days
Payment Terms: T/T or L/C
Supply Ability: 300 Units Per Month
Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
Genset Type: Silent DG Genset
Colors: RAL Standard Or Customed Colors
Cooling System: Water-cooled
Rate Output Genset: 250kW / 313kVA
Standby Output Genset: 275kW / 344kVA
Our Silent Power Generators are the perfect emergency generators for commercial and industrial applications. They are quiet, soundproof DG Genset with multiple options for customization.
Packing and Shipping:
Packaging and Shipping for Silent Power Generators
The Silent Power Generators are packaged and shipped using the following processes:
- The generators are carefully packed in heavy-duty cardboard boxes
- The boxes are further wrapped in thick bubble wrap and secured with tape
- The packages are labeled with the name and address of the recipient
- The packages are shipped via a reliable courier service
- The tracking numbers are provided to the customer for tracking their package
FAQ:
Q1:What is the brand name of Silent DG Genset?
A1:The brand name of Silent DG Genset is Silent DG Genset.
Q2:What is the model number of Silent DG Genset?
A2:The model number of Silent DG Genset is TG313CSD6.
Q3:Where is Silent DG Genset manufactured?
A3:Silent DG Genset is manufactured in China.
Q4:What is the minimum order quantity of Silent DG Genset?
A4:The minimum order quantity of Silent DG Genset is 1 unit.
Q5:What certifications do Silent DG Genset have?
A5:Silent DG Genset have ISO / CE / SASO / CIQ certifications.
