75kW Silent DG Set Soundproof Type DCEC Engine Couple With AC Alternator 94kVA Prime
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent DG Genset | Engine Brand | Cummins |
|---|---|---|---|
| Alternator Brand | Leroy Somer / Stamford / Tecgen | Cooling System | Water-cooled |
| Rate Output Genset | 75kW / 94kVA | Phase | 3 Phase / 4 Wire |
| Noise Level | 70dB(A)@7m | Equipment Options | ATS, Water Heater, Engine Heater, PMG, Remote Control |
| Highlight | 75kW Silent DG Set,Soundproof Silent DG Set,94kVA electric silent generator |
||
Product Description

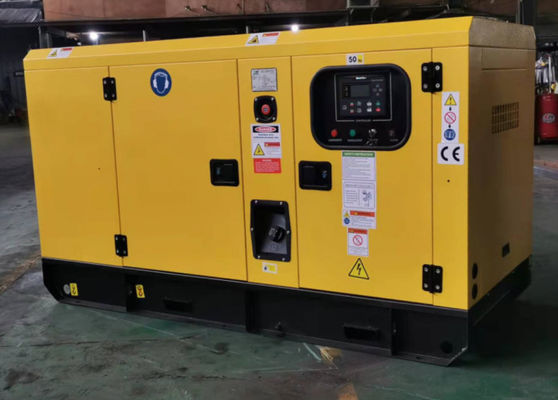

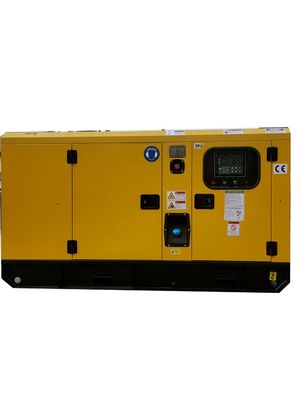

75kW Silent DG set soundproof type DCEC engine couple with AC Alternator 94kVA Prime
Product Description:
Silent Power Generators provide super silent and reliable power in emergency situations. With frequency of 50Hz and 1500rpm, the genset type is a silent DG set, rate output 94kVA, featuring brand alternators from Leroy Somer, Stamford and Tecgen, and engine brand Cummins. This Emergency Generator Set is the ideal power solution for both residential and commercial customers who need to ensure that their power supply is reliable and uninterrupted.
Features:
- Product Name: Silent Power Generators
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Colors: RAL Standard Or Customed Colors
- Engine Brand: Cummins
- Frequency: 50Hz / 1500rpm
- Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
- Soundproof DG Genset
- Super Silent Genset
- Quiet DG Generators
Technical Parameters:
| Technical Specification: | ||||
| 75kW Silent DG Genset Specifications | ||||
| Genset Model | TG103C | TG103CS | TG103C | TG103CS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 400/230V | |||
| Phase | 3 | |||
| Rate Current (A) | 135.7 | |||
| Prime Power (KW/KVA) | 75 / 94 | 75 / 94 | ||
| Standby Power(KW/KVA | 83 / 103 | 83 / 103 | ||
| Engine Model | 6BT5.9-G1 | 6BT5.9-G2 | ||
| Alternator Model | TGI274S75 | TGI274S75 | ||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 176L | |||
| Weight And Dimensions | ||||
| Length (mm) | 2240 | 2700 | 2240 | 2700 |
| width (mm) | 900 | 1020 | 900 | 1020 |
| Height (mm) | 1400 | 1530 | 1400 | 1530 |
| Weight (kgs) | 1125 | 1790 | 1125 | 1790 |
| Engine Specification | ||||
| Engine Model | 6BT5.9-G1 | 6BT5.9-G2 | ||
| Prime/Standby power (kw) | 86 / 92 | |||
| Injection | Indirect | |||
| Aspiration | Turbocharged | |||
| No. of cylinders | 6 | |||
| Bore of Stroke (mm) | 102x120 | |||
| Displacement (L) | 5.9 | |||
| Cooling | water | |||
| Compression Ratio | 17.3:1 | |||
| Engine Oil capacity (L) | 7.9 | |||
| Coolant Capacity ( In radiator) | 7.9 | |||
| Governor | Mechanical | Electric | ||
| Air Filter | Dry Element | Dry Element | ||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 21.7 | 22 | ||
| 75% Load (L/h) | 16.3 | 17 | ||
| 50% Load (L/h) | 11.5 | 11 | ||
| 25% Load (L/h) | 6.6 | 6 | ||
| Alternator Specification | ||||
| Brand | Tecgen | |||
| Model | TGI274S75 | |||
| Rate Output (kVA) | 94 | |||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Applications:
The Quieted Power Generators with brand name Silent DG Genset and model number TG103CS is a perfect solution for customers who looks for soundproof DG Genset with noiseless power generators. The product is certified with ISO / CE / SASO / CIQ, and minimum order quantity is 1 Unit. Price is negotiable. The package of the product is plastic film package in container. Delivery time is 15 Working Days. The payment terms are T/T or L/C. We can provide 300 Units Per Month. The engine brand is Cummins, and the cooling system is Water-cooled. The rate output genset is 75kW / 94kVA, and there are equipment options such as ATS, Water Heater, Engine Heater, PMG, Remote Control. The noise level is 70dB(A)@7m. It is an ideal option for customers who are looking for quiet power generators.
Customization:
Customized Service of Silent Power Generators
The Silent DG Genset with model number TG103CS is highly suitable for industrial use, enabling noiseless and quieted power generation. It is certified with ISO / CE / SASO / CIQ and the minimum order quantity is 1 unit. The price is negotiable and the packaging details are plastic film package in container. The delivery time is 15 working days and the payment terms are T/T or L/C. The supply ability is 300 units per month. The colors available are RAL standard or customized colors. The engine brand is Cummins and the alternator brands are Leroy Somer, Stamford and Tecgen. The frequency is 50Hz/1500rpm and the noise level is 70dB(A)@7m.
Packing and Shipping:
Packaging and Shipping
Silent Power Generators are packaged in sturdy cardboard boxes with protective foam inserts. The box size is appropriate for the unit size and weight for secure shipping. Before shipment, the generator is carefully inspected to ensure its quality and performance.
The shipping process begins with the generator being placed on a pallet, covered with shrink wrap, and secured with straps. The pallet is then loaded onto a truck or trailer for delivery. We offer shipping services to customers in the continental United States and Canada.
FAQ:
Q1: What is the brand name of Silent DG Genset?
A: The brand name of Silent DG Genset is Silent DG Genset.
Q2: What is the model number of Silent DG Genset?
A: The model number of Silent DG Genset is TG103CS.
Q3: Where is Silent DG Genset made?
A: Silent DG Genset is made in China.
Q4: What certifications does Silent DG Genset have?
A: Silent DG Genset has ISO / CE / SASO / CIQ certifications.
Q5: What is the minimum order quantity for Silent DG Genset?
A: The minimum order quantity for Silent DG Genset is 1 Unit.
