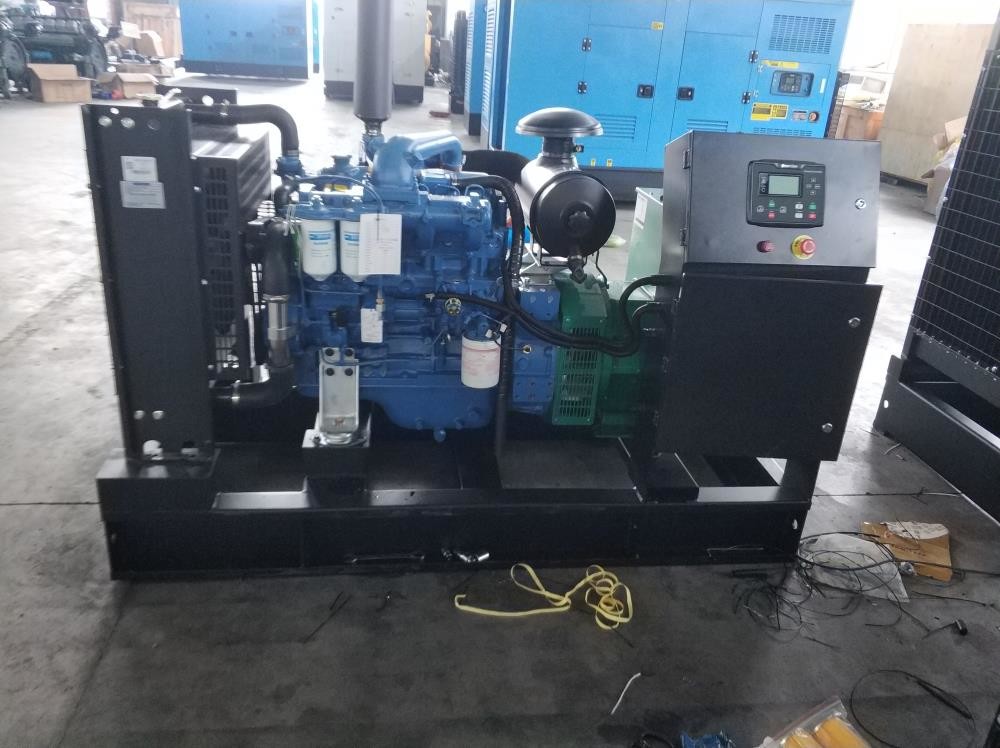

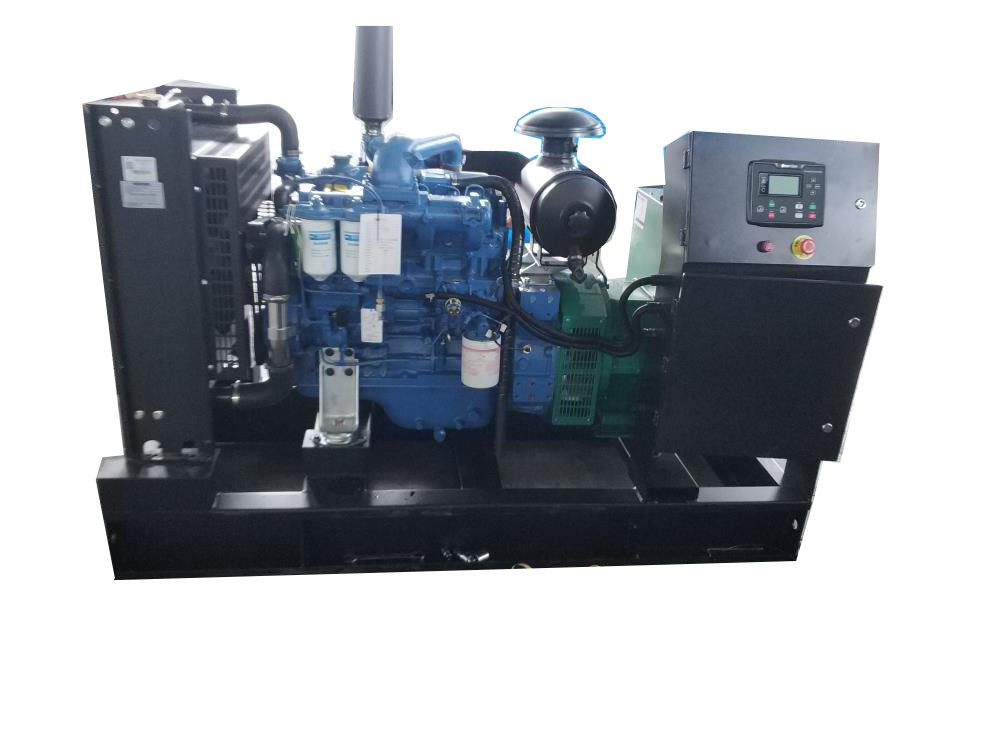

35kW Yuchai Power Generator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Yuchai DG Set |
| Certification | ISO / CE / SASO / CIQ / CO |
| Model Number | TG44YC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 9 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Trademark | TECGEN POWER | Starting System | Electric/Manual |
|---|---|---|---|
| Voltage | 380V/400V/415V/440V/480V | Frequency | 50Hz |
| Standby Power | 35KW | Warranty | 1500 Running Hours |
| Control System | Automatic/Manual | Engine Brand | Yuchai Engine |
| Highlight | 35kW yuchai power generator,480V yuchai power generator,50Hz yuchai genset |
||
Product Description
Standby output 35kW power generator set with Automatic Control System and Electric Starting System
Product Description:
Yuchai Electric Diesel Generators are an ideal choice for standby, backup or emergency use, powered by a reliable and durable Yuchai engine. Our diesel generator sets provide customers with a reliable power solution for all their needs. They are designed to meet the highest quality standards and are offered with a warranty of up to 1500 running hours. Our generators are available in a variety of frequencies, including 50Hz, and are equipped with a fully automated or manual control system. As a leading China Diesel Generator manufacturer, we are committed to providing our customers with the best diesel generator sets and the highest level of service.
Features:
- Product Name: Yuchai Diesel Generator
- Control System: Automatic/Manual
- Frequency: 50Hz
- Voltage: 380V/400V/415V/440V/480V
- Engine Brand: Yuchai Engine
- Output Type: AC Three Phase
- DG Diesel Generator from China
- China Diesel Engine Generator
- Diesel Power Generator Set
- High Quality Yuchai Diesel Generator
Technical Parameters:
| Technical Specification: | ||
| Diesel DG 32kW Genset Specification | ||
| Genset Model | TG44YC | TG44YCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 55.6A | |
| Prime Power | 32kW / 40kVA | |
| Standby Power | 35kW / 44kVA | |
| Engine Model | Yuchai YC4D60-D25 | |
| Alternator Model | TGI184S32 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1780 | 2200 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 930 | 1270 |
| Engine Specification | ||
| Brand | Yuchai | |
| Engine Model | YC4D60-D25 | |
| Prime power (kw) | 40kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Aftercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 118 | |
| Displacement (L) | 3.386 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 4.3 | |
| Coolant Capacity ( In radiator) | 4.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 8.8 | |
| 75% Load (L/h) | 6.6 | |
| 50% Load (L/h) | 4.4 | |
| 25% Load (L/h) | 2.2 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S32 | |
| Rate Output | 40kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Yuchai DG Set TG44YC industrial diesel generator is an excellent choice for emergency power supply. It is equipped with Yuchai engine, which has high reliability and durability. This generator is designed to meet the needs of various industries and has obtained ISO/CE/SASO/CIQ/CO certification. It also has a minimum order quantity of 1 SET and its price is negotiable. Its packaging details include plastic film package or polywooden package. Tecgen Yuchai DG Set TG44YC generator set diesel engine has a standby power of 35KW and voltage of 380V/400V/415V/440V/480V, and it is available in automatic or manual control system. It is able to deliver within 9 working days and has a supply ability of 400 units per month. This reliable generator set is suitable for various industrial applications such as industrial diesel generators, power generator, and generator set diesel engine.
Customization:
Tecgen Yuchai DG Set is a Diesel Generator powered by Yuchai Engine, including standby, backup, and emergency use with Electric/Manual starting system and Automatic/Manual control system. We offer the DG Power Generator in Fuzhou, China with ISO / CE / SASO / CIQ / CO certification. The minimum order quantity for this DG Power Generator is 1 SET and the price is negotiable. We package the product in Plastic film package or Polywooden Package and offer delivery within 9 Working Days. We accept T/T / L/C as payment terms and can supply up to 400 Units Per Month.
If you are looking for a quality DG Power Generator from China, Tecgen Yuchai DG Set is the right choice for you!
Packing and Shipping:
Packaging and Shipping for Yuchai Diesel Generator
Yuchai diesel generators are packaged with a secure and robust packaging material. The packaging is designed for safe transport and to ensure the generator arrives in perfect condition. The packaging material is made of cardboard, wood, and other materials.
The shipping process starts with the generator being carefully placed inside the packaging material. The packaging is then sealed and labeled with the information needed for shipping. The generator is then loaded onto a truck or ship and transported to the destination.
Once the generator arrives at its destination, it is carefully unloaded and inspected. The generator is then tested to make sure it is in perfect working order. After the generator passes all tests, it is then ready for installation.
