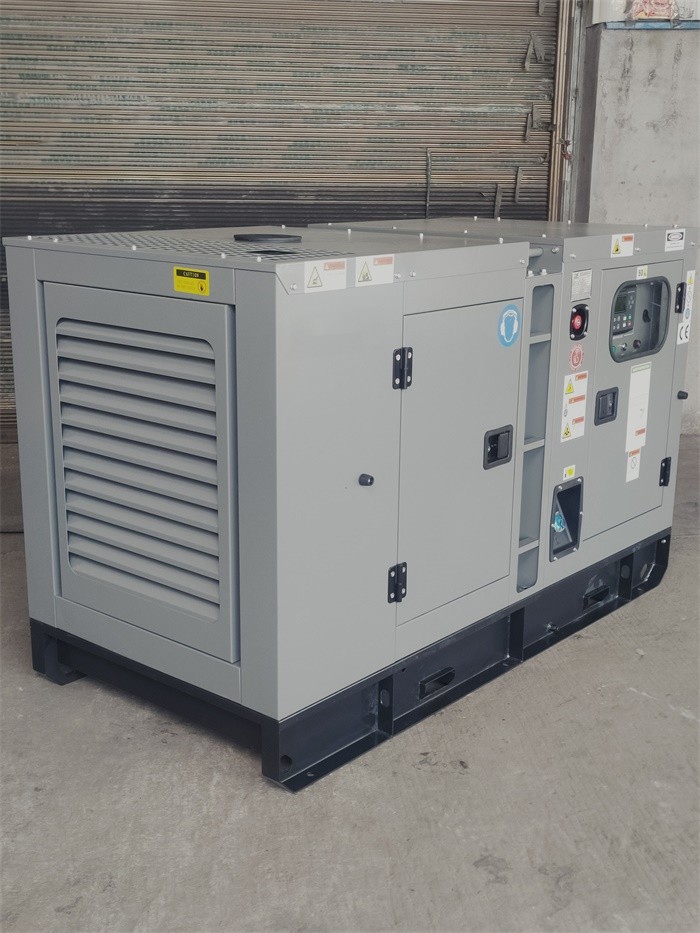

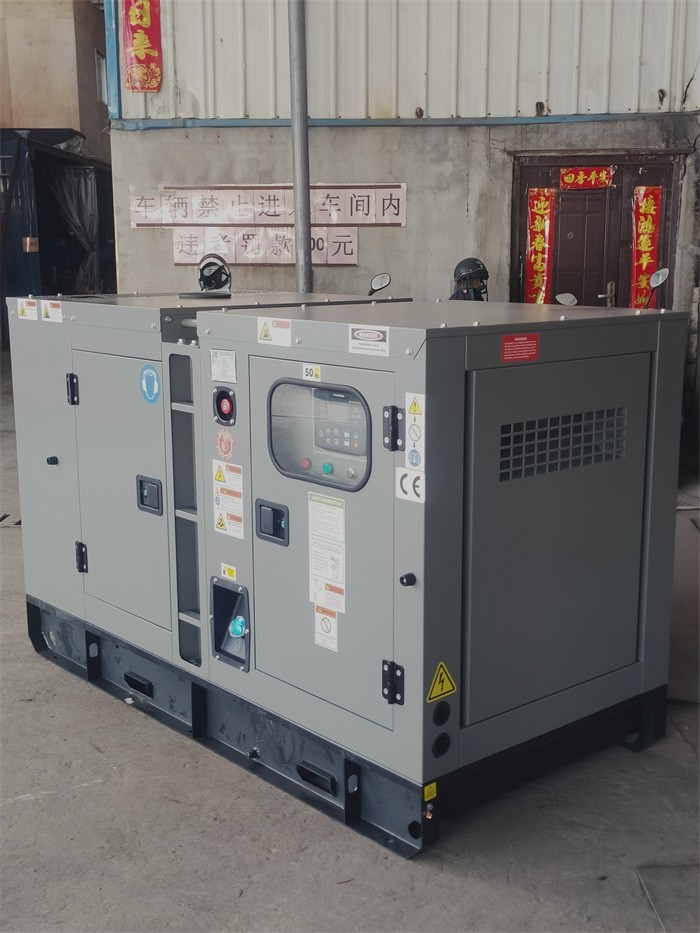

Silent Water Cooled Diesel Generator Manual Start For Reliable Power
| Place of Origin | China |
|---|---|
| Brand Name | Yangdong generator |
| Certification | ISO / CE / SASO / CIQ / CO |
| Model Number | TG69YDS & TG83YDS |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 7 working days after received deposit |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Water Cooled | Brand | Yangdong |
|---|---|---|---|
| Rated Voltage | 220, 230, 240, 380, 400, 415V | Control System | Automatic/Manual |
| Options | ATS, Super Silent Type, Trailer Mounted | Rated Frequency | 50Hz |
| Power | 9-83kVA | Starting System | Manual |
| Highlight | Silent water cooled diesel generator,water cooled diesel generator Manual Start,83kVA water cooled standby generator |
||
Product Description
Product Description:
Yangdong Genset is a type of diesel generator that provides silent, reliable AC power in a range of rated voltages from 220, 230, 240, 380, 400 to 415 volts. It is a powerful and efficient generator that has been designed to meet the highest standards of quality. It is also available in various options including ATS, Super Silent Type, and Trailer Mounted. This brand of generator is suitable for all power needs, ranging from 9 to 83 kVA and rated frequency of 50 Hz. Yangdong Genset is a silent generator, AC electric generator, and diesel genset that offers superior performance and reliability. It is an ideal power solution for various applications.
Features:
- Product Name: Yangdong Genset
- Power: 50kW & 60kW
- Starting System: Manual
- Brand: Yangdong
- Control System: Automatic/Manual
- Cooling System: Water Cooled
- Features: Soundproof Generator, Diesel Generating Set
Technical Parameters:
| Technical Specification: | ||||
| 50kW & 60kW Soundproof DG Diesel Generator Specification | ||||
| Genset Model | TG69YD | TG69YDS | TG83YD | TG83YDS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 415/240V | |||
| Phase | 3 | |||
| Rate Current (A) | 115.0 | 136.9 | ||
| Prime Power | 50kW / 63kVA | 60kW / 75kVA | ||
| Standby Power | 55kW / 69kVA | 66kW / 83kVA | ||
| Engine Model | YD4EZLD | Y4110ZLD | ||
| Alternator Model | TGI224S50 | TGI224S60 | ||
| Controller | Mebay DC52D | |||
| Fuel Tank Capacity | 130L | 160L | ||
| Weight And Dimensions | ||||
| Length (mm) | 1750 | 2350 | 1750 | 2350 |
| Width (mm) | 850 | 950 | 850 | 950 |
| Height (mm) | 1100 | 1300 | 1100 | 1300 |
| Weight (kgs) | 1200 | 1700 | 1300 | 1800 |
| Engine Specification | ||||
| Engine Model | YD4EZLD | Y4110ZLD | ||
| Prime (kW) | 63 | 80 | ||
| Injection | Indirect | Indirect | ||
| Aspiration | Turbocharged & Intercooled | Turbocharged & Intercooled | ||
| No. of cylinders | 4 | 4 | ||
| Bore of Stroke (mm) | 105 x 118 | 110 x 118 | ||
| Displacement (L) | 4.1 | 4.4 | ||
| Cooling | water | water | ||
| Compression Ratio | 18:1 | 18:1 | ||
| Engine Oil capacity (L) | 6.3 | 6.3 | ||
| Coolant Capacity ( In radiator) | 6.3 | 6.3 | ||
| Governor | Electric | Electric | ||
| Air Filter | Dry Element | Dry Element | ||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 13.1 | 15.7 | ||
| 75% Load (L/h) | 9.8 | 11.8 | ||
| 50% Load (L/h) | 6.5 | 7.9 | ||
| 25% Load (L/h) | 3.3 | 3.9 | ||
| Alternator Specification | ||||
| Brand | Tecgen | Tecgen | ||
| Model | TGI224S50 | TGI224S60 | ||
| Rate Output (kW) | 50 | 60 | ||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Mebay | |||
| Model | DC52D | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Applications:
Yangdong generator sets are widely used in various scenarios, such as industrial, commercial, and residential. Featuring a 9-83kVA power range and a 50Hz rated frequency, these soundproof generators are ideal for both commercial and residential applications. The generator sets are also available with either manual or automatic controls, giving customers the freedom to choose the best option for their particular needs. Yangdong generator sets are certified with ISO/CE/SASO/CIQ/CO, and have a minimum order quantity of one unit. Plus, these generators come with a plastic film package or polywooden package for transportation, and a delivery time of seven working days after receiving the deposit. Additional features include competitive prices and a supply capacity of up to 400 units per month. With these features, Yangdong generator sets make the perfect choice for reliable AC electric power generation.
Customization:
Yangdong Genset - Power Generator Set with Fast Delivery & Reliable Quality
Brand Name: Yangdong
Model Number: TG69YDS & TG83YDS
Place of Origin: China
Certification: ISO / CE / SASO / CIQ / CO
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 7 working days after received deposit
Payment Terms: T/T / L/C
Supply Ability: 400 Units per month
Prime Power: 50kW & 60kW
Options: ATS, Super Silent Type, Trailer Mounted
Starting System: Manual
Control System: Automatic/Manual
Brand: Yangdong
Yangdong Genset is designed for reliable power generation. Featuring a soundproof generator, it is a silent generator with excellent noise suppression. With fast delivery and reliable quality, it is perfect for a wide range of applications.
Packing and Shipping:
Yangdong Genset packaging and shipping involves several steps to ensure safe and secure delivery of the product.
First, the genset is inspected to make sure it meets the quality standards. Then the genset is carefully packed in a strong and durable cardboard box using suitable cushioning material. The box is securely sealed and labeled with the shipping address.
The package is then loaded onto a truck or other suitable vehicle for delivery. The vehicle is tracked by GPS to ensure the package reaches its destination safely and on time. Once the package arrives at its destination, the customer is notified of its arrival and can then unpack the genset and begin using it.
FAQ:
Q1: What is the brand of Yangdong generator?
A1: The brand of Yangdong generator is TG69YDS & TG83YDS.
Q2: Where is the place of origin of Yangdong generator?
A2: The place of origin of Yangdong generator is China.
Q3: What are the certifications of Yangdong generator?
A3: The certifications of Yangdong generator are ISO / CE / SASO / CIQ / CO.
Q4: What is the minimum order quantity of Yangdong generator?
A4: The minimum order quantity of Yangdong generator is 1 unit.
Q5: How many units of Yangdong generator can be supplied per month?
A5: The supply ability of Yangdong generator is 400 units per month.
