400V Low Noise Yangdong Generator
| Place of Origin | China |
|---|---|
| Brand Name | Yangdong generator |
| Certification | ISO / CE / SASO / CIQ / CO |
| Model Number | TG44YDS & TG52YDS |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 7 working days after received deposit |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Water Cooled | Brand | Yangdong |
|---|---|---|---|
| Options | ATS, Super Silent Type, Trailer Mounted | Rated Frequency | 50Hz |
| Starting System | Manual | Rated Voltage | 220, 230, 240, 380, 400, 415V |
| Prime Power | 44kVA & 52kVA | Control System | Automatic/Manual |
| Highlight | Low Noise yangdong generator,400V yangdong generator,50Hz yangdong diesel generator |
||
Product Description

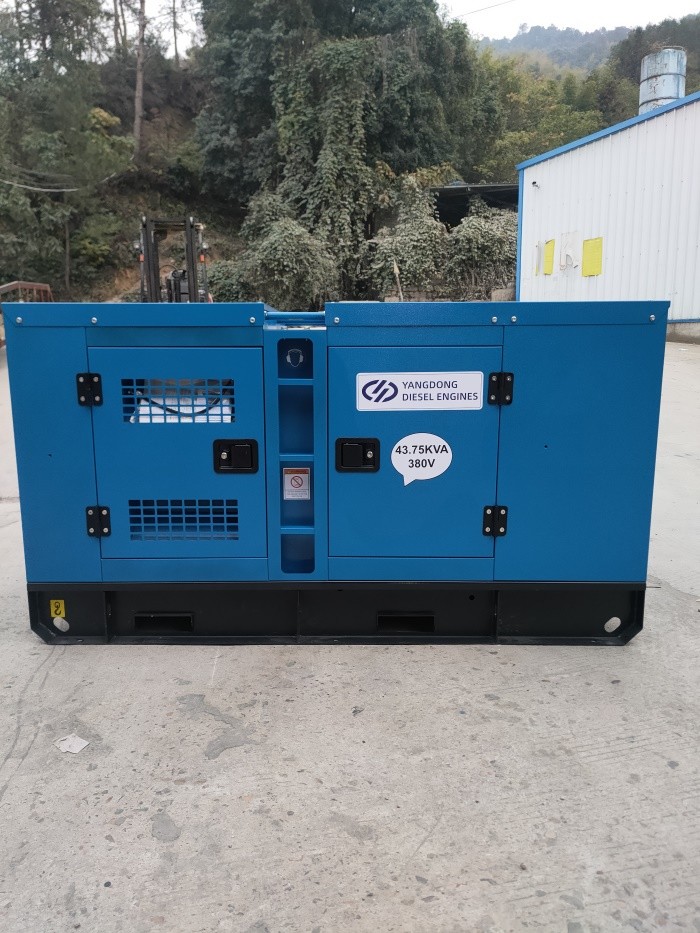

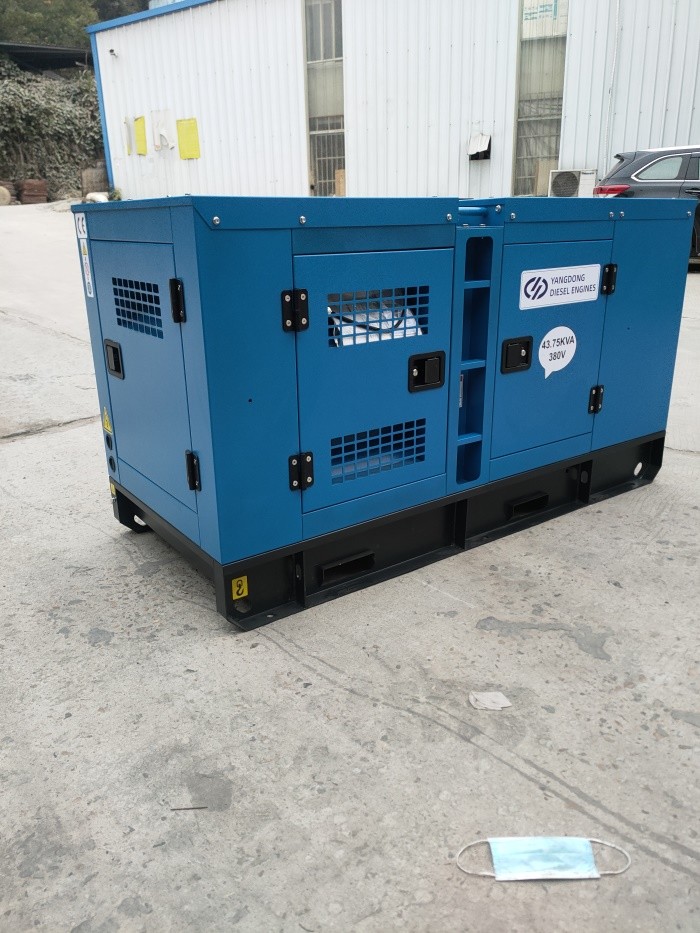

Standby Yangdong diesel generator with Rated Voltage 400V low noise soundproof canopy
Product Description:
Yangdong Genset is a reliable power generator set produced by Yangdong. The genset is designed with a water-cooled cooling system, an automatic/manual control system and a manual starting system. It is capable of producing 50Hz frequency electricity with consistent stability and efficiency. It is a reliable and durable power generator set that can provide stable power for a long time. Yangdong Genset is a great choice for those looking for a high-quality power generator set. It is a great investment for any business, as it is designed to provide reliable and efficient power for a long period of time.
The Yangdong Genset is designed with a water cooling system, which is highly efficient and capable of dissipating heat quickly. The automatic/manual control system allows users to easily set and monitor the generator's power output. With its manual starting system, users can start the generator with ease. The 50Hz rated frequency ensures that the generator can produce a consistent and stable electricity supply. Moreover, the generator set is highly reliable and durable, making it a great choice for any business that needs a dependable and reliable power generator set.
Yangdong Genset is a top-notch power generator set that offers reliable and efficient power supply. It is designed with advanced technology and the latest features, making it a great choice for those looking for a high-quality power generator set. It is a great investment for any business, as it is designed to provide reliable and efficient power for a long period of time.
Features:
- Product Name: Yangdong Genset
- Rated Frequency: 50Hz
- Control System: Automatic/Manual
- Standby Power: 44kVA & 52kVA (35kW & 42kW)
- Brand: Yangdong
- Cooling System: Water Cooled
- Specialty: Diesel Generating Set
- Features: Yangdong Diesel Generator, Yangdong Diesel Generator Set
Technical Parameters:
| Technical Specification: | ||||
| Silent DG 40kVA & 48kVA Generator Set Specification | ||||
| Genset Model | TG44YD | TG44YDS | TG52YD | TG52YDS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 415/240V | |||
| Phase | 3 | |||
| Rate Current (A) | 73.0 | 87.6 | ||
| Prime Power (KW/KVA) | 32 / 40 | 38 / 48 | ||
| Standby Power(KW/KVA) | 35 / 44 | 42 / 52 | ||
| Engine Model | Y4102ZD | Y4102ZLD | ||
| Alternator Model | TGI184S32 | TGI224S38 | ||
| Controller | Mebay DC52D | |||
| Fuel Tank Capacity | 90L | 100L | ||
| Weight And Dimensions | ||||
| Length (mm) | 1500 | 2250 | 1650 | 2250 |
| Width (mm) | 850 | 950 | 850 | 950 |
| Height (mm) | 1100 | 1300 | 1100 | 1300 |
| Weight (kgs) | 1050 | 1550 | 1150 | 1600 |
| Engine Specification | ||||
| Engine Model | Y4102ZD | Y4102ZLD | ||
| Prime (kW) | 43 | 48 | ||
| Injection | Indirect | Indirect | ||
| Aspiration | Turbocharged & Intercooled | Turbocharged & Intercooled | ||
| No. of cylinders | 4 | 4 | ||
| Bore of Stroke (mm) | 102 x 118 | 102 x 118 | ||
| Displacement (L) | 3.875 | 3.875 | ||
| Cooling | water | water | ||
| Compression Ratio | 18:1 | 18:1 | ||
| Engine Oil capacity (L) | 6.3 | 6.3 | ||
| Coolant Capacity ( In radiator) | 6.3 | 6.3 | ||
| Governor | Mechanical | Mechanical | ||
| Air Filter | Dry Element | Dry Element | ||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 8.6 | 10.2 | ||
| 75% Load (L/h) | 6.4 | 7.6 | ||
| 50% Load (L/h) | 4.3 | 5.1 | ||
| 25% Load (L/h) | 2.14 | 2.5 | ||
| Alternator Specification | ||||
| Brand | Tecgen | Tecgen | ||
| Model | TGI184S32 | TGI224S38 | ||
| Rate Output (kW) | 32 | 38 | ||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Mebay | |||
| Model | DC52D | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Applications:
Yangdong Genset is a soundproof generator with a diesel generating set, Model Number TG44YDS & TG52YDS, produced in China and certified by ISO / CE / SASO / CIQ / CO. It is available in a minimum order of one unit and the price is negotiable. It has a manual starting system and rated voltages of 220, 230, 240, 380, 400, and 415V. Yangdong Genset is equipped with a water cooling system and an automatic/manual control system. It is packaged with either plastic film or polywooden packages for delivery within 7 working days after receiving the deposit, and the supply ability is 400 units per month.
Customization:
Yangdong Genset
Yangdong Genset is a silent diesel generator set with excellent power generating capabilities. It is a reliable and trusted brand from China and comes with certification from ISO, CE, SASO, CIQ and CO. The model number of this generator is TG44YDS & TG52YDS. Yangdong Genset is available in various rated voltages such as 220, 230, 240, 380, 400 and 415V, and rated frequency of 50Hz. Power range of this generator set is 9-83kVA.
Minimum order quantity for this generator set is 1 unit, and price is negotiable. Packaging details include plastic film package or polywooden package. Delivery time is 7 working days after received deposit. Payment terms for this generator set is T/T or L/C. Supply ability is 400 units per month. Options available are ATS, Super Silent Type and Trailer Mounted.
Packing and Shipping:
Yangdong Genset Packaging and Shipping:
- Each genset is securely packaged in a cardboard box.
- The box is then placed into a wooden crate.
- The crate is then sealed with plastic wrap and strapped with steel bands.
- The crate is then shipped on a truck or train.
FAQ:
- Q: What is the brand name of Yangdong Generator?
- A: The brand name is Yangdong Generator.
- Q: What is the model number of Yangdong Generator?
- A: The model number is TG44YDS & TG52YDS.
- Q: Where is Yangdong Generator made?
- A: Yangdong Generator is made in China.
- Q: What certifications does Yangdong Generator have?
- A: Yangdong Generator has ISO / CE / SASO / CIQ / CO certifications.
- Q: What is the minimum order quantity for Yangdong Generator?
- A: The minimum order quantity for Yangdong Generator is 1 unit.
