50HZ Single Phase 100% Copper Winding Double Bearing AC Alternators

  • 50HZ Single Phase 100% Copper Winding Double Bearing AC Alternators
  • 50HZ Single Phase 100% Copper Winding Double Bearing AC Alternators
Place of Origin China
Brand Name TECGEN Brushless Alternator
Certification ISO / CE / SASO / SONCAP
Model Number TGI
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Standard export package
Delivery Time 10 Working Days
Payment Terms T/T / L/C
Supply Ability 2000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 50Hz / 60Hz Product TECGEN Brushless Alternator
Bearing Single/Double Bearing Winding 100% Copper
Speed 1500RPM / 1800RPM Type Brushless
Phase Single / Three Phase
Highlight

Double Bearing ac alternators

,

Single Phase ac alternators

,

50HZ ac alternator generator
Leave a Message
Product Description

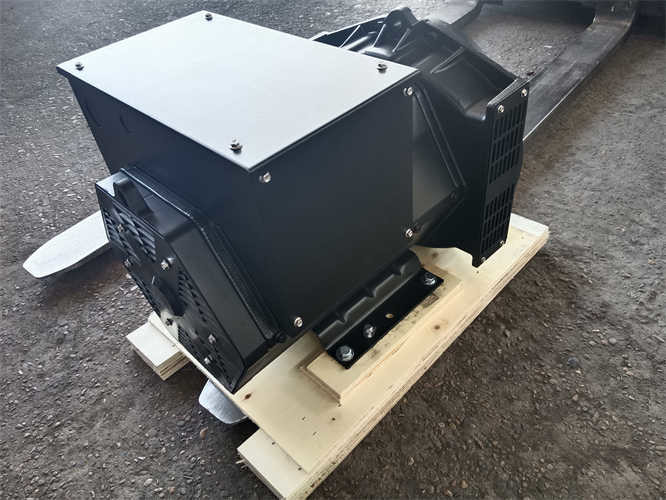

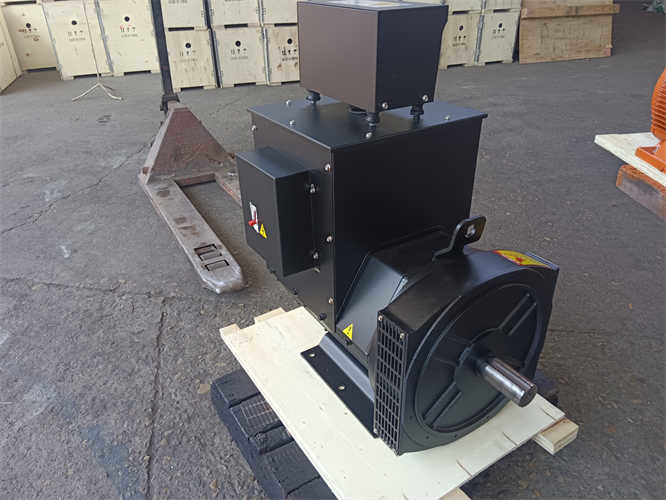

50HZ Single Phase 100% Copper Winding Double Bearing AC Alternators

Product Description:

Brushless AC Alternator

TGI Alternators are high-quality brushless alternators with 100% copper winding, designed to operate at 1500RPM and 1800RPM. These alternators are available in single and three phase versions, and come with single and double bearing options.



These generators provide reliable power for a variety of applications, ranging from small projects to large-scale industrial operations.



Whether you need a single phase or three phase generator, we can provide the right solution. With 100% copper winding and premium technology, these generators offer the highest level of performance, reliability, and efficiency. Get the power you need with TECGEN Generators.



Features:

ALTERNATOR TECHNICAL PERFORMANCCE:
1-Adjusting rate of stable voltage ±0.5%
2-Adjusting rate of instant voltage: ≥-15% ~ ≤+20%
3-Adjusting range of voltage: ≥±25%
4-Insulation class: H
5-Constant working type: s1
6-Protection class: IP21-23

Technical Parameters:

Alternator Rate power: 6.5-1000KVA



Model Prime Output (1500rpm/50Hz) 400V Prime Output (1800rpm/60Hz) 440V
KVA KW KVA KW
TGI164A 8.1 6.5 10.2 8.2
TGI164B 11 8.8 13.8 11
TGI164C 13.5 10.8 16.9 13.5
TGI164D 16 12.8 20 16
TGI184E 22.5 18 28.8 23
TGI184F 27.5 22 34.4 27.5
TGI184G 31.3 24 37.5 30
TGI184H 37.5 30 46.9 37.5
TGI184J 40 32 50 40
TGI224C 42.5 34 52.5 42
TGI224D 50 40 62.5 50
TGI224E 60 48 70 56
TGI224F 72.5 58 87.5 70
TGI224G 85 68 97.5 78
TGI274C 100 80 117.5 94
TGI274D 120 96 137.5 110
TGI274E 140 112 167.5 134
TGI274F 160 128 190 152
TGI274G 180 144 218.5 174.8
TGI274H 200 160 245 196
TGI274J 230 184 281 224.8
TGI274K 250 200 299 239.2
TGI314C 250 200 294 235
TGI314D 295 236 350 280
TGI314E 325 260 394 315
TGI314F 380 304 456 365
TGI354C 450 360 550 440
TGI354D 500 400 594 475
TGI354E 600 480 713 570
TGI354F 670 536 775 620

Applications:

The TECGEN Brushless Alternator is the perfect solution for a variety of applications. It is available in a single phase or three phase, with a speed of 1500RPM or 1800RPM, and a single or double bearing. The winding is 100% copper, and the quality is certified through ISO/CE/SASO/SONCAP. Minimum order is 1 SET and pricing is negotiable. Delivery is within 10 working days, with payment terms being T/T or L/C. The supply ability is 2000 Units Per Month.



Customization:

TECGEN Brushless Alternator
Model Number: TGI

Place of Origin: China

Certification: ISO / CE / SASO / SONCAP

Minimum Order Quantity: 1 SET

Price: Negotiation

Packaging Details: Standard export package

Delivery Time: 10 Working Days

Payment Terms: T/T / L/C

Supply Ability: 2000 Units Per Month

Phase: Single / Three Phase

Bearing: Single/Double Bearing

Type: Brushless

Speed: 1500RPM / 1800RPM



50HZ Single Phase 100% Copper Winding Double Bearing AC Alternators 0
