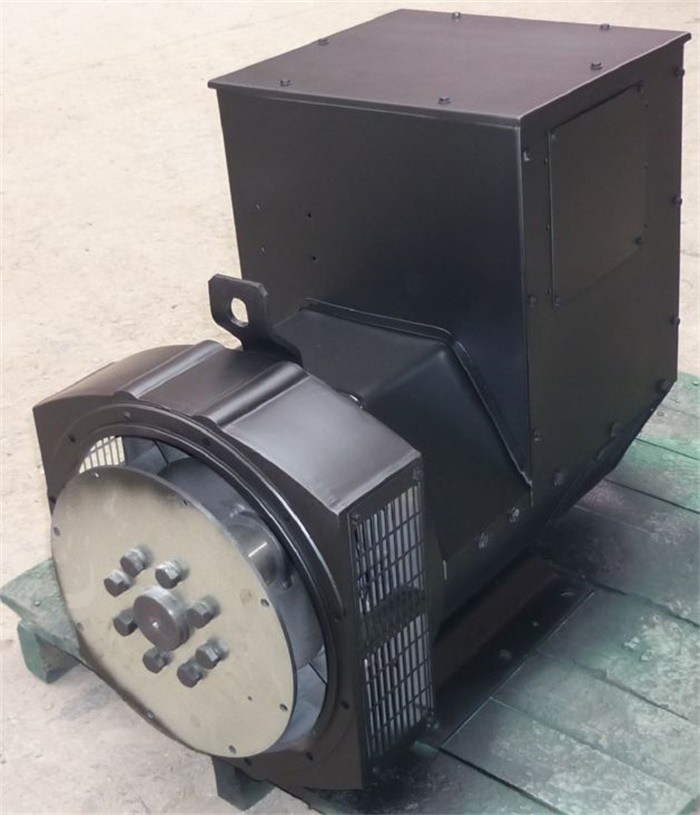

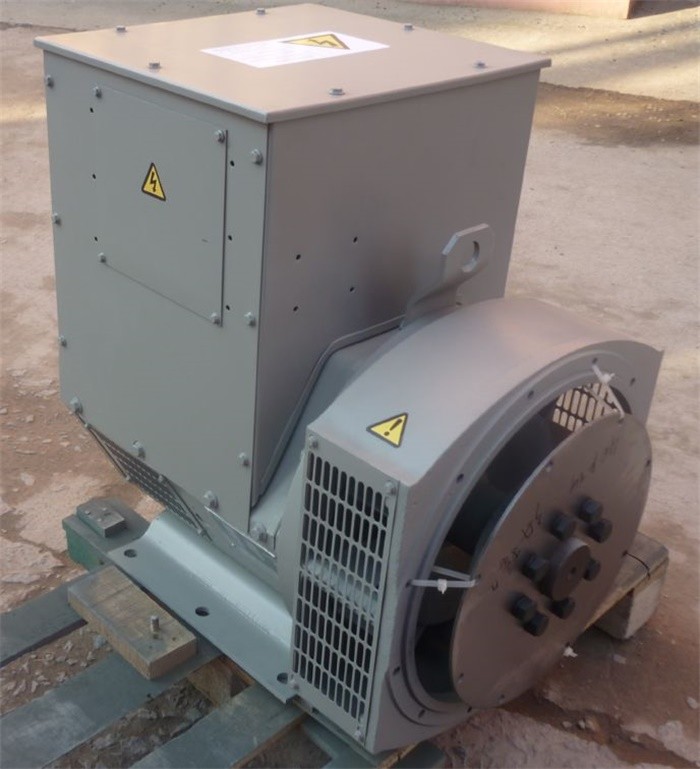

50Hz Brushless AC Alternator
| Place of Origin | China |
|---|---|
| Brand Name | TECGEN Brushless Alternator |
| Certification | ISO / CE / SASO / SONCAP |
| Model Number | TGI 164 Series |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 10000 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz / 60Hz | Bearing | Single/Double Bearing |
|---|---|---|---|
| Speed | 1500RPM / 1800RPM | Product | TECGEN Brushless Alternator |
| Winding | 100% Copper | Type | Brushless |
| Alternator Output Type | A.C. Synchronous Alternator | ||
| Highlight | 50Hz brushless ac alternator,11kVA brushless ac alternator,8kVA Brushless dynamo |
||
Product Description
50Hz Brushless dynamo 8kVA 11kVA 14kVA 16kVA AC brushless alternator for genset assembly
Product Description:
Other Generators is a line of high-performance brushless dynamos specifically designed for reliable and efficient power generation. Our TGI series of brushless dynamo models feature a single or double bearing design, 100% copper winding, and an AC brushless alternator output type. This combination of features gives our dynamos superior durability, power, and reliability, making them ideal for a variety of applications. From industrial plants to commercial facilities to residential homes, Other Generators' brushless dynamos offer reliable power with a minimum of maintenance. With our brushless dynamo models, you can rest assured that you have a dependable source of energy that will keep your operations running smoothly.
Features:
- Product Name: Other Generators
- Alternator Output type: A.C. Synchronous Alternator
- Product: TECGEN Brushless Alternator
- Winding: 100% Copper Dynamo
- Model Number: TGI Series
- Speed: 1500RPM / 1800RPM
Technical Parameters:
| Insulation Class | H | Ambient Temperature | 40℃ | Temperature Rise | 125 ºC |
| Volt. Regulation | 1% | Altitude | ≦1000m | Controlled | AVR |
| Protection Class | IP23 | Max. Overspeed | 2250RPM | Pole | 4 |
| Altermator Model | 3 Phases / 50Hz / 1500 RPM / 400V / PF=0.8 | 3 Phases / 60Hz / 1800 RPM / 440V / PF=0.8 | ||||||
| Rated / Cont. 40 ºC | Standby / Cont. 40 ºC | Rated / Cont. 40 ºC | Standby / Cont. 40 ºC | |||||
| (KVA) | (KW) | (KVA) | (KW) | (KVA) | (KW) | (KVA) | (KW) | |
| TGI164S1 | 8.1 | 6.5 | 8.9 | 7.2 | 10.2 | 8.2 | 11.22 | 9.02 |
| TGI164S2 | 11 | 8.8 | 12.1 | 9.7 | 13.8 | 11 | 15.18 | 12.1 |
| TGI164S3 | 13.5 | 10.8 | 14.9 | 11.9 | 16.9 | 13.5 | 18.59 | 14.85 |
| TGI164S4 | 16 | 12.8 | 17.6 | 14.1 | 20 | 16 | 22 | 17.6 |
| TGI184S1S | 18.8 | 15 | 20.7 | 16.5 | 23.5 | 18.8 | 25.85 | 20.68 |
| TGI184S1 | 22.5 | 18 | 24.8 | 19.8 | 28.8 | 23 | 31.68 | 25.3 |
| TGI184S2S | 25 | 20 | 27.5 | 22.0 | 30 | 24 | 33 | 26.4 |
| TGI184S2 | 27.5 | 22 | 30.3 | 24.2 | 34.4 | 27.5 | 37.84 | 30.25 |
| TGI184S3 | 31.3 | 25 | 34.4 | 27.5 | 37.5 | 30 | 41.25 | 33 |
| TGI184S4 | 37.5 | 30 | 41.3 | 33.0 | 46.9 | 37.5 | 51.59 | 41.25 |
| TGI184S5 | 40 | 32 | 44.0 | 35.2 | 50 | 40 | 55 | 44 |
| TGI224S1S | 37.5 | 30 | 41.3 | 33.0 | 45 | 36 | 49.5 | 39.6 |
| TGI224S1 | 42.5 | 34 | 46.8 | 37.4 | 52.5 | 42 | 57.75 | 46.2 |
| TGI224S2 | 50 | 40 | 55.0 | 44.0 | 62.5 | 50 | 68.75 | 55 |
| TGI224S3 | 60 | 48 | 66.0 | 52.8 | 70 | 56 | 77 | 61.6 |
| TGI224S4 | 72.5 | 58 | 79.8 | 63.8 | 87.5 | 70 | 96.25 | 77 |
| TGI224S5 | 85 | 68 | 93.5 | 74.8 | 97.5 | 78 | 107.25 | 85.8 |
| TGI274S1S | 90 | 72 | 99.0 | 79.2 | 108 | 86.4 | 118.8 | 95.04 |
| TGI274S1 | 100 | 80 | 110.0 | 88.0 | 117.5 | 94 | 129.25 | 103.4 |
| TGI274S2 | 120 | 96 | 132.0 | 105.6 | 137.5 | 110 | 151.25 | 121 |
| TGI274S3 | 140 | 112 | 154.0 | 123.2 | 167.5 | 134 | 184.25 | 147.4 |
| TGI274S4 | 160 | 128 | 176.0 | 140.8 | 190 | 152 | 209 | 167.2 |
| TGI274S5 | 182 | 145.6 | 200.2 | 160.2 | 218.5 | 174.8 | 240.35 | 192.28 |
| TGI274S6 | 200 | 160 | 220.0 | 176.0 | 245 | 196 | 269.5 | 215.6 |
| TGI274S7 | 230 | 184 | 253.0 | 202.4 | 281 | 224.8 | 309.1 | 247.28 |
| TGI274S8 | 250 | 200 | 275.0 | 220.0 | 299 | 239.2 | 328.9 | 263.12 |
| TGI314S1 | 237.5 | 190 | 261.3 | 209.0 | 287.5 | 230 | 316.25 | 253 |
| TGI314S2 | 250 | 200 | 275.0 | 220.0 | 300 | 240 | 330 | 264 |
| TGI314S3 | 300 | 240 | 330.0 | 264.0 | 360 | 288 | 396 | 316.8 |
| TGI314S4 | 325 | 260 | 357.5 | 286.0 | 394 | 315.2 | 433.4 | 346.72 |
| TGI314S5 | 350 | 280 | 385.0 | 308.0 | 420 | 336 | 462 | 369.6 |
| TGI314S6 | 380 | 304 | 418.0 | 334.4 | 456 | 365 | 501.6 | 401.5 |
| TGI314S7 | 400 | 320 | 440.0 | 352.0 | 480 | 384 | 528 | 422.4 |
| TGI354S1 | 450 | 360 | 495.0 | 396.0 | 540 | 432 | 594 | 475.2 |
| TGI354S2 | 500 | 400 | 550.0 | 440.0 | 600 | 480 | 660 | 528 |
| TGI354S3 | 562.5 | 450 | 618.8 | 495.0 | 676 | 540 | 743.6 | 594 |
| TGI354S4 | 600 | 480 | 660.0 | 528.0 | 720 | 576 | 792 | 633.6 |
| TGI354S5 | 665 | 532 | 731.5 | 585.2 | 780 | 624 | 858 | 686.4 |
| TGI354S6 | 700 | 560 | 770.0 | 616.0 | 840 | 672 | 924 | 739.2 |
| TGI404S1 | 750 | 600 | 825.0 | 660.0 | 875 | 700 | 962.5 | 770 |
| TGI404S2 | 800 | 640 | 880.0 | 704.0 | 925 | 740 | 1017.5 | 814 |
| TGI404S3 | 910 | 728 | 1001.0 | 800.8 | 1063 | 850 | 1169.3 | 935 |
| TGI404S4 | 1000 | 800 | 1100.0 | 880.0 | 1163 | 930 | 1279.3 | 1023 |
| TGI404S5 | 1125 | 900 | 1237.5 | 990.0 | 1313 | 1050 | 1444.3 | 1155 |
| TGI404S6 | 1250 | 1000 | 1375.0 | 1100.0 | 1450 | 1160 | 1595 | 1276 |
| TGI404S7 | 1375 | 1100 | 1512.5 | 1210.0 | 1600 | 1280 | 1760 | 1408 |
| TGI404S8 | 1500 | 1200 | 1650.0 | 1320.0 | 1750 | 1400 | 1925 | 1540 |
| TGI454S1 | 1400 | 1120 | 1540.0 | 1232.0 | 1575 | 1260 | 1732.5 | 1386 |
| TGI454S2 | 1562.5 | 1250 | 1718.8 | 1375.0 | 1750 | 1400 | 1925 | 1540 |
| TGI454S3 | 1687.5 | 1350 | 1856.3 | 1485.0 | 1900 | 1520 | 2090 | 1672 |
| TGI454S4 | 1900 | 1520 | 2090.0 | 1672.0 | 2125 | 1700 | 2337.5 | 1870 |
| TGI454S5 | 2062.5 | 1650 | 2268.8 | 1815.0 | 2288 | 1830 | 2516.8 | 2013 |
| TGI454S6 | 2250 | 1800 | 2475.0 | 1980.0 | 2500 | 2000 | 2750 | 2200 |
| TGI454S7 | 2500 | 2000 | 2750.0 | 2200.0 | 2775 | 2220 | 3052.5 | 2442 |
Applications:
TECGEN Brushless Alternator – 100% Copper Dynamo Generator for Your Needs
TECGEN presents the TGI Series Brushless Alternator with 100% Copper Dynamo winding. This product is designed to meet a wide range of needs, from residential to commercial applications. It is certified with ISO / CE / SASO / SONCAP, guaranteeing you peace of mind. You can purchase 1 SET with the minimum order quantity and the price can be negotiated.
The Brushless Alternator comes with plastic film package or Polywooden Package for shipping. It typically takes 10 Working Days to be delivered and you can choose between T/T / L/C payment terms. Our production capacity is 10000 Units Per Month, so you can rest assured that we can meet your needs.
The TECGEN Brushless Alternator has single/double bearing and a speed of 1500RPM / 1800RPM. It is 100% copper dynamo and an excellent brushless alternator for all your needs. Get it now and enjoy the benefits of a top-notch product!
Customization:
Customization Services for TECGEN Brushless Alternator
Brand Name: TECGEN Brushless Alternator
Model Number: TGI series
Place of Origin: China
Certification: ISO / CE / SASO / SONCAP
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 10000 Units Per Month
TECGEN Brushless Alternator is the perfect choice for your power generation needs. This brushless AC alternator is designed with superior quality components and features a 100% copper winding for maximum efficiency and reliability. It is also available in both 50Hz and 60Hz frequencies and in single or double bearing configurations. This TECGEN brushless alternator is an ideal choice for gensets and can be used for a wide range of applications.
We offer a variety of customization options to help you get the best performance and results from your TECGEN brushless alternator. Our experienced team can provide recommendations on the best type and size of alternator for your particular needs, as well as the best suitable winding type and bearing type for your application. You can also select the frequency and voltage that best suits your application.
We are committed to providing the highest quality products and services to meet your needs. Our TECGEN brushless alternator is backed by ISO / CE / SASO / SONCAP certifications and is provided with a minimum order quantity of 1 SET. We also offer competitive pricing and quick delivery times of 10 working days. Payment terms include T/T and L/C, and we can supply up to 10000 units per month.
If you’re looking for an reliable brushless AC alternator with 100% copper winding for your genset, TECGEN Brushless Alternator is the perfect choice. Contact us today to learn more about our customization options.
Packing and Shipping:
Packaging and Shipping for Other Generators
- All Other Generators will be securely packaged in corrugated boxes.
- We ensure that all Other Generators are well-protected and arrive undamaged.
- Every package is labeled with the full shipping address and contact information.
- All packages are shipped via a reliable shipping carrier.
FAQ:
Q1: What is the Brand Name of the Other Generators?
A1: The Brand Name of the Other Generators is TECGEN Brushless Alternator.
A1: The Brand Name of the Other Generators is TECGEN Brushless Alternator.
Q2: What is the Model Number of the Other Generators?
A2: The Model Number of the Other Generators is TGI series.
A2: The Model Number of the Other Generators is TGI series.
Q3: Where is the Other Generators produced?
A3: The Other Generators is produced in China.
A3: The Other Generators is produced in China.
Q4: What Certifications is the Other Generators approved?
A4: The Other Generators is approved with ISO / CE / SASO / SONCAP Certifications.
A4: The Other Generators is approved with ISO / CE / SASO / SONCAP Certifications.
Q5: What is the Minimum Order Quantity of the Other Generators?
A5: The Minimum Order Quantity of the Other Generators is 1 SET.
A5: The Minimum Order Quantity of the Other Generators is 1 SET.
