Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper

  • Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper
  • Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper
  • Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper
Place of Origin China
Brand Name TECGEN Brushless Alternator
Certification ISO / CE / SASO / SONCAP
Model Number TGI STC Brush Series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plastic film package or Polywooden Package
Delivery Time 10 Working Days
Payment Terms T/T / L/C
Supply Ability 10000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Winding 100% Copper Bearing Single/Double Bearing
Speed 1500RPM / 1800RPM Alternator Output Type A.C. Synchronous Alternator
Frequency 50Hz / 60Hz Type Brushless
Product TECGEN STC Brush Alternator
Highlight

STC brush alternator

,

brush alternator 3 Phase

,

8kW brush alternators
Leave a Message
Product Description

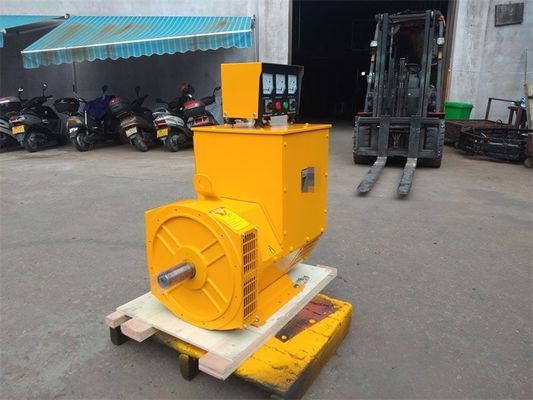

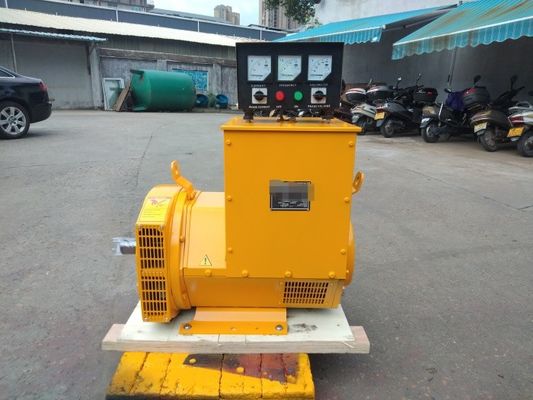

Single bearing STC brush alternator 3 phase output 3kW 5kW 8kW 10kW 12kW 100% Copper

Product Description:

STC Brush alternator are designed for power generation applications. They are 100% copper generators, AC alternators with STC Brush technology and are available in single or double bearing models. The TGI STC Brush Series offers a variety of frequency options, including 50Hz and 60Hz, and is suitable for both residential and commercial applications. With its advanced brush AC alternator design, the STC Brush alternator is an efficient and reliable source of power, offering superior performance and stability. It is designed for long-term and reliable power generation, making it an ideal choice for those who need a reliable power source.



Features:

  • Product Name: STC Brush Alternator
  • Alternator Output type: A.C. Synchronous Alternator
  • Model Number: TGI STC Brush Series
  • Type: Brushless
  • Bearing : Single/Double Bearing
  • Winding: 100% Copper Alternator/Dynamo/Generator/STC Brush Alternator/STC Dynamo
Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper 0Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper 1

Technical Parameters:

STC THREE PHASE ALTERNATOR
Model Rated Output (KW) Rated Capacity (Kva) Rated Current (A) Rated Speed (r/min) Rated Voltage (V) Frequency (Hz) N,W (kg) G.W (kg) Size(cm) 20″ PCS
STC-3 3 3.8 5.4 1500/1800 400/230 50/60 45 53 51*29*43 455
STC-5 5 6.3 9 70 80 61*34*50 279
STC-7.5/8 7.5/8 9.4 13.5 72 82 61*34*50 279
STC-10 10 12.5 18.1 89 103 65*39*54 211
STC-12 12 15 21.7 100 106 65*39*54 211
STC-15 15 18.8 27.1 135 146 70*42*58 170
STC-20 20 25 36.1 145 156 70*42*58 170
STC-24 24 30 43.3 147 165 70*42*58 170
STC-30 30 37.5 54.1 300 320 88*50*69 95
STC-40 40 50 72.2 345 365 88*50*69 95
STC-50 50 62.5 90.2 390 410 88*50*69 95

Single Bearing STC Brush Alternator 3 Phase Output 3kW 5kW 8kW 10kW 12kW 100% Copper 2

Applications:

TECGEN STC Brush Alternator
  • Brand Name: TECGEN Brushless Alternator
  • Model Number: TGI series
  • Place of Origin: China
  • Certification: ISO / CE / SASO / SONCAP
  • Minimum Order Quantity: 1 SET
  • Price: Negotiation
  • Packaging Details: Plastic film package or Polywooden Package
  • Delivery Time: 10 Working Days
  • Payment Terms: T/T / L/C
  • Supply Ability: 10000 Units Per Month
  • Alternator Output type: A.C. Synchronous Alternator
  • Winding: 100% Copper
  • Bearing : Single/Double Bearing
  • Speed: 1500RPM / 1800RPM

TECGEN Brushless Alternator is the perfect choice for various applications. It is an AC brushless dynamo with 100% copper winding, single/double bearing and a speed of 1500RPM/1800RPM. The product is certified by ISO/CE/SASO/SONCAP and is available in a minimum order quantity of 1 SET. TECGEN STC Brush Alternator is available at a negotiable price and is supplied with plastic film package or polywooden package. The delivery time is 10 working days and payment terms are T/T/L/C. The supply ability is 10000 units per month.



Customization:

TECGEN STC Brush Alternator - 100% Copper Alternator

TECGEN offers high-quality TGI series Brushless Alternators made with 100% Copper Winding. This Alternator has a minimum order quantity of 1 SET and is certified by ISO / CE / SASO / SONCAP. It has a speed of 1500RPM / 1800RPM and is an A.C. Synchronous Alternator.

TECGEN STC Brush Alternator is packaged in Plastic Film Package or Polywooden Package, and it has a delivery time of 10 Working Days. Payment terms are flexible and can be done through T/T / L/C. The Supply Ability is up to 10000 Units Per Month.

If you're looking for a reliable and durable Brushless Dynamo or Brushless Alternator, TECGEN's TGI Series STC Brush Alternator is the perfect choice for you.



Packing and Shipping:

Other Generators are packaged in cardboard boxes and shipped via ground service. The boxes are designed to protect the product from damage during transit. All shipments will include a packing slip with the customer's name, address, and the date of shipment. The boxes will also include a label with the customer's address.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is TECGEN STC Brush Alternator.
  • Q: What is the model number for this product?
  • A: The model number for this product is TGI brush series.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What certifications do you have for this product?
  • A: This product has ISO / CE / SASO / SONCAP certifications.
  • Q: What is the minimum order quantity?
  • A: The minimum order quantity for this product is 1 SET.
