Quiet Portable Silent Small Diesel Generator 5KVA For Home Backup
| Place of Origin | China |
|---|---|
| Brand Name | TECGEN Air Cooled Diesel Generator |
| Certification | ISO / CE / SASO / SONCAP |
| Model Number | TG |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | By Carton |
| Delivery Time | 15 working days after received deposit |
| Payment Terms | T/T / L/C |
| Supply Ability | 3000 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz / 60Hz | Speed | 3000RPM / 3600RPM |
|---|---|---|---|
| Option | ATS | Product | Air Cooled Diesel Generator |
| Output Type | AC Single Phase/Three Phase | Genset Type | Silent Type |
| Highlight | Silent Small Diesel Generator,Portable Small Diesel Generator,5KVA portable diesel generator |
||
Product Description

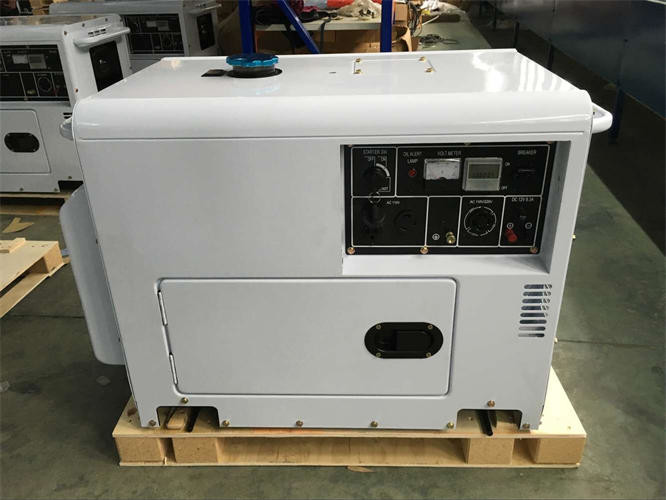

Quiet Portable Generator Silent Small Diesel Generator 5KVA for Home Backup
Product Description:
The Other Generators TG series is a reliable and powerful air cooled diesel generator with advanced AC brushless alternator and 100% copper dynamo. It is designed for a wide range of industrial and commercial applications such as agriculture, construction, mining, and emergency power supply. The TG series offers two speed options of 1500RPM and 1800RPM and two frequency options of 50Hz and 60Hz. Additionally, the optional Automatic Transfer Switch (ATS) ensures smooth and continuous operation. The diesel generator is equipped with 100% copper generator to ensure maximum efficiency and durability.
Features:
- Product Name: Portable Generators
- Output Type: AC Single Phase/Three Phase
- Product: Air Cooled Diesel Generator
- Speed: 3000RPM / 3600RPM
- Option: ATS
- Silent Type
- Electric Start
- ATS
Technical Parameters:
| Model(silent type) | DG3500SE | DG5500SE | DG6500SE |
| Rated frequency[Hz] | 50 | ||
| Rated voltage[V] | 220 | ||
| Rated output power[KW/KVA] | 3 | 4.5 | 6 |
| Max output power[KW/KVA] | 3.3 | 5 | 6.5 |
| Rated rotation speed[rpm] | 3000 | ||
| Power factor[cos@] | 1 | ||
| Phase number | Single phase | ||
| Noise level[Db(A)@7m] | 75 | ||
| Excitation mode | Self-excitation brush | ||
| Engine model | Single cylinder,4-stroke,air-cooled,direct injection, diesel engine | ||
| Engine type | SD178F | SD186FA | SD188F |
| Displacement[ml(cu/in)] | 296 | 418 | 456 |
| Starting system | Electric start | ||
| Fuel | 0#(summer) or -10#(winter) -35#(chillness) diesel oil | ||
| Lube | CDgrade or SAE 10W-30,15W-40 | ||
| Low oil pressure alert system | With | ||
| Indications | Voltage--yes and Current --No | ||
| Overall dimension(LxWxH)[mm] | 950x565x770 | ||
| Dry weight[kg] | 100 | 170 | 175 |
| Guarantee period | 1 year | 1 year | 1 year |
| package | carton | carton | carton |
| 20'' container(pcs) | 72 | 72 | 72 |
Customization:
TECGEN Air Cooled Diesel Generator
Brand Name: TECGEN
Model Number: TG
Place of Origin: China
Certification: ISO / CE / SASO / SONCAP
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: By Carton
Delivery Time: 15 working days after received deposit
Payment Terms: T/T / L/C
Supply Ability: 3000 Units Per Month
Output Type: AC Single Phase/Three Phase
Frequency: 50Hz / 60Hz
Option: ATS
Speed: 3000RPM / 3600RPM
Support and Services:
Our technical support and service for Other Generators includes:
- 24/7 email support
- Phone support and technical advice
- Updates and upgrades
- Training and tutorials
- Online technical assistance
- Product warranties
