5KVA 6.5KVA Air Cooled Diesel Generator
| Place of Origin | China |
|---|---|
| Brand Name | TECGEN Air Cooled Diesel Generator |
| Certification | ISO / CE / SASO / SONCAP |
| Model Number | TG |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |

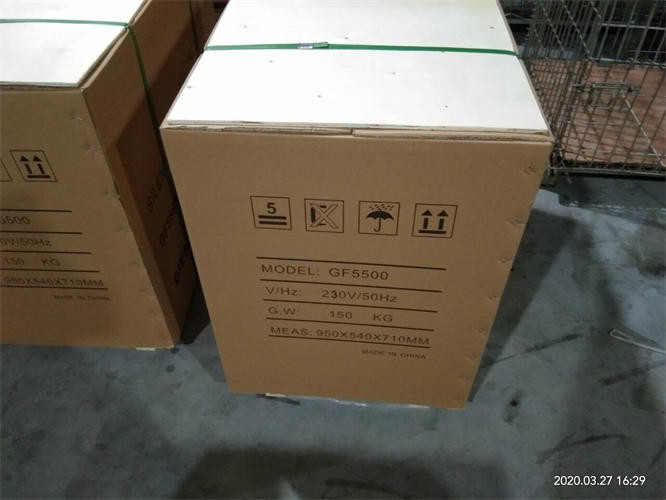

| Packaging Details | By Carton |
| Delivery Time | 15 working days after received deposit |
| Payment Terms | T/T / L/C |
| Supply Ability | 3000 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Option | ATS | Output Type | AC Single Phase/Three Phase |
|---|---|---|---|
| Frequency | 50Hz / 60Hz | Speed | 3000RPM / 3600RPM |
| Product | Air Cooled Diesel Generator | ||
| Highlight | 6.5KVA air cooled diesel generator,5KVA air cooled diesel generator,60Hz portable diesel generator |
||
Product Description

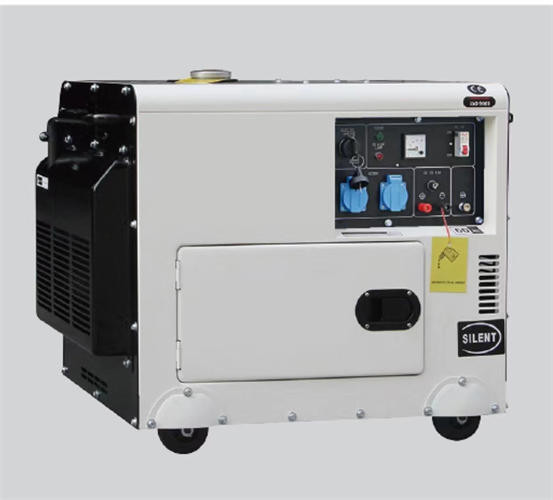

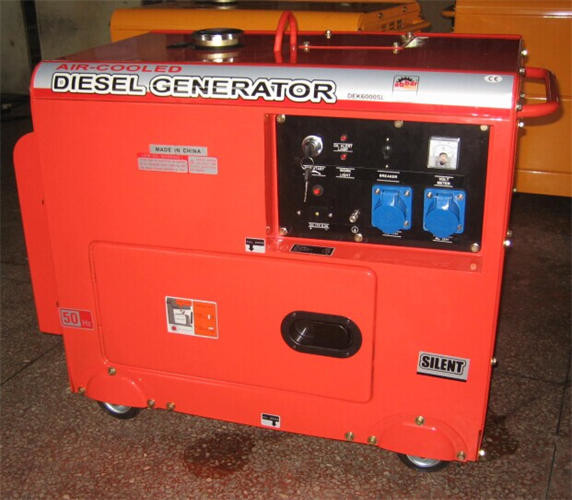

5KVA 6.5KVA Silent Generators with ATS Option - Air Cooled Diesel Generator
Product Description:
Other Generators presents a high-quality air cooled diesel generator that is designed to provide reliable and efficient power. The generator is equipped with a brushless AC alternator that allows for a range of output types, including AC single phase and three phase. It also features a brushless dynamo that provides precise frequency (50 Hz/60 Hz) and speed (1500 RPM/1800 RPM) control. For added convenience, the generator also includes an automatic transfer switch (ATS) as an option.
With its brushless dynamo and brushless alternator, Other Generators delivers an exceptional performance that is both reliable and efficient. The generator is designed to provide stable and consistent power, so you can be sure that you’ll have the power that you need when you need it. Thanks to the ATS option, you can also rest assured that you’ll be able to switch between power sources with minimal downtime.
Other Generators offers a high-quality air cooled diesel generator that is sure to meet any of your power requirements. With its brushless dynamo, brushless alternator, and ATS option, you can be sure to get the most out of your generator. Invest in Other Generators and you can be sure to get reliable, efficient, and consistent power whenever you need it.
Features:
- Product Name: Air Cooled Generators
- Frequency: 50Hz / 60Hz
- Output Type: AC Single Phase/Three Phase
- Option: ATS
- Product: Air Cooled Diesel Generator
- Speed: 3000RPM / 3600RPM
Technical Parameters:
| Model(silent type) | DG3500SE | DG5500SE | DG6500SE |
| Rated frequency[Hz] | 50 | ||
| Rated voltage[V] | 220 | ||
| Rated output power[KW/KVA] | 3 | 4.5 | 6 |
| Max output power[KW/KVA] | 3.3 | 5 | 6.5 |
| Rated rotation speed[rpm] | 3000 | ||
| Power factor[cos@] | 1 | ||
| Phase number | Single phase | ||
| Noise level[Db(A)@7m] | 75 | ||
| Excitation mode | Self-excitation brush | ||
| Engine model | Single cylinder,4-stroke,air-cooled,direct injection, diesel engine | ||
| Engine type | SD178F | SD186FA | SD188F |
| Displacement[ml(cu/in)] | 296 | 418 | 456 |
| Starting system | Electric start | ||
| Fuel | 0#(summer) or -10#(winter) -35#(chillness) diesel oil | ||
| Lube | CDgrade or SAE 10W-30,15W-40 | ||
| Low oil pressure alert system | With | ||
| Indications | Voltage--yes and Current --No | ||
| Overall dimension(LxWxH)[mm] | 950x565x770 | ||
| Dry weight[kg] | 100 | 170 | 175 |
| Guarantee period | 1 year | 1 year | 1 year |
| package | carton | carton | carton |
| 20'' container(pcs) | 72 | 72 | 72 |
Customization:
Other Generators - TECGEN Air Cooled Diesel Generator
TECGEN Air Cooled Diesel Generator (Model: TG) is a reliable and durable generator with ISO / CE / SASO / SONCAP certification. The minimum order quantity is 1 SET, and the price is negotiable. The packaging is by carton, and the delivery time is 15 working days after receipt of deposit. Payment Terms: T/T / L/C. The supply capacity is 3000 Units per month. The frequency is 50Hz / 60Hz. It is powered by air cooled diesel engine and brushless alternator, brushless dynamo. The speed is 1500RPM / 1800RPM, and the optional ATS is available.
Support and Services:
Other Generators provides technical support and services to its customers. Our technical support team is available 24/7 to provide assistance with product installation, troubleshooting, and maintenance. We also offer additional services such as customizing products for specific needs, providing product training, and helping customers integrate their products with other solutions.
