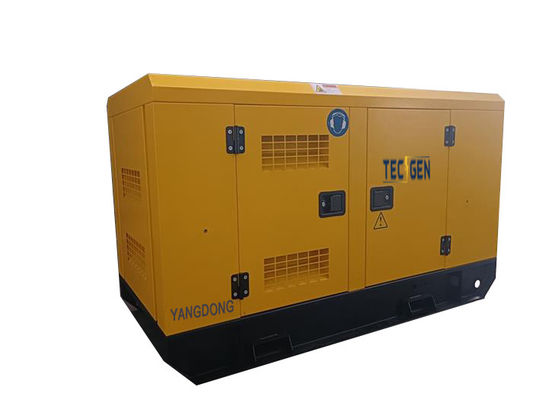

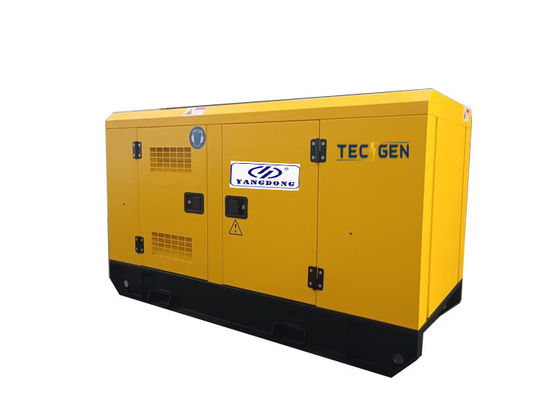

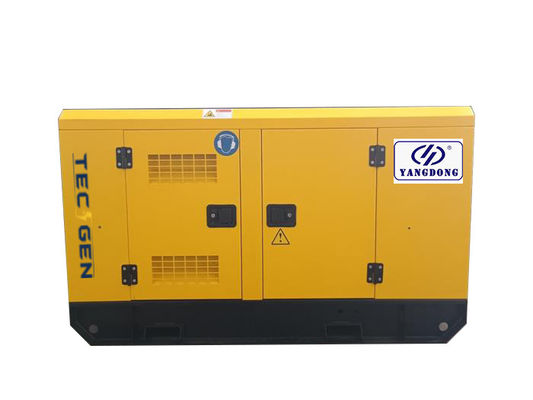

22kW quiet diesel generator Powered By Y495D Diesel Engine With Chassis Base Fuel Tank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conditions Of Use | Land-use & Back-up | Genset Type | Silent Enclosed |
|---|---|---|---|
| Frequency | 50Hz | Genset Output | 28kVA / 22kW |
| Engine | Yangdong Y495D | Diesel Generator Color | Customed |
| HS Code | 8502110000 | Trade Mark | Tecgen Power |
| Highlight | 22kW quiet diesel generator,Y495D Engine quiet diesel generator,Y495D Engine super silent generator |
||
Product Description
22kW Silent diesel generator powered by Y495D diesel engine with chassis base fuel tank
Tecgen Power Main Products:
Water Cooling Diesel Generator: 1kw to 2400kw.
Air Cooled Diesel Generator: 11kW to 91kW
Marine Diesel Generator:12kW to 500kW
Brush/Brushless Alternator: 2kVA to 800kVA
AC Electric Motor: 0.18kW to 315kW
CKD / SKD type Diesel Generator
Famous engines:
Powered by Cummins / Deutz / Perkins / Yangdong / Weifang Ricardo / SDEC / Weichai / Yuchai / FAWDE / Quanchai / YTO / ISUZU / VMAN / Googol / Yanmar
Famous Alternators:
Stamford / Leroy Somer / Meccalte / Marathon / Copy Stamford etc.
Control panel: DEIF, Smartgen, Deepsea, ComAp, Tecgen
Portable Gasoline Generators
Portable Diesel Generators
Chinese Diesel engines
Genset / engine / Alternator / Overhaul Spare parts
Generators Variety Models:
Genset with Fuel tank or Integrated Fuel Tank
Silent type genset with Fuel tank or Integrated Fuel Tank
Silent & Mobile type genset with Fuel Tank or Integrated Fuel Tank
Genset with 24 hours built-in Fuel Tank or Daily Fuel Tank (1000L, 2000L, 3000L, 5000L, 10000L)
Super Silent type genset with 60dB (A) at 7m
LCD show panel with protection system, self-start, remote control & monitor
Vehicle mounted Diesel Generator
Automatic transfer switch types(ATS)
Weatherproof types
20FT / 40FT standard container canopy type for big output generator set
22kW Diesel Genset Specifications:
| 22kW Silent Enclosed Diesel Generator Datasheet | ||||
| Yangdong Generator Set | Genset Type | Silent Enclosed | ||
| Genset Model | TG28YDS | |||
| Prime Output | 25kVA / 20kW | |||
| Max Output | 28kVA / 22kW | |||
| Engine model | Yangdong Y495D | |||
| Alternator mdoel | TGI184S20 (Copy Stamford) | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 380/220V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 38.0A | |||
| Controller | TG6120U | |||
| ATS | 63A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2200x750x1180mm | |||
| Weight | 700kgs | |||
| Yangdong Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Diesel Engine Parameters | ||||
| Yangdong Engine Y495D | Brand | Yangdong | ||
| Model | Y495D | |||
| Prime power | 27kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Naturally Aspriated | |||
| Compression Ratio | Direct Injection | |||
| Speed | 1500rpm | |||
| Displacement | 2.977 | |||
| Bore* Storke | 95mm*105mm | |||
| governor | MECH | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 5.3 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI184S20 | Brand | Tecgen | ||
| Model | TGI184S20 | |||
| Rate Output | 25kVA | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller TECGEN TG6120U | Brand | TG6120U | ||
| Model | SGC-420 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| Inlet & Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Diesel Generator Advantages:
- Enhanced Safety Features: Equipped with a radiator and fan that are fitted with a safety guard, ensuring the safe operation of the generator.
- Rigorous Inspection Process: Each generator unit undergoes three comprehensive inspections before delivery. These inspections include testing the generator at 50%, 75%, 100%, and even 110% load capacity to ensure its performance and reliability.
- Robust Steel Frame: The generator set is constructed with a heavy-duty steel frame, utilizing high-quality steel ranging from 2mm to 6mm in thickness. This sturdy frame enhances the durability and longevity of the generator.
- Extensive Experience: With over 15 years of experience in supplying diesel engines and generator sets, we have developed expertise and a strong reputation in the industry.
- Soundproofing and Fireproofing: The generator is designed with high-density sound-absorbing material, providing effective sound insulation and fireproofing capabilities.
- Practical and Attractive Design: The generator features a practical and aesthetically pleasing design. It includes a bottom hole for easy maneuvering with a forklift, as well as convenient water and oil outlets for hassle-free maintenance.
- Ample Fuel Capacity: The generator is equipped with a base frame tank that can provide 8-10 hours of continuous operation. The base frame itself is constructed with a minimum of 5mm thickness steel, ensuring durability and stability.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2.what is your power range of your diesel generator?
A: we can provide power from 7KVA-3000KVA
Q3. How long is your delivery time?
A:Our delivery time for diesel generator is 10 to 20 days depends on different quantity and different brands
Q3: What is your terms of payment ?
A: T/T 20% in advance and TT 80% balance paid before shipment or 100% LC at sight.
Q4: What is your warranty period?
A: Our warranty terms is 18 months or 1500 running hours whichever comes first. But based on some special project, we can extend our warranty period.
Q5: Do you offer OEM service?
A: Yes, Tecgen can provide ODM & OEM service for our diesel generator
Q6: How could I trust you?
A: Diesel Service & Supply stands behind the quality of all the used generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
