TGI Series Brushless Synchronous AC Alternators Copy Stamford Alternators 8KVA -775KVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bearing | Single/Double Bearing | Product | TECGEN Brushless Alternator |
|---|---|---|---|
| Phase | Single / Three Phase | Winding | 100% Copper |
| Type | Brushless | Frequency | 50Hz / 60Hz |
| Speed | 1500RPM / 1800RPM | ||
| Highlight | TGI Series synchronous ac alternators,8KVA synchronous ac alternators,775KVA brushless ac generator |
||
Product Description

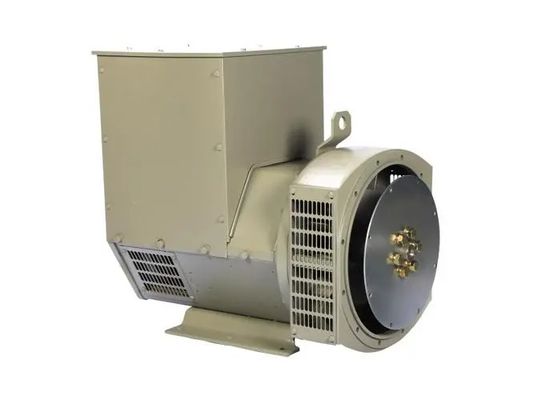

TGI Series Brushless Synchronous AC Alternators High Quality Copy Stamford Alternators 8KVA -- 775KVA
Product Description:
Our Brushless Alternator is also known for its reliability and durability, making it the perfect choice for all your power needs.
Features:
- Product Name: Brushless Synchronous Alternators
- Model Number: TGI
- Phase: Single / Three Phase
- Frequency: 50Hz / 60Hz
- Bearing : Single/Double Bearing
Alternator Rate power: 6.5-1000KVA
| Model | Prime Output (1500rpm/50Hz) 400V | Prime Output (1800rpm/60Hz) 440V | ||
| KVA | KW | KVA | KW | |
| TGI164A | 8.1 | 6.5 | 10.2 | 8.2 |
| TGI164B | 11 | 8.8 | 13.8 | 11 |
| TGI164C | 13.5 | 10.8 | 16.9 | 13.5 |
| TGI164D | 16 | 12.8 | 20 | 16 |
| TGI184E | 22.5 | 18 | 28.8 | 23 |
| TGI184F | 27.5 | 22 | 34.4 | 27.5 |
| TGI184G | 31.3 | 24 | 37.5 | 30 |
| TGI184H | 37.5 | 30 | 46.9 | 37.5 |
| TGI184J | 40 | 32 | 50 | 40 |
| TGI224C | 42.5 | 34 | 52.5 | 42 |
| TGI224D | 50 | 40 | 62.5 | 50 |
| TGI224E | 60 | 48 | 70 | 56 |
| TGI224F | 72.5 | 58 | 87.5 | 70 |
| TGI224G | 85 | 68 | 97.5 | 78 |
| TGI274C | 100 | 80 | 117.5 | 94 |
| TGI274D | 120 | 96 | 137.5 | 110 |
| TGI274E | 140 | 112 | 167.5 | 134 |
| TGI274F | 160 | 128 | 190 | 152 |
| TGI274G | 180 | 144 | 218.5 | 174.8 |
| TGI274H | 200 | 160 | 245 | 196 |
| TGI274J | 230 | 184 | 281 | 224.8 |
| TGI274K | 250 | 200 | 299 | 239.2 |
| TGI314C | 250 | 200 | 294 | 235 |
| TGI314D | 295 | 236 | 350 | 280 |
| TGI314E | 325 | 260 | 394 | 315 |
| TGI314F | 380 | 304 | 456 | 365 |
| TGI354C | 450 | 360 | 550 | 440 |
| TGI354D | 500 | 400 | 594 | 475 |
| TGI354E | 600 | 480 | 713 | 570 |
| TGI354F | 670 | 536 | 775 | 620 |
Applications:
The TECGEN Brushless Alternator is an AC brushless alternator from China that is perfect for any generator or alternator application. This superior product is designed to provide maximum output and durability, making it the ideal choice for a wide range of industrial and commercial applications.
Customization:
TECGEN Brushless Alternator
Model Number: TGI
Place of Origin: China
Certification: ISO / CE / SASO / SONCAP
Minimum Order Quantity: 1 SET
Price: Negotiation

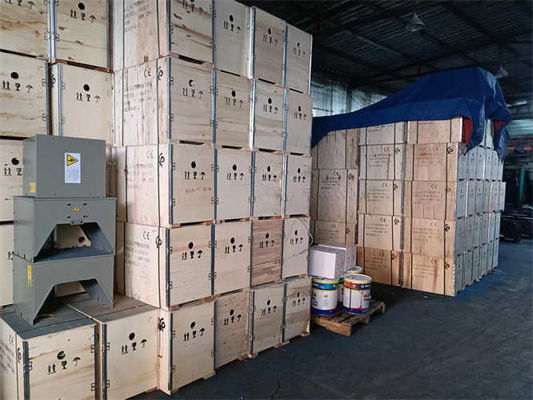

Packaging Details: Standard export package
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 2000 Units Per Month
Support and Services:
Technical Support and Service for these Generators
We provide technical support and services for these Generators customers. We strive to ensure customers are able to maximize their product's performance and reliability. Our technical support team is available to answer questions about product features, installation, and troubleshooting. We offer a variety of support options including online support, phone support, and on-site services.
