15kVA Diesel Generator Set With Silent Enclosed Canopy Equipped With Built In ATS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production | SDEC Diesel Generator Set | Frequency | 50Hz |
|---|---|---|---|
| Rate Output | 15kVA / 12kW | Max Output | 17kVA / 13kW |
| Engine Model | SDEC 4Z2.3-G11 | Alternator Model | TGI164S12 |

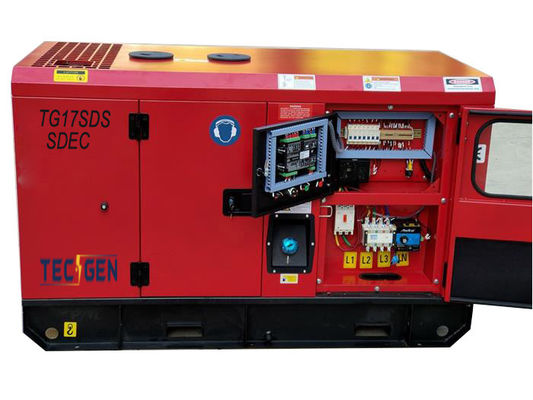

| Controller | DEIF SGC-420 | ATS | 63A Built-in ATS |
| Highlight | ATS silent diesel generator set,15 kva silent diesel generator set,ATS 15 kva silent generator |
||
Product Description

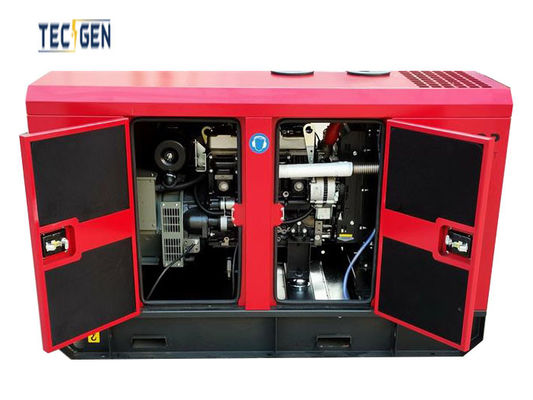

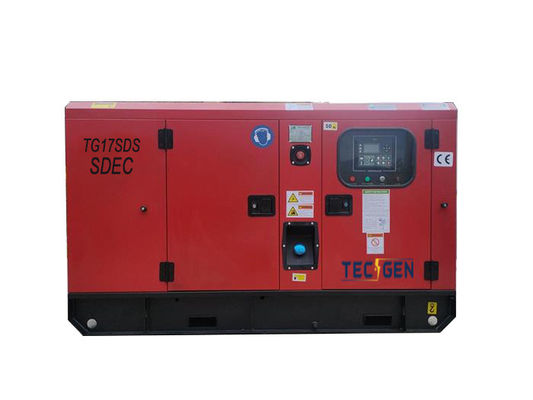

15kVA diesel generator set with silent enclosed canopy equipped with built-in ATS
15kVA Diesel Generator Set General Description:
- Diesel Engine: Equipped with a reliable SDEC 4Z2.3-G11 4-Cylinder engine.
- Efficient Cooling System: Incorporates an 50C ambient temperature radiator, belt drive cooling fan, and fan safety cover for optimal cooling performance.
- Charging Generator: Features a 12VDC charging generator to ensure a continuous power supply.
- Copy Stamford Generator: Utilizes a Chinese alternator single bearing generator with IP23 protection and class H insulation for enhanced safety and durability.
- Effective Filtration: Equipped with a dry air filter, fuel filter, and oil filter for efficient filtration and engine protection.
- Additional Features: Includes a daily oil tank for convenient maintenance and a shock absorber to minimize vibrations.
- Standard Control Panel: Comes with a standard control panel for easy operation, along with a floating charger and cylinder water preheater.
- Reliable Battery: Includes a 12VDC Varta brand Start battery and battery connection cable for reliable starting power.
- Exhaust System: Provided with a complete set of smoke exhaust elbow, bellows, flange, and silencer for efficient and quiet operation.
- Generator Set Usage Information: Offers comprehensive information on the usage and operation of the diesel generator set.
Diesel Generator set for land use
Diesel Generator set for marine vessel
Diesel Generator set for lighting tower
Diesel Generator set for power solutions
Diesel Generator set in mining field
Diesel Generator set in power station field
Diesel Generator set as emergency power supply
Diesel Generator set trailer type
Diesel Generator set super silent type
Diesel Generator set silent type
Diesel Generator set open type
Diesel Generator set container canopy type
Diesel Generator set with Integrated Fuel Tank
15kVA / 17kVA Diesel Generator Set Specifications:
| 15kVA Diesel Generator Set Datasheet | ||||
| 15kVA Diesel Generator Set | Genset Type | Silent Enclosed | ||
| Genset Model | TG17SDS | |||
| Prime Output | 15kVA / 12kW | |||
| Max Output | 17kVA / 13kW | |||
| Engine model | SDEC 4Z2.3-G11 | |||
| Alternator model | TGI164S12 | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 415/240V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 20.9A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 63A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2000x710x1100mm | |||
| Weight | 700kgs | |||
| SDEC Diesel Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| SDEC Diesel Engine Parameters | ||||
| SDEC Engine 14Z2.3-G11 | Brand | Shanghai Diesel Engine Co., Ltd | ||
| Model | 4Z2.3-G11 | |||
| Prime power | 16kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Naturally Aspriated | |||
| Compression Ratio | 18:1 | |||
| Speed | 1500rpm | |||
| Displacement | 2.3 | |||
| Bore* Storke | 85mm*100mm | |||
| governor | MECH | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 4.4 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI184S24 | Brand | Tecgen Power | ||
| Model | TGI164S12 | |||
| Rate Output | 15kVA | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
SDEC Diesel Generator Set Advantages:
- Superior Quality: Our SDEC diesel generators Set are built with high-quality materials and undergo stringent quality control measures. We have established a comprehensive quality control system, and each production step, from raw material procurement to assembly, is closely monitored by dedicated personnel.
- Dedicated R&D Center: Our company boasts a professional R&D center staffed with experienced designers who have accumulated 15 years of expertise in the diesel generator set industry. We continuously strive to enhance our products through ongoing research and development efforts.
- Swift Delivery: We maintain a substantial inventory, allowing us to fulfill orders promptly. In most cases, goods can be delivered within 7-20 days from the date of order placement, ensuring timely delivery to our customers.
- Flexible Order Acceptance: We are committed to meeting the diverse needs of our customers, which is why we accept small orders. We have a low minimum order quantity requirement, ensuring that even orders for a single unit are accommodated.
GENERATOR TESTING ITEMS:
- Genset Parts faults testing
- Genset Fuel tank pressure testing
- Genset Bolt tightening torque testing
- Genset Voltage bearing and insulation testing
- Genset Speed performance testing
- Genset Oil pressure testing
- Genset Noise testing
- 1 hour testing for 25%, 50%, 75%, 100%, 110% loaded power to test the fuel consumption and control systems, alarm and shut-down protection.
