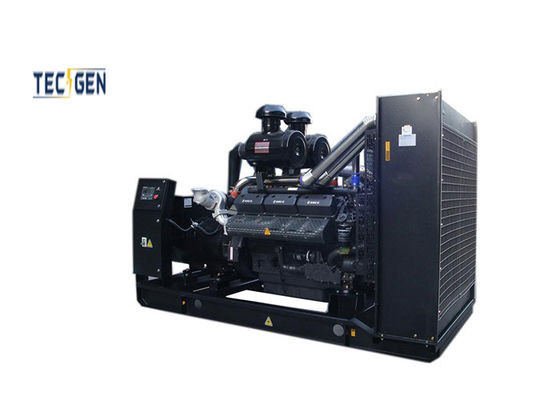

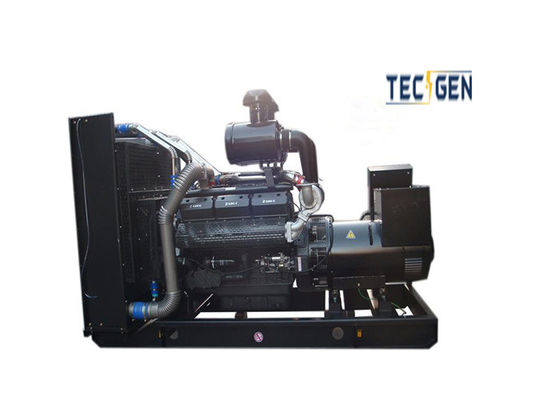

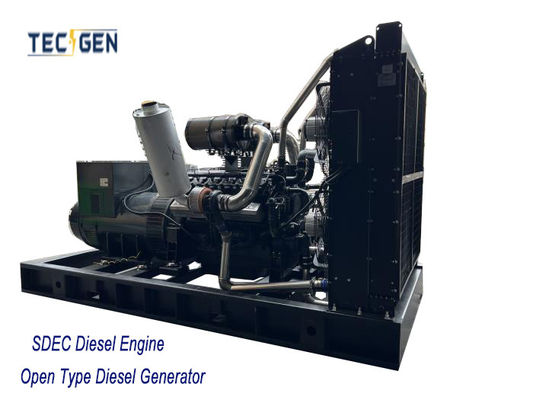

563kVA Diesel Powered Generator With 12 Cylinder Diesel Engine Open Frame Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open Type | Engine Brand | SDEC |
|---|---|---|---|
| Standby Output | 563kVA / 450kW | Prime Output | 500kVA / 400kW |
| Engine Model | 12GTAA27-G34 | No Of Cylinder | 12-Cylinder |
| Breaker Brand | CHINT / DELIXI / AISIKAI | Controller | DEIF SGC420 As Standard |
| Highlight | 563kVA sdec generators,Open Frame sdec generators,563kVA sdec genset |
||
Product Description
563kVA Diesel powered generator with 12-Cylinder diesel engine open frame type
Detailed Product Description of 563kVA Diesel Powered Generator:
1) Standby output: 563kVA / 450kW
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.
Engine: SDEC 563kVA Diesel Powered Generator
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start.
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 75dB 7 meter away
AC Brushless Type Alternator:
1) Brand: Stamford or Leroy Somer or Chinese brand(Copy Stamford)
2) Rated output: 6 -2400kW / 7kVA -3000kVA
3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine: Direct coupled with flywheel
DEIF SGC-420 Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mccb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
563kVA Diesel Powered Generator Datasheets:
| 563kVA Diesel Powered Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG563SD | 12GTAA27-G34 | TIG354S400 | DEIF SGC-420 | 563kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 563kVA Diesel Powered Generator | |||||
| Engine Model | 12GTAA27-G34 SDEC | ||||
| Alternator Mode | TIG354S400 | ||||
| Rated Output | 500kVA / 400kW | ||||
| Standby Output | 563kVA / 450kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 695.6A | ||||
| Breaker | 800 CHINT Breaker | ||||
| ATS | 800A ATS Cabinet for option | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 3850KGS | ||||
| Genset size | L3500 * W1500 * H1800mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 563kVA Diesel Powered Generator | |||||
| Manufacture | SDEC | ||||
| Model | 12GTAA27-G34 | ||||
| Rated Output/Speed | 459KW/1500RPM | ||||
| Standby Output/Speed | 505KW/1500RPM | ||||
| Aspiration | Turbocharged & Intercooled | ||||
| Speed Governor | ECU | ||||
| Engine Type | 12 cylinders in line | ||||
| Bore X Stroke | 135*155mm | ||||
| Displacement | 26.6 L | ||||
| Compression ratio | 18.4:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 112.9 L / h | ||||
| Fuel Consumption/standby output | 125.6 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 563kVA Diesel Powered Generator | |||||
| Alternator Model | TIG354S400 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 400kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 563kVA Diesel Powered Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Optional Accessories for 563kVA Diesel Powered Generator:
- Engine Heater: Keeps the engine at an optimal temperature in cold weather conditions.
- Heat Exchanger Cooling: Additional cooling system for efficient heat dissipation.
- Communication Interface: Enables remote monitoring and control.
- Battery Charger: Charges the battery using the main power supply.
- ATS and Paralleling System: Allows for automatic power transfer and parallel operation with other generators.
- Soundproof Canopy: Reduces noise emissions for noise-sensitive environments.
Warranty for Diesel Powered Generator:
Guarantee for 18 months or 1500 hours whichever reach first from ex-factory date. During the guarantee period, Tecgen will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material.
