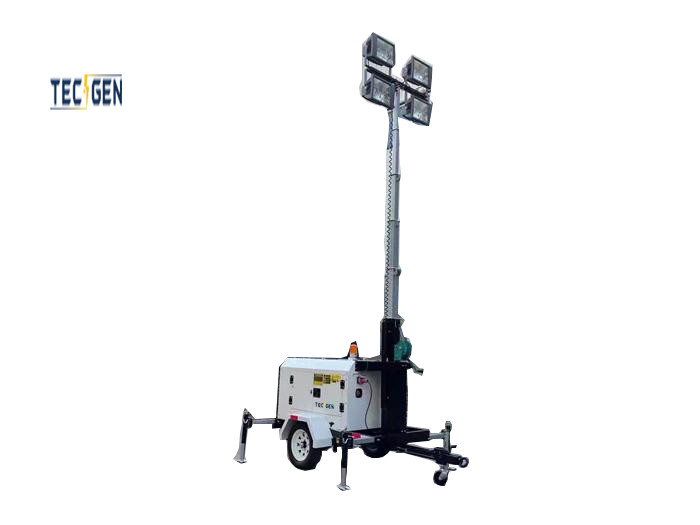

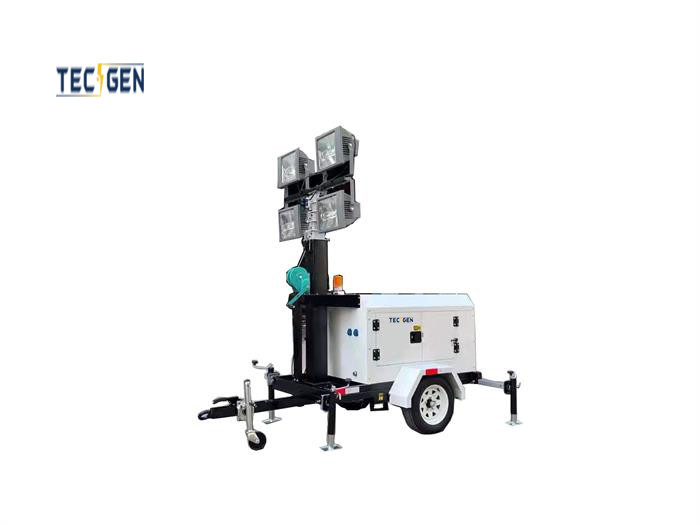

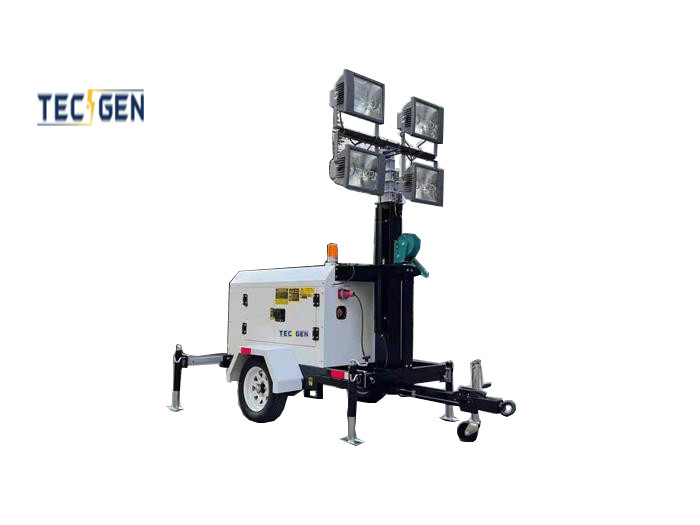

9m Manual Mobile Lighting Tower With 4x1000W Floodlights For Construction Site
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production | Mobile Lighting Tower | Model | TLT8000-9M |
|---|---|---|---|
| Mast Lifting System | 9m Manual | Lights | 4X1000W LED Floodlights |
| Lamp Type | Metal Halide Lamp | Trailer Structure | Single Axle |
| Illuminating Field | 5 To 7 Acres | Generator Power | 8kW |
| Highlight | 9m mobile lighting tower,construction site mobile lighting tower,9m construction site lighting tower |
||
Product Description
Mobile lighting tower 9m manual towers with 4x1000W floodlights for construction site
Mobile Lighting Tower General FEATURES:
- Potent 4x1000W metal halide lamps (Floodlights or spotlights), unmatched in brightness and coverage
- Robust diesel generator powered by Yangdong diesel engine, renowned for its reliability and efficiency
- State-of-the-art digital controller module, either Harsen or Smartgen, for precise operation
- Sturdy fixtures engineered to withstand impact and ensure longer lifespan
- Innovative lamp design extends filament durability and maintains optimal illumination for prolonged periods, enhancing productivity
- One outrigger and four leveling jacks ensure maximum stability, ensuring safe and secure operation
- Sophisticated automatic engine shutdown system guards against engine damage caused by low oil pressure or elevated coolant temperatures
- Robust 7m galvanized mechanical mast, designed for durability and longevity
- Unique 359° non-continuous tower rotation and retractable mast cable, providing exceptional flexibility and ease of use
Mobile Lighting Towers Specifications:
| Engine | |||||
| Engine | Three cylinders in line,Water cooled,Four stroke | ||||
| Make/Model | Kubota D1105 | ||||
| Cooling | Water | ||||
| Output(Continuous) | 8.4kW/1500Rpm | ||||
| Revolution(RPM) | 1500 | ||||
| Fuel Capacity(L) | 100 | ||||
| Number of Cylinders(Displacement) | 3(1.123) | ||||
| Engine shutdown protection | Low oil pressure, Hight water tempreture | ||||
| Alternator | |||||
| Make/Model | Brushless Maintenance Free AC alternator | ||||
| Output(Primary) | TGI164S8 8kW | ||||
| Phase number | Single Phases | ||||
| Frequency | 50HZ | ||||
| Voltage output | 220-240V | ||||
| Insulation | H | ||||
| Type of bearing/Brush | Single/Brushless Self excitation | ||||
| Available Receptacles | 220-240V AC receptacle | ||||
| Lighting | |||||
| Lighting | MH, 1000W | ||||
| Lamp No. | 4×1000W | ||||
| Lamp type | Metal Halide lamp | ||||
| Illuminating Field | 5 to 7 acres | ||||
| Housing Materials | Aluminum | ||||
| Mast Tower | |||||
| Type | Multi-Sections Telescoping mast | ||||
| Total Height | 9 M | ||||
| Rotation | 360 Degree | ||||
| Mast Sections | 3 Sections | ||||
| Operate for Extends and Lifts | Manual Winch | ||||
| Outriggers | |||||
| Trailer/Cabinet | With 5 points manual outriggers extended and all jack down | ||||
| Fork pocket and central lift point | YES | ||||
| Wheel and Rim | 185R/14'' | ||||
| Trailer Suspension System | Steel plate spring | ||||
| Towing Type | Ring or Ball hitch | ||||
| Cabin | With two doors access for easy maintenance with hanger for handling Detachable Roof,Silent type | ||||
| Electric-Shutdown protection | |||||
| Electric | MCCB-MCB Emergency Stop IP 56 | ||||
| Connection | IP54 | ||||
| Weight | 900KG | ||||
| Loading | 6 units can be loaded in a 20'GP and 18 units can be loaded in a 40'HQ | ||||
| Dimention for shipping | 1850×1450×1680MM(Pack by Plastic) | ||||
| Gurantee | 1000 running hours or 1 year when the customer receive the goods | ||||
| Delivery Time : | 35 Days or 5 weeks when the seller received down payment from the buyer | Warranty | 1000 running hours or 1 year from shipment | ||
| Freight Insurance | |||||
