Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator

  • Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator
  • Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator
  • Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator
  • Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator
  • Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TGI224S1S
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 7 - 15 Working Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 30000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product AC Alternators Output Type Three Phase
Insulation Class H AVR SX460
Frequency/Speed 50Hz/1500rpm/60Hz/1800rpm Alternator Synchronous Alternator
Model Copy Stamford Alternator Production Capacity 30000 Units One Month
Highlight

ac synchronous alternator

,

3 phase synchronous alternator

,

ac synchronous alternator 30 kw
Leave a Message
Product Description

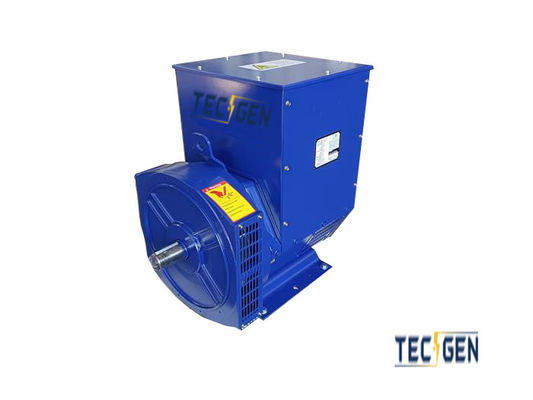

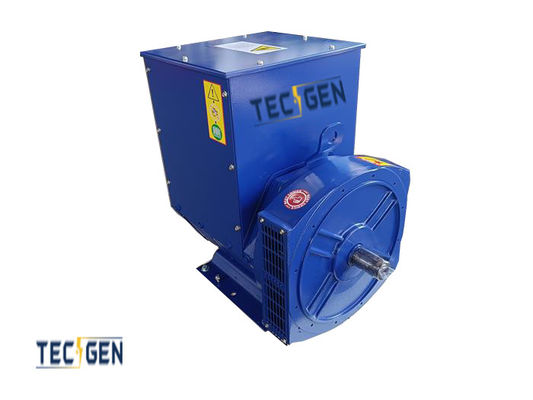

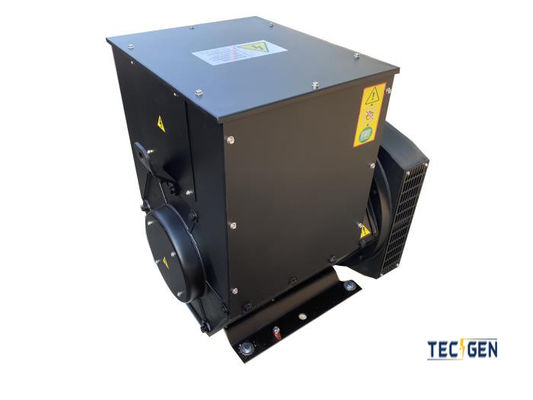

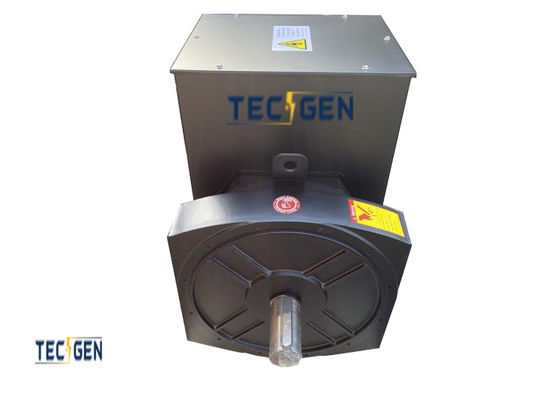

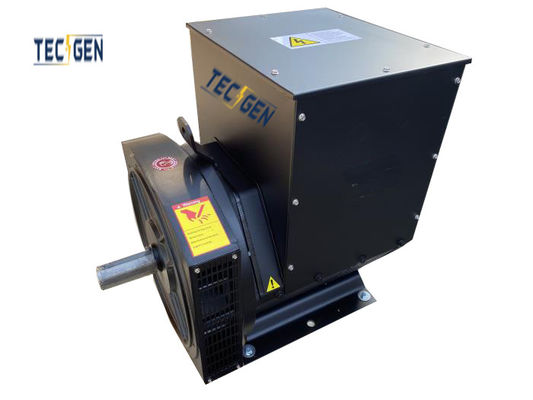

Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator



Detailed Description of AC Alternators



  1. Stamford-style Brushless Synchronous Alternator - A cutting-edge alternator designed to deliver reliable and efficient power output, replicating the trusted Stamford technology.
  2. Versatile Output Range - Capable of generating power ranging from 2kw to 800kw, available in both single-phase and three-phase configurations to meet diverse power requirements.
  3. Seamless Installation & Maintenance - Designed for effortless installation and straightforward maintenance, ensuring minimal downtime and maximum uptime.
  4. Precise Frequency Control - Available in two frequency options: 50Hz operating at 1500RPM and 60Hz operating at 1800RPM, providing precise control over power output.
  5. Robust Features - Boasting a 4-pole design, brushless technology for longer service life, B class insulation for enhanced durability, and IP21 protection rating for added safety.



Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator 0



AC Alternators General Parameters:



Altermator Model 3 Phases / 50Hz / 1500 RPM / 400V / PF=0.8 3 Phases / 60Hz / 1800 RPM / 440V / PF=0.8
Rated / Cont. 40 ºC Standby / Cont. 40 ºC Rated / Cont. 40 ºC Standby / Cont. 40 ºC
(KVA) (KW) (KVA) (KW) (KVA) (KW) (KVA) (KW)
TGI164S1 8.1 6.5 8.9 7.2 10.2 8.2 11.22 9.02
TGI164S2 11 8.8 12.1 9.7 13.8 11 15.18 12.1
TGI164S3 13.5 10.8 14.9 11.9 16.9 13.5 18.59 14.85
TGI164S4 16 12.8 17.6 14.1 20 16 22 17.6
TGI184S1S 18.8 15 20.7 16.5 23.5 18.8 25.85 20.68
TGI184S1 22.5 18 24.8 19.8 28.8 23 31.68 25.3
TGI184S2S 25 20 27.5 22.0 30 24 33 26.4
TGI184S2 27.5 22 30.3 24.2 34.4 27.5 37.84 30.25
TGI184S3 31.3 25 34.4 27.5 37.5 30 41.25 33
TGI184S4 37.5 30 41.3 33.0 46.9 37.5 51.59 41.25
TGI184S5 40 32 44.0 35.2 50 40 55 44
TGI224S1S 37.5 30 41.3 33.0 45 36 49.5 39.6
TGI224S1 42.5 34 46.8 37.4 52.5 42 57.75 46.2
TGI224S2 50 40 55.0 44.0 62.5 50 68.75 55
TGI224S3 60 48 66.0 52.8 70 56 77 61.6
TGI224S4 72.5 58 79.8 63.8 87.5 70 96.25 77
TGI224S5 85 68 93.5 74.8 97.5 78 107.25 85.8
TGI274S1S 90 72 99.0 79.2 108 86.4 118.8 95.04
TGI274S1 100 80 110.0 88.0 117.5 94 129.25 103.4
TGI274S2 120 96 132.0 105.6 137.5 110 151.25 121
TGI274S3 140 112 154.0 123.2 167.5 134 184.25 147.4
TGI274S4 160 128 176.0 140.8 190 152 209 167.2
TGI274S5 182 145.6 200.2 160.2 218.5 174.8 240.35 192.28
TGI274S6 200 160 220.0 176.0 245 196 269.5 215.6
TGI274S7 230 184 253.0 202.4 281 224.8 309.1 247.28
TGI274S8 250 200 275.0 220.0 299 239.2 328.9 263.12
TGI314S1 237.5 190 261.3 209.0 287.5 230 316.25 253
TGI314S2 250 200 275.0 220.0 300 240 330 264
TGI314S3 300 240 330.0 264.0 360 288 396 316.8
TGI314S4 325 260 357.5 286.0 394 315.2 433.4 346.72
TGI314S5 350 280 385.0 308.0 420 336 462 369.6
TGI314S6 380 304 418.0 334.4 456 365 501.6 401.5
TGI314S7 400 320 440.0 352.0 480 384 528 422.4
TGI354S1 450 360 495.0 396.0 540 432 594 475.2
TGI354S2 500 400 550.0 440.0 600 480 660 528
TGI354S3 562.5 450 618.8 495.0 676 540 743.6 594
TGI354S4 600 480 660.0 528.0 720 576 792 633.6
TGI354S5 665 532 731.5 585.2 780 624 858 686.4
TGI354S6 700 560 770.0 616.0 840 672 924 739.2
TGI404S1 750 600 825.0 660.0 875 700 962.5 770
TGI404S2 800 640 880.0 704.0 925 740 1017.5 814
TGI404S3 910 728 1001.0 800.8 1063 850 1169.3 935
TGI404S4 1000 800 1100.0 880.0 1163 930 1279.3 1023
TGI404S5 1125 900 1237.5 990.0 1313 1050 1444.3 1155
TGI404S6 1250 1000 1375.0 1100.0 1450 1160 1595 1276
TGI404S7 1375 1100 1512.5 1210.0 1600 1280 1760 1408
TGI404S8 1500 1200 1650.0 1320.0 1750 1400 1925 1540
TGI454S1 1400 1120 1540.0 1232.0 1575 1260 1732.5 1386
TGI454S2 1562.5 1250 1718.8 1375.0 1750 1400 1925 1540
TGI454S3 1687.5 1350 1856.3 1485.0 1900 1520 2090 1672
TGI454S4 1900 1520 2090.0 1672.0 2125 1700 2337.5 1870
TGI454S5 2062.5 1650 2268.8 1815.0 2288 1830 2516.8 2013
TGI454S6 2250 1800 2475.0 1980.0 2500 2000 2750 2200
TGI454S7 2500 2000 2750.0 2200.0 2775 2220 3052.5 2442





Brushless synchronous alternator 30kW AC alternators with AVR for diesel generator 1



VOLTAGE REGULATION OF AC ALTERNATORS



Voltage regulation ensures stable output from no-load to full-load, withstanding power factor variations from 5 to 10 and minor speed fluctuations of 4%. Fine-tuning is achieved through precision potentiometer or AVR for optimal performance.





PRODUCT FEATURES OF BRUSHLESS ALTERNATOR



(1) Seamless Integration: Quickly connect to power grids or pair with other generators for seamless operation.

(2) Stable Rotor: Features a balanced rotor supported by two sealed ball bearings for smooth and reliable performance.

(3) User-Friendly Maintenance: Terminals, coupling bolts, and brushes are easily accessible for convenient installation and maintenance.

(4) Pure Copper Power: Full-power alternator designed with 100% copper windings for maximum efficiency and durability.
