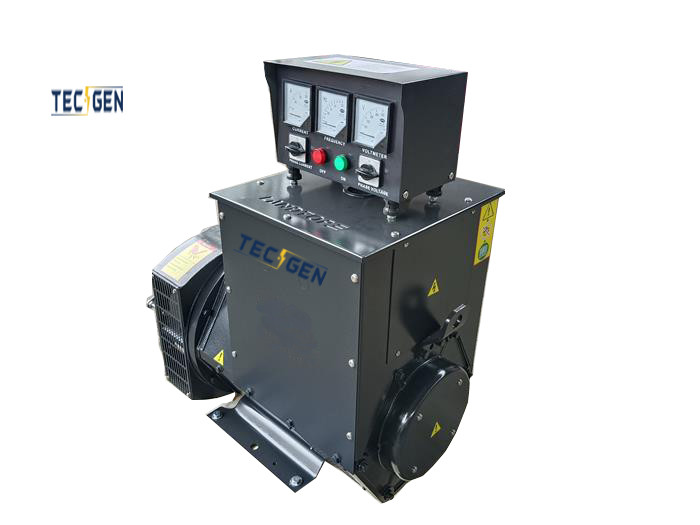

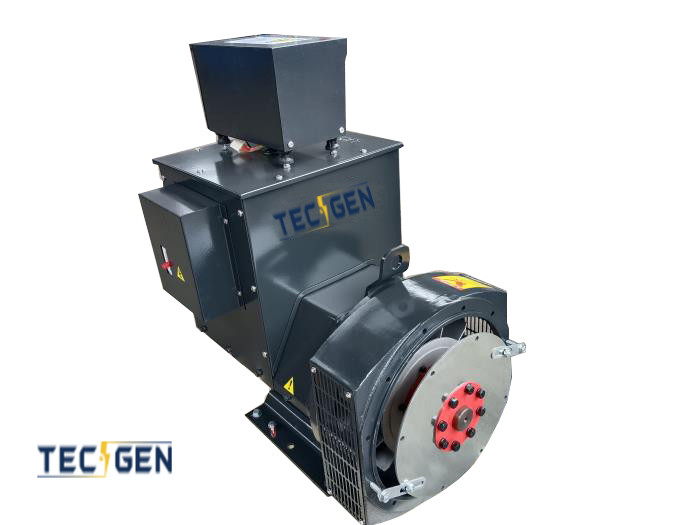

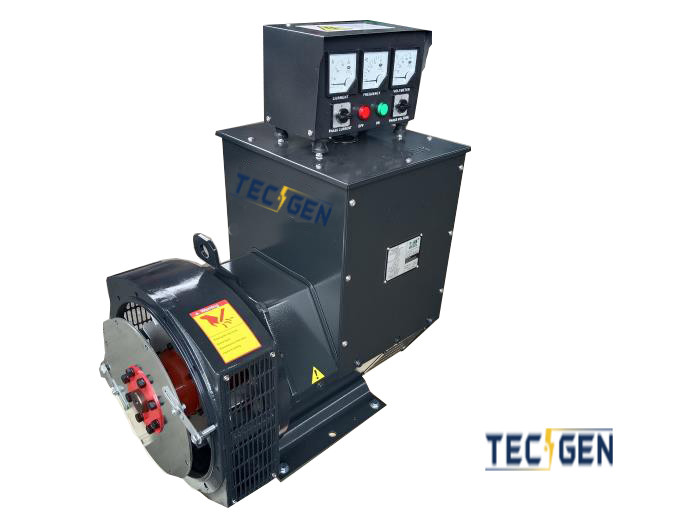

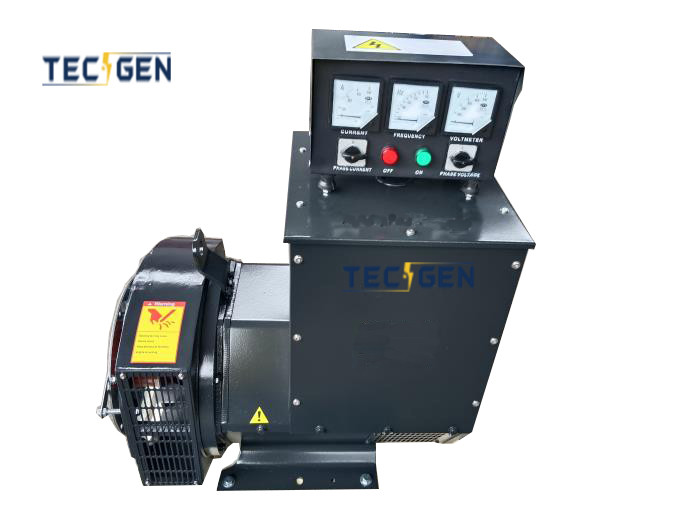

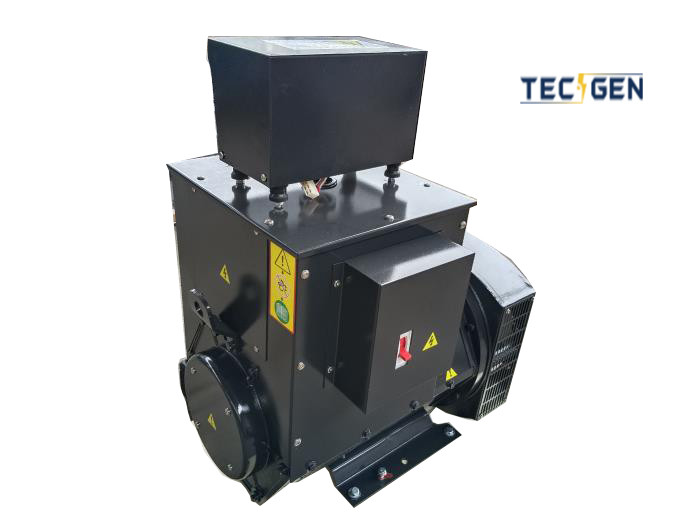

25kW three phase alternator AC brushless alternator with digital instrument panel

  • 25kW three phase alternator AC brushless alternator with digital instrument panel
  • 25kW three phase alternator AC brushless alternator with digital instrument panel
  • 25kW three phase alternator AC brushless alternator with digital instrument panel
  • 25kW three phase alternator AC brushless alternator with digital instrument panel
  • 25kW three phase alternator AC brushless alternator with digital instrument panel
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TGI184G
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 7 - 15 Working Days
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 10000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Three Phase Alternator Rate Power 25kW
Output Type AC Three Phase Bearing Single Bearing
Winding 100% Copper Protection Class IP23
Frequency 50Hz & 60Hz Power Factor PF 0.8 / PF 1
Voltage 480V/440V/400V/220V/230V/120V Production Capacity 20000 Piece/ Month
Highlight

ac synchronous alternator

,

3 phase synchronous alternator

,

ac synchronous alternator 25 kw
Leave a Message
Product Description

25kW three phase alternator AC brushless alternator with digital instrument panel



FEATURES OF THREE PHASE ALTERNATOR:



  1. Compatible with all permanent magnetic generators, ensuring consistent excitation.
  2. Meets GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100 standards.
  3. Available with single or double bearings, plus various adaptor & disc plate options.
  4. 12 reconnectable winding terminals for versatile voltage options.
  5. Standard H insulation class for reliability.
  6. Easy installation & maintenance of lead-end rotated diodes & adaptor bolts.
  7. Standard sealed, maintenance-free bearings.
  8. Standard IP23 protection, with optional enhanced environmental protection.



25kW three phase alternator AC brushless alternator with digital instrument panel 0



TECHNICAL SPECIFICATIONS OF THREE PHASE ALTERNATOR:



  1. Stable voltage adjustment rate: ±0.5%
  2. Instant voltage adjustment rate: ≥-15% to ≤+20%
  3. Voltage adjustment range: ≥±25%
  4. Insulation class: H
  5. Constant working type: s1
  6. Protection class: IP23



Three Phase Alternator General Parameters:



Model 50Hz/400V 60HZ/220V
Common power KW standby power KW
TGI164A 6.5 7.2
TGI164B 8.8 10.0
TGI164C 10.8 12.0
TGI164D 12.8 14.2
TGI184ES 15 16.5
TGI184E 18 20.0
TGI184FS 20 22.0
TGI184F 22 24.0
TGI184GS 24 26.4
TGI184G 25 27.5
TGI184H 30 33.0
TGI184J 34 37.5
TGI224C 34 37.5
TGI224D 40 44.0
TGI224E 50 53.0
TGI224F 58 65.0
TGI224G 68 75.0
TGI224G1 75 82.5
TGI274C 80 88.0
TGI274D 100 106.0
TGI274E 112 125.0
TGI274F 128 140.0
TGI274G 145.6 160.0
TGI274H 160 176.0
TGI274J 184 202.0
TGI274K 200 220.0
TGI314C 200 220
TGI314D 236 259.6
TGI314E 260 286
TGI314F 304 334.4
TGI314F1 320 352
TGI354C 360 396
TGI354D 400 440
TGI354D1 450 495
TGI354E 500 550
TGI354F 550 605
TGI354F1 600 660
TGI404C 600 660
TGI404D 640 704
TGI404E 728 800
TGI404F 800 880
TGI404G 900 1000
TGI404H 1000 1100



Remark:

Land rate data of three phase alternator applies to all models at 40ºC (Altitude ≤ 1000m).
The voltages listed are derived from diverse individual windings, achieved through reconfiguration of 12 outlet terminals (3-phase) and 4 outlet terminals (single-phase).
We also offer custom voltage ranges tailored to client specifications.



25kW three phase alternator AC brushless alternator with digital instrument panel 1



Our Unique Advantages of Three Phase Alternator:



  1. Enhanced Overload Protection for Uninterrupted Safe Operation
  2. Premium Quality with Simplified Maintenance
  3. Stamford's Cutting-Edge Technology & Superior Materials
  4. 4-Pole, Brushless, Self-Excited Design with H-Class Insulation, IP23 Protection, and 100% Copper AVR
  5. Innovative Low-Frequency Protection & Versatile Exterior Voltage Adjustments



Why Choose Us?



  1. 20 Years of Manufacturing Expertise with Unparalleled Technical Support
  2. Comprehensive 365-Day Warranty Coverage
  3. Round-the-Clock Service Available 24/7
  4. Extensive Product Range, Including alternator Accessories to Container Generators
