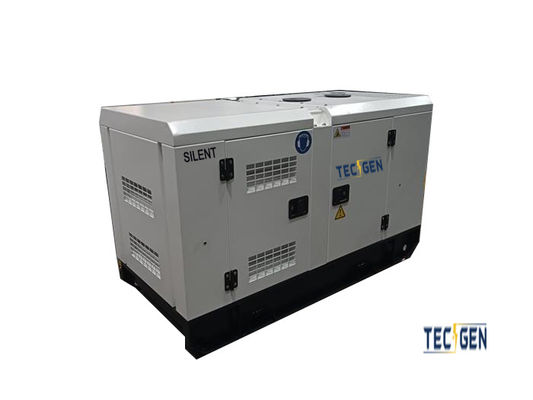

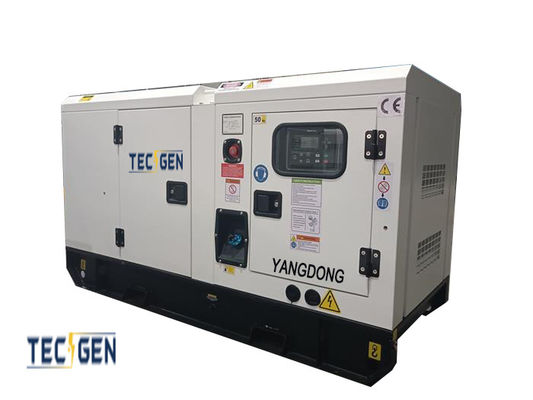

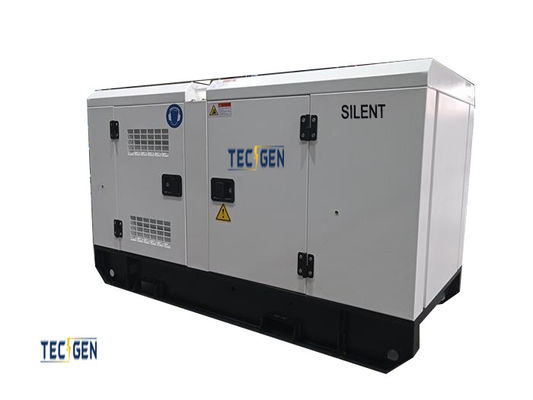

Silent Chinese Diesel Generator 45kVA Yangdong Genset Silent Enclosed Canopy For Backup
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Unit | Silent | Frequency | 50Hz |
|---|---|---|---|
| Rate Output | 36kW / 45kVA | Standby Output | 40kW / 50kVA |
| AMPS | 68.4 | Voltage | 220 / 380V |
| Engine | Y4102ZLD Yangdong | Controller | MEBAY DC52D |
| Highlight | 45kVA yangdong genset,Silent yangdong genset,45kVA yangdong generator |
||
Product Description
Silent Chinese diesel generator 45kVA Yangdong genset silent enclosed canopy for backup
Key Selling Points:
- Powerful Engine: Fueled by the robust Yangdong Y4102ZLD diesel engine, our generator set excels in performance, reliability, and fuel economy. Known for its enduring quality and stable power output, it's a top choice for power needs.
- Efficient Generator: Integrated with the TGI224S36 alternator, our generator set produces high-quality power with impeccable voltage control. Its efficiency and adaptability to varying loads make it a standout in the market.
- Advanced Control System: The MEBAY DC52D controller elevates our generator set's functionality and reliability. Easy to operate, it offers real-time monitoring and automatic protection for seamless and safe power management.
- Ultra-Quiet Operation: Tailored for noise-sensitive environments, our Yangdong generator set boasts noise reduction features. A soundproof enclosure and superior insulation ensure whisper-quiet operation, making it an ideal choice for any setting.
Specs:
• Power: Continuous 45kVA/36kW, Max 50kVA/40kW (1hr)
• Engine: Yangdong Y4102ZLD
• Generator: Copy Stamford TI224S36
• Control: Mebay DC52D
• Fuel: Diesel
• Tank Capacity: 8 hrs (std)
• Voltage: 220V, 380V, 400V or custom
• Frequency: 50Hz/60Hz
Options:
• ATS: Automatic switching for seamless backup power.
• Extended Tank: Extra fuel for longer runtime.
• Remote Monitoring: Control & monitor generator remotely.
45kVA Yangdong Genset Technical Specifications
| 45kVA Yangdong Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG50YDS | Y4102ZLD | TGI224S36 | DC52D | 45kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Yangdong Genset | |||||
| Engine Model | Y4102ZLD Yangdong | ||||
| Alternator Mode | TGI224S36 | ||||
| Rated Output | 45kVA / 36kW | ||||
| Standby Output | 50kVA / 40kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 68.4A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1100KGS | ||||
| Genset size | L2300 * W1050 * H1250mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Yangdong Genset | |||||
| Manufacture | Yangdong Power | ||||
| Model | Y4102ZLD | ||||
| Rated Output/Speed | 48KW/1500RPM | ||||
| Standby Output/Speed | 53KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*118mm | ||||
| Displacement | 3.875 L | ||||
| Compression ratio | 18.4:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 9.4 L / h | ||||
| Fuel Consumption/standby output | 10.5 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Yangdong Genset | |||||
| Alternator Model | TGI224S36 | ||||
| Manufacture | Tecgen | ||||
| Rate Output | 36kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Yangdong Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Advantages:
- Dependable Power: Our Silent Yangdong Diesel Generator Set is a trusted solution for residential, commercial, and industrial needs. It ensures seamless power for all operations.
- Ultra-Quiet Operation: With soundproofing and advanced insulation, our generator operates silently, perfect for noise-sensitive areas like hospitals or outdoor events. Power without the noise.
Usage:
- Residential Backup: Keep essentials running during outages with our generator set.
- Construction Sites: Power tools and machinery on-site, ensuring project progress.
- Healthcare Support: Uninterrupted power for critical medical equipment and patient care.
- Outdoor Events: Enhance events with silent power, creating a better experience for all.
