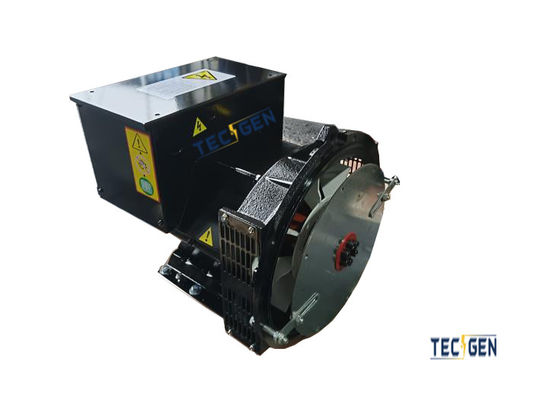

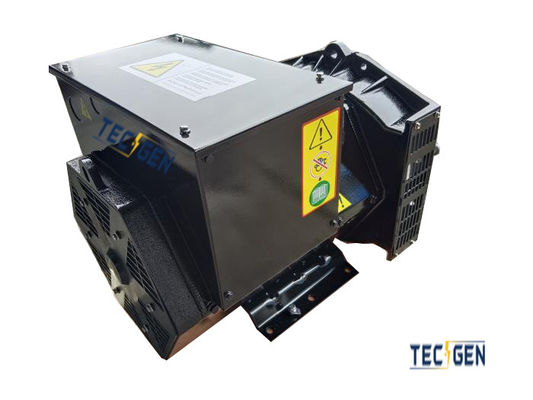

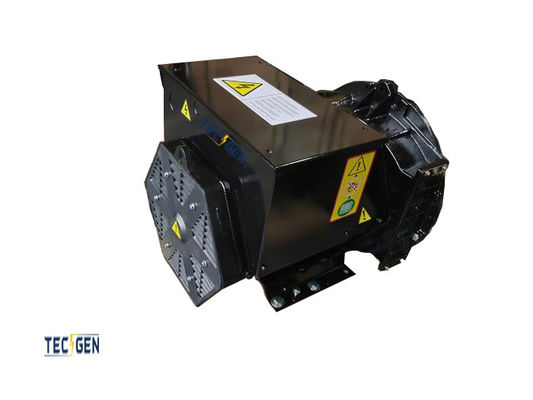

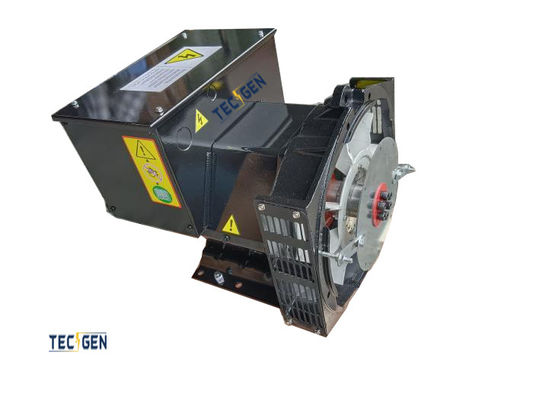

Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set

  • Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set
  • Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set
  • Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set
  • Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TGI Series
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 10000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product AC Synchronous Alternator Frequency 50Hz / 60Hz
Rate Speed 1500rpm / 1800rpm Voltage Voltage
Type Copy Stamford Phase Single Orthree Phase
Bearing Single Production Capacity 10000 Units Per Month
Highlight

ac synchronous alternator

,

3 phase synchronous alternator

,

ac synchronous alternator 15 kw
Leave a Message
Product Description

Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set



Distinctive Product Features of AC Synchronous Alternator:



  • Premium-grade 100% copper winding for unparalleled performance
  • High-grade insulation class H and IP23 rating for superior durability
  • Integrated Automatic Voltage Regulator (AVR) for stable voltage output
  • Versatile design with options for single or double bearing configurations
  • Wide power range spanning from 2kW to 1000kW to cater to diverse applications
  • Compliance with leading international standards including GB755-200, IEC60034-1, ISO8528-3, and VDE0530
  • Comprehensive system integration with main alternator, exciter, and exciter control systems for seamless operation
  • Brushless, self-excited, and automatic voltage regulation for hassle-free power generation
  • Compact design for easy installation and integration into various systems
  • High reliability and straightforward maintenance procedures for long-term usage
  • Compatibility with a range of engines for maximum flexibility and adaptability



Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set 0



AC AC Synchronous Alternator General Datasheets:



Model Prime Stand-by stator Single bearing Packed
400V/50Hz length size/Weight
KW KVA KW KVA L= mm m³ KGS
TGI164A 6.5 8 7 9 65mm 430*440*490 0.10 93
TGI164B 8.8 11 10 12 80mm 430*440*490 0.10 97
TGI164C 10.8 14 12 15 100mm 460*440*490 0.10 106
TGI164D 12.8 16 14 18 115mm 460*440*490 0.10 112
TGI184ES 15 19 17 21 135mm 520*490*510 0.13 130
TGI184E 18 23 20 25 150mm 520*490*510 0.13 138
TGI184F 22 28 24 30 190mm 610*490*510 0.16 161
TGI184G 25 31 28 34 230mm 610*490*510 0.16 177
TGI184H 30 38 33 41 255mm 670*490*510 0.17 222
TGI184J 34 43 37 47 285mm 670*490*510 0.17 235
TGI224C 34 43 37 47 130mm 720*490*770 0.27 242
TGI224D 40 50 44 55 160mm 720*490*770 0.27 265
TGI224E 48 60 53 66 180mm 810*490*770 0.31 288
TGI224F 58 73 64 80 240mm 810*490*770 0.31 320
TGI224G 68 85 76 95 300mm 860*490*770 0.33 365
TGI274C 80 100 88 110 165mm 810*580*850 0.40 390
TGI274D 96 120 104 130 205mm 810*580*850 0.40 427
TGI274ES 100 125 112 140 215mm 810*580*850 0.40 440
TGI274E 112 140 124 155 230mm 930*580*850 0.46 490
TGI274FS 120 150 132 165 250mm 930*580*850 0.46 510
TGI274F 128 160 140 175 285mm 930*580*850 0.46 530
TGI274G 146 183 160 200 335mm 980*580*850 0.49 593
TGI274H 160 200 176 220 375mm 1020*585*850 0.51 625
TGI274J 180 225 200 250 410mm 1110*585*850 0.55 660
TGI274K 200 250 220 275 450mm 1110*585*850 0.55 680
TGI314C 200 250 220 275 275mm 1150*680*930 0.73 851
TGI314D 240 300 264 330 340mm 1150*680*930 0.73 931
TGI314ES 260 325 288 360 410mm 1150*680*930 0.73 1022
TGI314E 280 350 308 385 370mm 1150*680*930 0.73 950
TGI314FS 304 380 336 420 500mm 1220*690*950 0.80 1150
TGI314F 320 400 352 440 450mm 1220*690*950 0.80 1150
TGI354C 360 450 400 500 350mm 1320*750*1050 1.04 1355
TGI354D 400 500 440 550 430mm 1370*780*1050 1.13 1380
TGI354E 488 610 536 670 500mm 1370*780*1050 1.13 1490
TGI354FS 500 625 560 700 440mm 1370*780*1050 1.13 1550
TGI354F 536 670 600 750 575mm 1370*780*1050 1.13 1640
TGI404B 600 750 660 825 355mm 1750*920*1360 2.19 1920
TGI404C 640 800 704 880 380mm 1750*920*1360 2.19 2015
TGI404D 728 910 800 1000 410mm 1750*920*1360 2.19 2102
TGI404E 800 1000 880 1100 470mm 1750*920*1360 2.19 2227
TGI404F 900 1125 1000 1250 560mm 1750*920*1360 2.19 2452
TGI404G 1000 1250 1100 1375 675mm 1780*920*1360 2.23 2820
TGI454B 1080 1350 1200 1500 465mm 1940*1050*1540 3.14 2900
TGI454C 1264 1580 1400 1750 550mm 1940*1050*1540 3.14 3091
TGI454D 1400 1750 1540 1925 620mm 2160*1050*1540 3.50 3391
TGI454E 1520 1900 1680 2100 700mm 2160*1050*1540 3.50 3629
TGI454F 1664 2080 1840 2300 770mm 2160*1050*1540 3.50 3913
TGI454G 1800 2250 2000 2500 820mm 2160*1050*1540 3.50 4127





Warranty Policy for AC Synchronous Alternator:



Our AC synchronous alternators are backed by a comprehensive warranty that covers defects in materials and workmanship for a duration of either 12 months or 1000 operating hours, whichever occurs first, from the date of delivery to the end user. This warranty excludes any damage to spare parts resulting from incorrect or improper manual operation. Rest assured, the warranty for our alternators is further supported by the engine and alternator suppliers, ensuring a seamless and reliable power solution.



Three phase ac synchronous alternator 15kW 25kW 30kW 40kW for diesel generating set 1



Advantages of AC Synchronous Alternator:



(1) rotors and stators feature 100% copper wiring for superior performance.

(2) Utilizes Wugang Brand 800 Series silicon steel, renowned for its high magnetic flux and low iron loss.

(3) Sturdy main frame and lead box crafted from quality steel.

(4) Components including stator, rotor, and excitation undergo double lacquering for enhanced durability.

(5) Premium nylon rope ensures safety and reliability in rotors and stators.

(6) Rotors undergo rigorous dynamic balance testing for precise balancing.

(7) Conformal coating provides an extra layer of protection to our materials, ensuring longer lifespan.
