60Hz Diesel Power Genset 22kW Chinese Diesel Engine Generator For Emergency Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG28YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz | Speed | 1800rpm |
|---|---|---|---|
| Cooling Method | Water Cooled | Alternator Type | AC Brushless Alternator |
| Prime Output | 20kW | Max Output | 22kW |
| Engine | YSD490D | HS Code | 8502110000 |
| Highlight | 60Hz diesel power genset,emergency use diesel power genset,Chinese engine diesel power genset |
||
Product Description

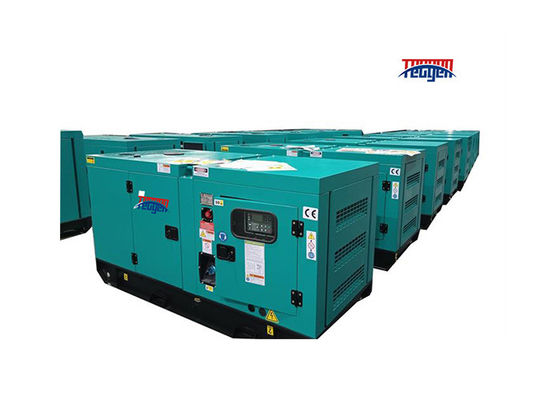

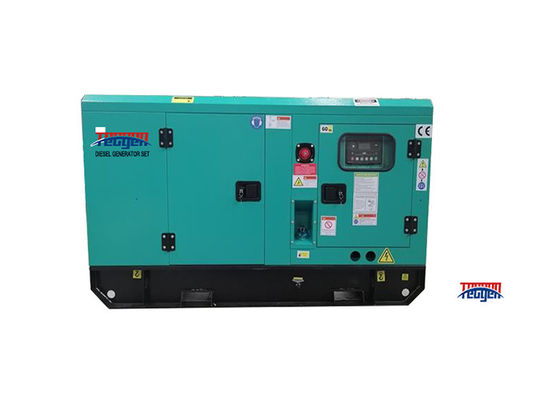

60Hz diesel power genset 22kW Chinese diesel engine generator for emergency use
Product Description for 60Hz Diesel Power Genset
Key Features:
- Powerful Chinese Diesel Engine: Equipped with a reliable Yangdong diesel engine, renowned for its powerful performance and durability.
- Efficient Alternator: Features a high-quality alternator that ensures stable and efficient power output for continuous operation.
- Smartgen Controller: Integrated with a Smartgen controller for automatic management and protection, ensuring smooth and safe operation.
- Silent/Super Silent Design: Minimizes noise levels, providing a quieter operational environment.
Standard Features:
- Forced Water Cooling System: Ensures optimal engine temperature for enhanced performance and durability.
- Overload & Short Circuit Protection: Prevents damage to the generator set, safeguarding against potential hazards.
- Easy Access Panels: Designed for convenient maintenance and repairs, reducing downtime and enhancing usability.
22kW 60Hz Diesel Power Genset Specifications:
| 60Hz Diesel Power Genset Technical Datasheets | ||||||
| Genset model | TG28YDSD6 | |||||
| Genset Type | Silent / Super Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 69.7A | |||||
| Prime Power | 20kW / 25kVA | |||||
| Standby Power | 22kW / 28kVA | |||||
| Diesel Engine | Brand | Yangdong | ||||
| Model | YSD490D | |||||
| AC Alternator | Brand | Tecgen Power | ||||
| Model | TGI184S20 | |||||
| Genset Controller | Brand | Smartgen | ||||
| Model | HGM6110N | |||||
| Genset Weight | 880kgs | |||||
| Genset Dimensions | L2100 * W 900 * 1000 | |||||
| Fuel Tank Capacity | 10 running hours | |||||
| Yangdong Diesel Engine Data | ||||||
| Brand | Yangdong | |||||
| Engine Model | YSD490D | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Aspiration | |||||
| Displacement | 2.54L | |||||
| Compression ratio | 18:1 | |||||
| Bore×Stroke | 90*100mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 25kW | |||||
| Standby Power | 28kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 247.5g/kwh@1800rpm | |||||
| AC Alternator Data | ||||||
| Brand | Tecgen Power | |||||
| Model | TGI184S20 | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 20kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | Smargen | ||||
| Model | HGM6110N | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for a range of applications, including power backup, emergency power supply, and off-grid power solutions across various industries and settings.
Options:
- Multiple Engine Brands: Choose from a variety of engines to suit your specific power requirements and budget.
- Customization: Customize the generator set according to your voltage, frequency, and output power needs for a perfect fit.
Warranty:
Offered for 18 months or 1500 hours, whichever comes first, providing peace of mind and ensuring long-term reliability.
FAQ:
- Q: What is the warranty period for the generator set?
A: The warranty period is 18 months or 1500 hours, depending on which comes first. - Q: Can the generator set be customized?
A: Yes, we offer customization options to meet your specific power requirements.
With its robust Chinese diesel engine and high-quality alternator, our 60Hz diesel power genset is the ultimate choice for reliable and efficient power supply. Contact us today for more information and ordering details!
