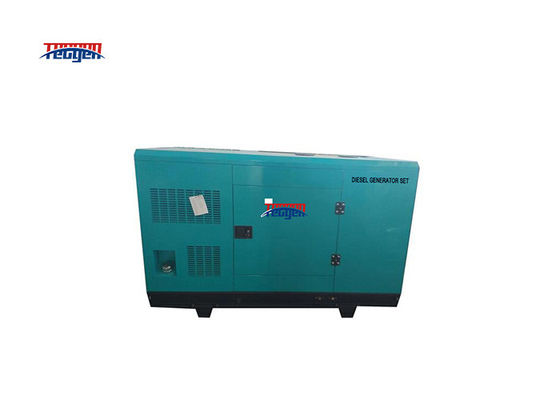

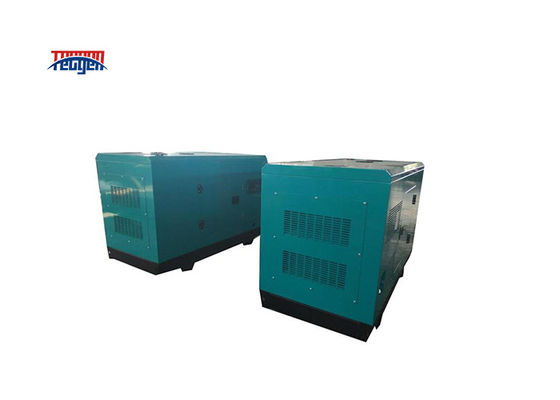

26kVA Silent Diesel Generator 60Hz Generator Set For Back-up Power Market
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG29YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz | Type | Silent / Super Silent |
|---|---|---|---|
| Voltage | 480 / 256 / 220 / 208 / 120 / 110V | Prime Power | 26kVA |
| Max Power | 29kW | Engine | Yangdong Y490D |
| Engine Power | 28kW | Cylinder Of Engine | 4 Cylinder In Line |
| Highlight | 60Hz 26kVA silent diesel generator,26kVA Silent Diesel Generator,60Hz Generator Set |
||
Product Description
26kVA silent diesel generator 60Hz generator set for back-up power market
Product Description for 26kVA Silent Diesel Generator
Key Features:
- Powerful & Efficient: Equipped with a reliable Yangdong diesel engine, delivering up to 26kVA prime power.
- Ultra-Silent Operation: Silent/super silent design ensures minimal noise, ideal for noise-sensitive environments.
- Stable Frequency: 60Hz Generator Set ensures consistent and stable power output for sensitive equipment.
- Automatic Control: Smartgen controller for seamless operation and protection against various faults.
Standard Features:
- Forced Water Cooling: Ensures optimal engine temperature and longer lifespan.
- Overload Protection: Safeguards the generator from damage during overloads.
- Easy Access Panels: Facilitates quick maintenance and repairs.
26kVA Silent Diesel Generator Datasheets:
| 26kVA Silent Diesel Generator Technical Datasheets | ||||||
| Genset model | TG29YDSD6 | |||||
| Genset Type | Silent / Super Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 64.2A | |||||
| Prime Power | 21kW / 26kVA | |||||
| Standby Power | 23kW / 29kVA | |||||
| Diesel Engine | Brand | Yangdong | ||||
| Model | Y490D | |||||
| AC Alternator | Brand | Tecgen Power | ||||
| Model | TGI184S21 | |||||
| Genset Controller | Brand | Smartgen | ||||
| Model | HGM6110N | |||||
| Genset Weight | 900kgs | |||||
| Genset Dimensions | L2100 * W 900 * 1000 | |||||
| Fuel Tank Capacity | 10 running hours | |||||
| Yangdong Diesel Engine Data | ||||||
| Brand | Yangdong | |||||
| Engine Model | Y490D | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Aspiration | |||||
| Displacement | 2.67L | |||||
| Compression ratio | 18:1 | |||||
| Bore×Stroke | 90*105mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 28kW | |||||
| Standby Power | 31kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 243g/kwh@1800rpm | |||||
| AC Alternator Data | ||||||
| Brand | Tecgen Power | |||||
| Model | TGI184S21 | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 21kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | Smargen | ||||
| Model | HGM6110N | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for hospitals, banks, data centers, and other critical power applications where reliable and silent power is paramount.
Options:
- Customization: Available to meet specific voltage, frequency, and output power needs.
- Additional Accessories: Including ATS (Automatic Transfer Switch) for seamless power transfer.
Warranty:
Backed by an extensive 18-month or 1500-hour warranty, guaranteeing peace of mind and reliable performance.
FAQ:
- Q: How silent is the generator?
A: It is designed for ultra-silent operation, providing a comfortable environment. Exact noise levels are available upon request. - Q: Can the generator be customized?
A: Yes, we offer customization options to suit your specific needs. Contact us for more details.
With its robust construction, high-efficiency, and silent operation, this 26kVA Silent Diesel Generator is the perfect choice for your power needs. Contact us now for more information and to order yours!
