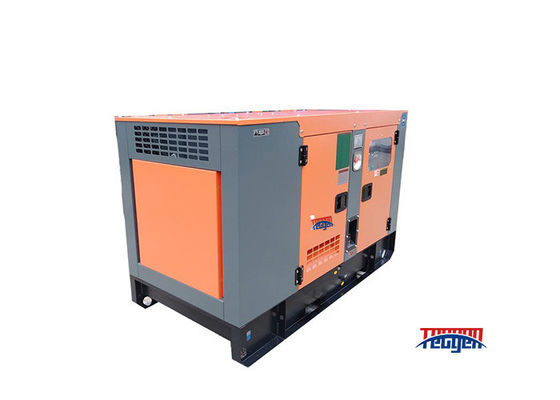

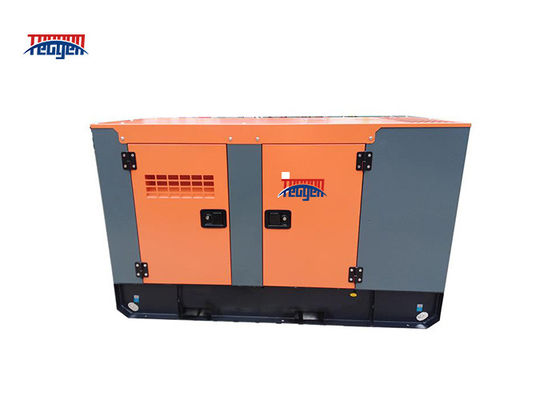

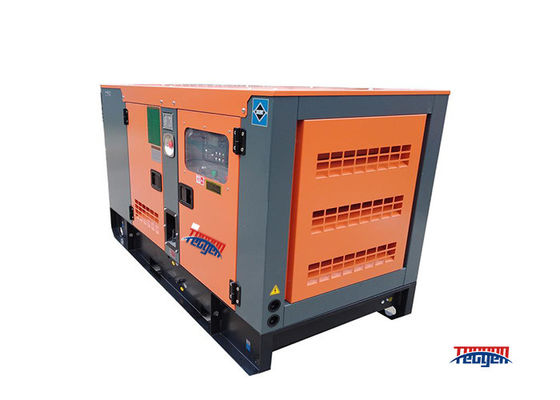

60Hz Diesel Generators 16kVA Yangdong Genset Silent Type With 18 Months Warranty
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG18YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | 2000$ |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Color | RAL Or Customed |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Prime Power | 16kVA |
| Standby Power | 18kVA | Engine | Yangdong YD480D |
| Engine Power | 16kW / 18kW | Output Type | AC Three Phase Or Single Phase |
| Highlight | Yangdong genset 60Hz diesel generators,silent 60Hz diesel generators,18 months warranty 60Hz diesel generators |
||
Product Description
60Hz diesel generators 16kVA Yangdong genset silent type with 18 months warranty
Product Description for 60Hz Diesel Generators
Key Features:
- 60Hz Stable Frequency: Ensures smooth and reliable power output for sensitive equipment.
- Yangdong Genset: High-performance diesel engine for exceptional durability and efficiency.
- Silent Operation: Low noise design ideal for noise-sensitive environments.
- AC Three-Phase Output: Perfect for balanced power supply in industrial and commercial settings.
Standard Features:
- Rated Voltage Options: 440V, 415V, 400V, 380V, 230V, 220V, 110V to cater to diverse power needs.
- 1800rpm Operating Speed: Ensures optimal power generation and engine longevity.
- Automatic Voltage Regulation: Maintains stable voltage output under varying loads.
- Easy-to-Use Control Panel: User-friendly interface for seamless operation and monitoring.
16kVA 60Hz Diesel Generator Technical Specifications:
| 60Hz Diesel Generator Technical Datasheets | ||||||
| Genset model | TG18YDSD6 | |||||
| Genset Type | Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 19.2A | |||||
| Prime Power | 13kW / 16kVA | |||||
| Standby Power | 14kW / 18kVA | |||||
| Diesel Engine | Brand | Yangdong | ||||
| Model | YD480D | |||||
| AC Alternator | Brand | Tecgen Power | ||||
| Model | TGI164S13 | |||||
| Genset Controller | Brand | Smartgen | ||||
| Model | HGM6110N | |||||
| Genset Weight | 755kgs | |||||
| Genset Dimensions | L2100 * W 900 * 1000 | |||||
| Fuel Tank Capacity | 10 running hours | |||||
| Yangdong Diesel Engine Data | ||||||
| Brand | Yangdong | |||||
| Engine Model | YD480D | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Aspiration | |||||
| Displacement | 1.809L | |||||
| Compression ratio | 18:1 | |||||
| Bore×Stroke | 80*90mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 16kW | |||||
| Standby Power | 18kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 250g/kwh@1800rpm | |||||
| AC Alternator Data | ||||||
| Brand | Tecgen Power | |||||
| Model | TGI164S13 | |||||
| Frequency/speed | 50HZ/1800RPM | |||||
| Rate Output | 13kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | Smargen | ||||
| Model | HGM6110N | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
- Ideal for power backup in hospitals, hotels, factories, and other critical facilities.
- Can be used as a primary power source in remote locations or construction sites.
Options:
- Available in both open and silent enclosure configurations.
- Customizable power ratings to meet specific project requirements.
Warranty:
- 18 months or 1500 hours, whichever comes first, to ensure peace of mind and continued performance.
FAQ:
- Q: What is the fuel tank capacity of the generator?
- A: The fuel tank capacity is sufficient for 10 running hours, ensuring uninterrupted power supply.
- Q: What is the power factor of the generator?
- A: The power factor is 0.8, providing efficient and balanced power output.
- Q: Is the generator easy to maintain?
- A: Yes, the modular design allows for easy access and maintenance of all components.
With its reliable performance, efficient fuel consumption, and user-friendly controls, our 60Hz Diesel Generators with Yangdong Genset are the perfect choice for your power generation needs. Contact us today for more information and to discuss your specific requirements.
