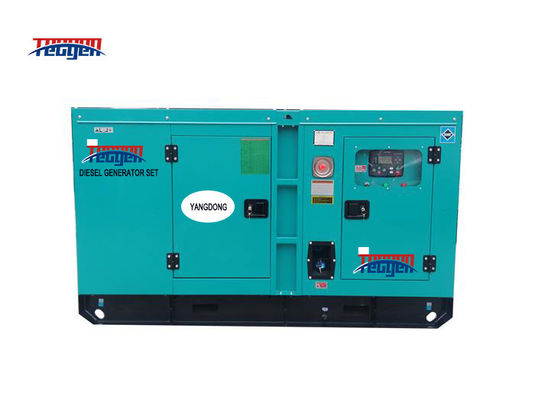

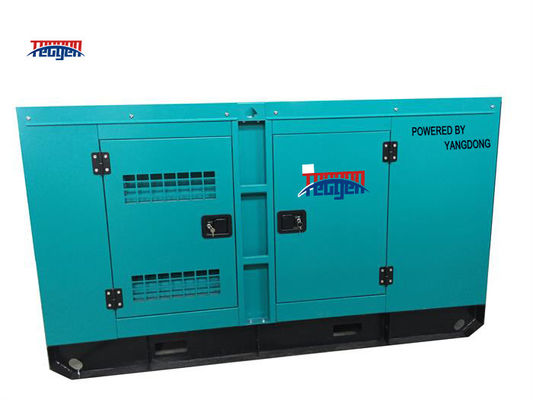

Silent Type Diesel Generator Standby 55kva Silent Type Generator Powered By Yangdong Engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG55YDS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 Units Per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Type Diesel Generator | Frequency | 50Hz / 1500rpm |
|---|---|---|---|
| Voltage | 440V//415V/400V/380V/230V/220V/110V | Engine Brand | Yandgong |
| Engine Model | Y4105ZLD | Breaker | Delixi Or CHNT |
| Max Power | 44kW / 55kVA | Fuel Tank | 8 Running Hours |
| Highlight | Yangdong Engine silent type diesel generator,standby silent type diesel generator,55kva silent type diesel generator |
||
Product Description
Silent type diesel generator standby 55kva silent type generator powered by Yangdong Engine
Product Description for Silent Type Diesel Generator
Key Features:
- Ultra-Silent Operation: Designed for whisper-quiet performance, ideal for noise-sensitive environments.
- Powerful Output: Delivers reliable power for various applications, ensuring seamless operation.
- High Efficiency: Optimized engine and alternator combination for maximum fuel efficiency and longer lifespan.
Standard Features:
- Durable Construction: Robust design with corrosion-resistant materials for long-term durability.
- Automatic Control: Intelligent controller for easy monitoring and protection against faults.
- Easy Maintenance: Modular design for simplified access and maintenance.
Standby 55kVA Silent Type Diesel Generator Specifications:
| Silent Type Diesel Generator Technical Datasheets | ||||||
| Genset model | TG55YDS | |||||
| Genset Type | Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 76.0A | |||||
| Prime Power | 40kW / 50kVA | |||||
| Standby Power | 44kW / 55kVA | |||||
| Diesel Engine | Brand | Yangdong | ||||
| Model | Y4105ZLD | |||||
| AC Alternator | Brand | Tecgen Power | ||||
| Model | TGI224S40 | |||||
| Genset Controller | Brand | Smartgen | ||||
| Model | HGM6110N | |||||
| Genset Weight | 830kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1250 | |||||
| Fuel Tank Capacity | 8 running hours | |||||
| Yangdong Diesel Engine Data | ||||||
| Brand | Yangdong | |||||
| Engine Model | Y4105ZLD | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Intercooled | |||||
| Displacement | 3.875L | |||||
| Compression ratio | N.A | |||||
| Bore×Stroke | 102*118mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 48kW | |||||
| Standby Power | 53kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
| AC Alternator Data | ||||||
| Brand | Tecgen Power | |||||
| Model | TGI224S40 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 50kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | Smargen | ||||
| Model | HGM6110N | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Suitable for hospitals, construction sites, remote locations, and anywhere where a reliable and silent power source is required.
Options:
- Customization: Available in various power ratings and voltage configurations to suit your specific needs.
- Additional Accessories: Including ATS (Automatic Transfer Switch) and soundproof canopies for enhanced noise reduction.
Warranty:
Backed by a comprehensive 18-month or 1500-hour warranty, ensuring peace of mind and reliable performance.
FAQ:
- Q: How silent is the generator?
A: It is designed for ultra-silent operation, making it suitable for noise-sensitive environments. - Q: Can the generator be customized?
A: Yes, we offer customization options to suit your specific power requirements and voltage configurations.
With its silent operation, powerful output, and durable construction, our Silent Type Diesel Generator is the perfect solution for your power needs. Contact us now for more information and to order yours!
