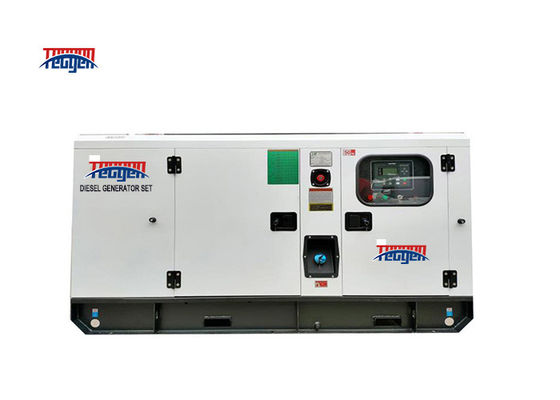

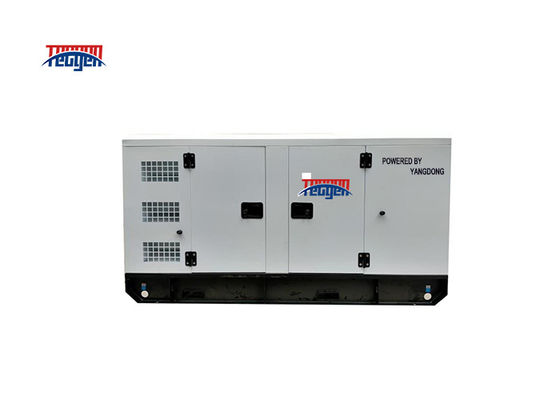

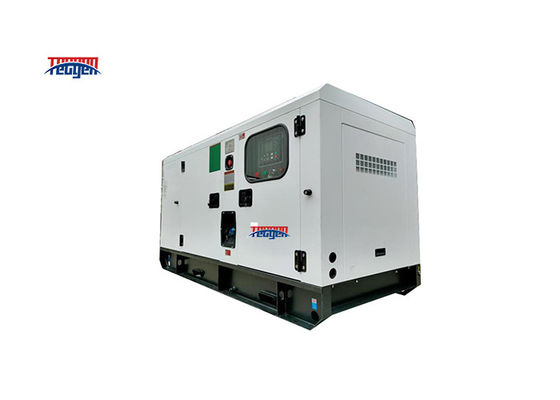

60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine

  • 60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine
  • 60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine
  • 60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TG25YDSD6
Minimum Order Quantity One Set
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C
Supply Ability 100 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Silent / Soundproof / Super Silent Frequency 60Hz / 1800rpm
Engine Brand Yangdong Engine Model YND490D
Alternator Copy Stamford Genset Output Standby 25kVA
Output Type AC Three Phase Or Single Phase Noise Level 70dB (A) At 7m
Highlight

25kVA 60Hz diesel generator set

,

Yangdong Diesel Generator Set

,

4 Cylinder Diesel Generator Set
Leave a Message
Product Description

60Hz diesel generator set Max 25kVA Yangdong generator with 4 Cylinder water cooled engine



Product Description for 60Hz Diesel Generator Set



Key Features:



  • Powerful & Efficient: Equipped with a Yangdong diesel engine, our 60Hz diesel generator set delivers reliable and efficient power output, ensuring stable and continuous power supply.
  • Silent Operation: The silent/super silent design significantly reduces noise levels, making it suitable for various applications where noise is a concern.
  • Versatile Voltage Options: With multiple voltage options available, the generator set can meet the power needs of different electrical devices and systems.
  • Easy to Operate: User-friendly controls and intuitive interfaces make it easy to operate and monitor the generator set's performance.





Standard Features:



  • HGM6110N Controller: Equipped with a Smartgen controller for automatic management and protection, ensuring safe and reliable operation.
  • Forced Water Cooling: Ensures optimal engine temperature and extends the lifespan of the generator set.
  • Durable Construction: High-quality materials and components ensure durability and long-term performance.
  • Protection Against Overload & Short Circuit: Protects the generator set from damage caused by overload or short circuit.



60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine 0



Max 25kVA 60Hz Diesel Generator Set Specifications:



60Hz Diesel Generator Set Technical Datasheets
Genset model TG25YDSD6
Genset Type Silent / Super Silent
Rated Voltage 440V//415V/400V/380V/230V/220V/110V
Frequency 60Hz
Speed 1800rpm
Output Type AC Three Phase
P.F(COS) P.F. 0.8
Prime Output Current 60.4A
Prime Power 18kW / 23kVA
Standby Power 20kW / 25kVA
Diesel Engine Brand Yangdong
Model YND490D
AC Alternator Brand Tecgen Power
Model TGI184S18
Genset Controller Brand Smartgen
Model HGM6110N
Genset Weight 865kgs
Genset Dimensions L2100 * W 900 * 1000
Fuel Tank Capacity 10 running hours
Yangdong Diesel Engine Data
Brand Yangdong
Engine Model YND490D
Number of Cylinders 4 Cylinder in Line
Cycle 4-troke
Aspiration Natural Aspiration
Displacement 2.54L
Compression ratio 18:1
Bore×Stroke 90*100mm
Speed 1800rpm
Prime Power 25kW
Standby Power 28kW
Speed Governor MECH or Electrical
Cooling System Forced water cooling cycle
Starting system DC Motor
Fuel Consumption at 100% Load 247.5g/kwh@1800rpm
AC Alternator Data
Brand Tecgen Power
Model TGI184S18
Frequency/speed 60HZ/1800RPM
Rate Output 18kW
No. of Phase 3 Phase, 4 Wire
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23
Working Condition Below 1000m
Bearing Single
Coupling Direct
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Genset Controller System
Controller System Brand Smargen
Model HGM6110N
Functions Auto Mains (Utility) Failure
Static with auto. battery charger
Emergency stop push button
ATS & RS485 Connection
CAN Functions
Diesel Generator Set Output ranges & Brand Options
Prime Power (kW) Diesel Engine AC Alternator Controller Type
8kW ~ 2400kW Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin

Leroy Somer /

Stamford /

Mecc Alte /

Tecgen



 DEIF Open/Silent
7kW ~ 320kW Yangdong / FAWDE / Quanchai / YTO Tecgen Smartgen
11kW ~ 104kW Beinei Aircooled Tecgen
10kW ~ 300kW Weifang Ricardo Stamford DEEPSEA
6.8kW ~ 2000kW Caterpillar Caterpillar Caterpillar
6.8kW ~ 2000kW FG Wilson FG Wilson FG Wilson
17kW ~ 30kW Isuzu Mecc Alte ComAp
210kW ~ 818kW VMAN Tecgen Tecegn
6kW ~ 2000kW Chinese Engines Smartgen





Usage:


Ideal for a wide range of applications, including power backup, emergency power supply, and off-grid power solutions in industrial, commercial, and residential settings.



60Hz Diesel Generator Set Max 25kVA Yangdong Generator With 4 Cylinder Water Cooled Engine 1



Options:



  • Multiple Engine Brands: Choose from a variety of engine brands, including Cummins, Perkins, Deutz, and more, to suit your specific power requirements.
  • Customization: Customize the generator set according to your specific needs, including voltage, frequency, and output power.





Warranty:


We offer a warranty of 18 months or 1500 hours, whichever comes first, to ensure your peace of mind and satisfaction with our product.





FAQ:



  • Q: What is the noise level of the generator set?
    A: The generator set features a silent/super silent design, significantly reducing noise levels for a quieter operation.
  • Q: How easy is it to operate the generator set?
    A: The generator set is designed with user-friendly controls and interfaces, making it easy to operate and monitor its performance.
  • Q: What is the warranty period for the generator set?
    A: We offer a warranty of 18 months or 1500 hours, depending on which comes first, to ensure your satisfaction with our product.





By choosing our 60Hz diesel generator set with Yangdong generator, you can enjoy reliable and efficient power supply with peace of mind. Contact us today for more information and ordering details!
