Silent Diesel Generator Set 75kVA Low Noise Generator With Yangdong Engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG83YDS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Diesel Generator Set | Type | Low Noise Generator |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Brand | Yangdong |
| Engine Model | Y4110ZLD | Alternator | Copy Stamford |
| Controller | Smartgen HGM6110N | Fuel Consumption At 100% Load | 207g/kwh@1500rpm |
| Highlight | 75kVA Silent diesel generator set,Yangdong engine Silent diesel generator set,low noise Silent diesel generator set |
||
Product Description

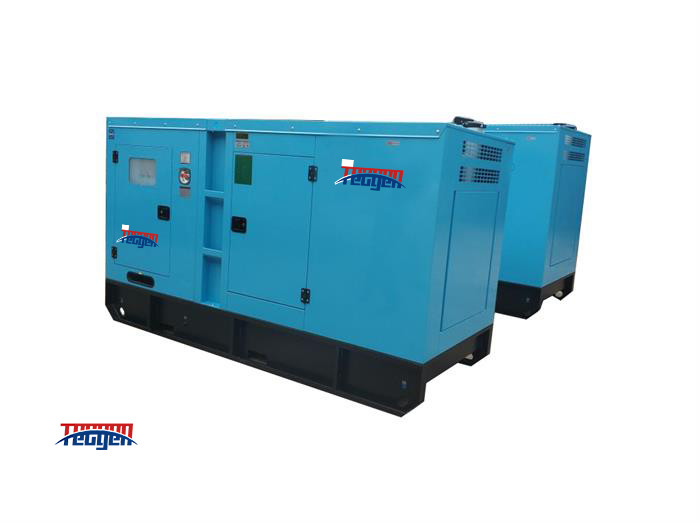

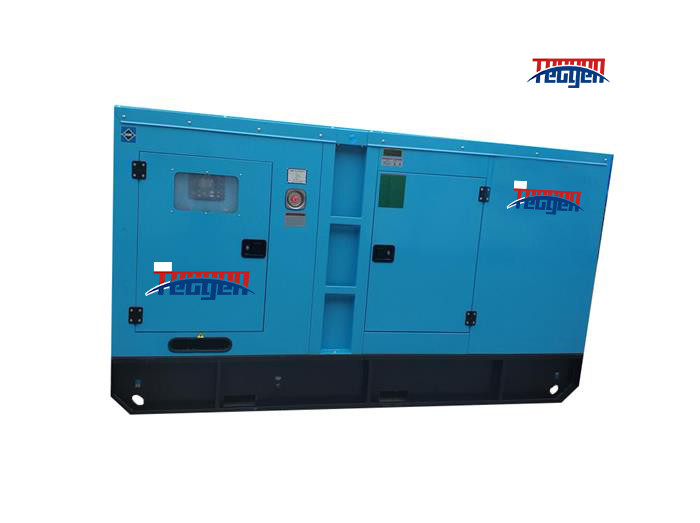

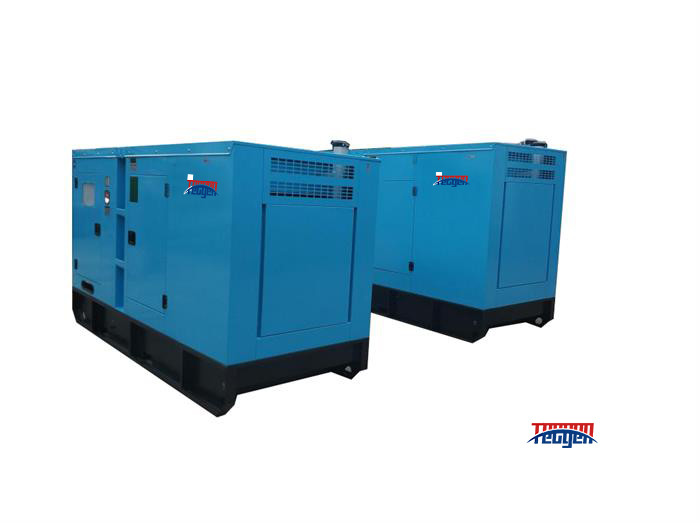

Silent diesel generator set 75kVA low noise generator with Yangdong engine
Product Description: Silent Diesel Generator Set
Introducing our top-tier Silent Diesel Generator Set, the ultimate solution for noise-sensitive environments. This generator set is designed to deliver reliable power with minimal noise, making it ideal for home use and various business applications.
Key Features:
- Ultra-quiet operation, providing low noise generator performance.
- High-efficiency diesel engine for reliable and long-lasting power output.
- Durable AC alternator, ensuring stable and clean power supply.
- Compact and modular design for easy transportation and quick installation.
Standard Features:
- Complete with all necessary accessories for seamless setup and operation.
- User-friendly control panel for intuitive and convenient operation.
- Advanced safety features to protect both the operator and the equipment.
75kVA Silent Diesel Generator Set Technical Parameters:
| Silent Diesel Generator Set Technical Datasheets | ||||||
| Genset model | TG83YDS | |||||
| Genset Type | Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 104.3A | |||||
| Prime Power | 60kW / 75kVA | |||||
| Standby Power | 66kW / 83kVA | |||||
| Diesel Engine | Brand | Yangdong | ||||
| Model | Y4110ZLD | |||||
| AC Alternator | Brand | Tecgen Power | ||||
| Model | TGI224S60 | |||||
| Genset Controller | Brand | Smartgen | ||||
| Model | HGM6110N | |||||
| Genset Weight | 1500kgs | |||||
| Genset Dimensions | L2400 * W 1150 * 1400 | |||||
| Fuel Tank Capacity | 160L | |||||
| Yangdong Diesel Engine Data | ||||||
| Brand | Yangdong | |||||
| Engine Model | Y4110ZLD | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Intercooled | |||||
| Displacement | 4.4L | |||||
| Compression ratio | N.A | |||||
| Bore×Stroke | 110*118mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 80kW | |||||
| Standby Power | 88kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
| AC Alternator Data | ||||||
| Brand | Tecgen Power | |||||
| Model | TGI224S60 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 75kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | Smargen | ||||
| Model | HGM6110N | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Suitable for a wide range of applications, including home backup power, construction sites, events, and more. With its low noise generator capability, it seamlessly integrates into any environment without disturbing the peace.
Options:
Customize your generator set with a range of power ratings and specifications to meet your specific needs. Additional accessories, such as soundproof canopies and exhaust silencers, are also available for further noise reduction.
Warranty:
Backed by a comprehensive warranty of 18 months or 1500 operating hours, ensuring peace of mind and long-term performance.
FAQ:
- Q: What is the noise level of this generator set?
A: With its low noise generator design, it operates at ultra-quiet levels, making it suitable for noise-sensitive environments. - Q: Can the generator set be customized to my specific needs?
A: Yes, we offer a range of customization options, including power ratings and additional accessories, to meet your unique requirements.
Experience the power and quiet operation of our Silent Diesel Generator Set. Contact us today for more information and to place your order!
