50HZ 130KVA Standby Generator Set Powered By SDEC Diesel Engine With ATS
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | TECGEN SDEC Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG130SC |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood cases / Plastic film package in container |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Starting System | Electric Start | Option Equipments | ATS / Water Heater / Engine Heater |
|---|---|---|---|
| Type Option | Super Silent / Container Silent | Engine Brand | SDEC |
| Usage | Backup Power | Alternator Brand | Leroy Somer / Tecgen |
| Genset Type | Open / Silent | Genset Model | TG110SC |
| Highlight | ATS 130KVA Standby Generator Set,50HZ 130KVA Standby Generator Set,SDEC Diesel Engine Standby Generator Set |
||
Product Description

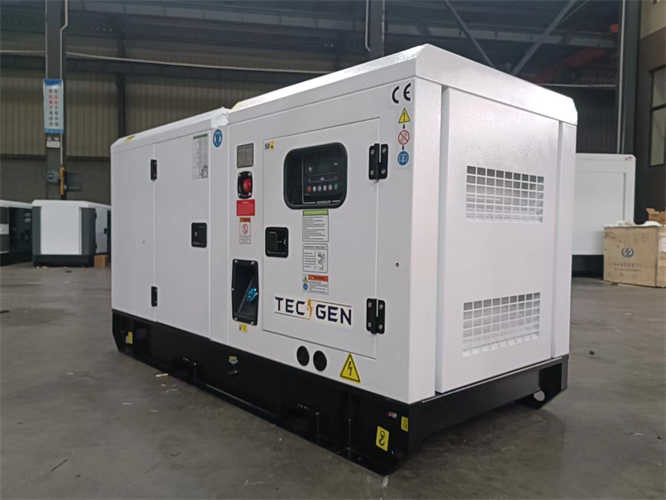

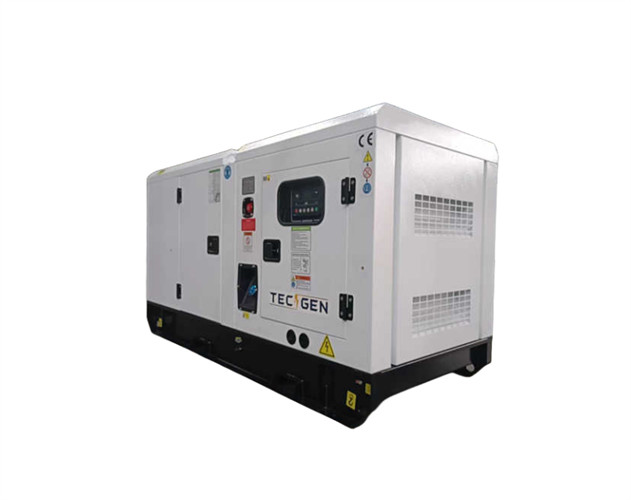

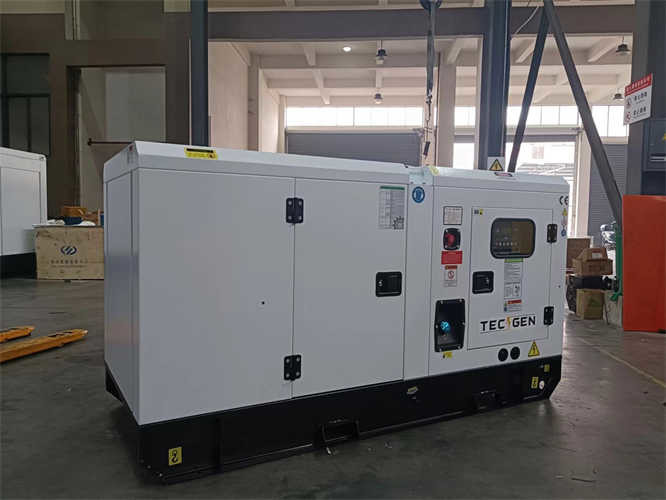

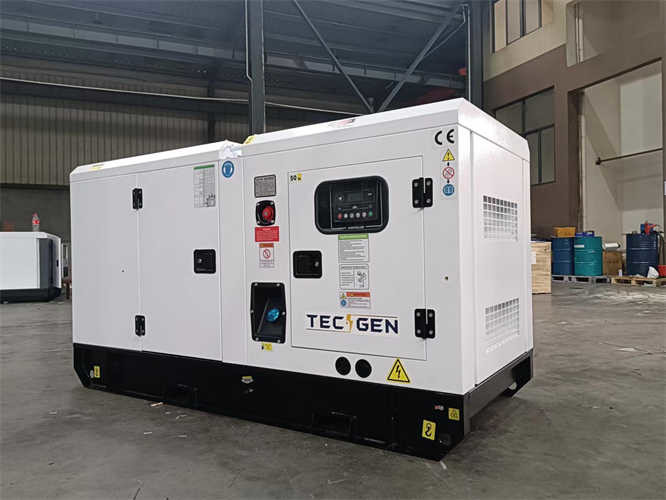

50HZ 130KVA Standby Generator Set Powered by SDEC Diesel Engine with ATS
Standby Output: 130kVA/105kW
Prime Output: 119kVA/95kW
Product Description:
Powered by strong and reliable SDEC Engine
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Features:
SDEC Generators Product Features:
1, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
2, Open type, silent type, super silent type or mobile type generator.
3, CE, ISO9001-2008, SONCAP, SASO and SGS certified
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG130SC |
| Prime Power | 119kVA/95kW | |
| Standby Power | 130kVA/105kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | SDEC | |
| Engine Model | SC4H160D2 | |
| Alternator Brand | Leroy Somer | |
| Alternator Model | TAL-A44-E | |
| Engine General Data | Engine Prime Power(kW) | 105 |
| Cyl / Arrangement | 4L | |
| Displacement(L) | 4.3 | |
| Bore×Stroke (mm×mm) | 105x124 | |
| Speed Governor | Electronic | |
| Fuel Consumption (g/kw.h)) | 195 | |
| Alternator Data | Model | TAL-A44-E |
| Brand | Leroy Somer | |
| Rate Output | 125kVA/100kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000m | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | DEIF(Denmark) |
| Model | SGC420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, ComAp,Smartgen | |
| Starting Voltage | 24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Applications:
SDEC Generators by TECGEN
Brand Name: TECGEN SDEC Genset
Model Number: TGSD
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Genset Type : Open / Silent
Usage: Backup Power
Engine brand: SDEC
Frequency: 50Hz/60Hz
Type Option: Super Silent / Container Silent
