Home Use Air Cooled Portable Diesel Generator 4.5kW Portable Silent Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Portable Diesel Generator | Cooling Method | Air Cooled |
|---|---|---|---|
| Prime Output | 4.5kW / 5kW | Frequency | 50Hz / 60Hz |
| Phase No. | Single Phase / Three Phase | Engine | 186FADE |
| Engine Type | Single-Cylinder,Vertical 4-Cycle,Air-cooled Diesel | DC Output（V/A） | 12/8.3 |
| Highlight | air cooled portable diesel generator,silent portable diesel generator,4.5kW portable diesel generator |
||
Product Description

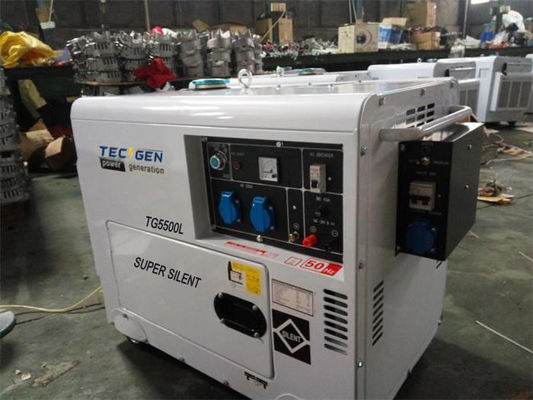

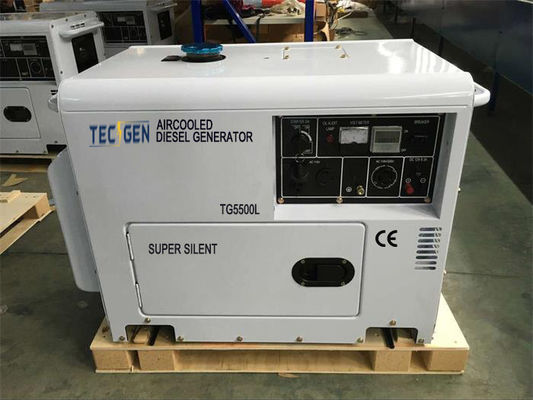

Home use air cooled portable diesel generator 4.5kW portable silent generator
Product Name: 4.5KW Portable Diesel Generator
Standard Features:
- Powerful 4.5KW rated output with a maximum output of 5KW for demanding applications.
- Available in both 50Hz and 60Hz frequencies to cater to global needs.
- Supports a wide range of rated AC voltages, making it compatible with various devices and appliances.
- Self-excited generator type ensures reliable and stable power output.
- Manual recoil starting system for simple and convenient operation.
- Low noise level of 75-77 dB at 7 meters for a comfortable user experience.
Key Features:
- Compact and lightweight design for easy portability and storage.
- Single or three-phase output options for increased flexibility.
- High-efficiency direct injection combustion system for better fuel utilization.
- Large 15-liter fuel tank capacity for extended operation time.
- Durable and reliable air-cooled diesel engine for long-term usage.
Specifications:
| 4.5KW Air Cooled Portable Diesel Generator Specifications | |||
| GENERATOR | Model | TG5500L | |
| Frequency(Hz) | 50 | 60 | |
| Rated output (kW) | 4.5 | 5 | |
| Max output (kW) | 5 | 5.5 | |
| Rated AC voltage(V) | 110,120,220,230,127/220,120/240,220/380,230/400 | ||
| Power factor(cosΦ) | 1/0.8 | ||
| DC output(V/A) | 12/8.3 | ||
| Phase | Single OR Three | ||
| Alternator type | Self-excited | ||
| Starting system | Recoil type hand starting | ||
| Noise level(at 7m)(dB) | 75-77 | ||
| Fuel tank capacity(L) | 15 | ||
| electrical machinery(D*L) | 190*140 | ||
| ENGINE | Model | 186FADE | |
| Engine type | Single-Cylinder,Vertical 4-Cycle,Air-cooled diesel | ||
| Bore*stroke(mm) | 86*72 | ||
| Displacement capacity(CC) | 418 | ||
| Fuel | 0# or-10# light diesel oil | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct injection | ||
| DIMENSIONS | PACKING Dimension(L*W*H)(mm) | 930*540*780 | |
| Gross weight(KG) | 150 | ||
| 20FT | 72 | ||
| 40HQ | 150 | ||
Usage:
The TDG5500L 4.5KW Portable Diesel Generator is ideal for a wide range of applications, including camping, RV use, emergency backup power, and construction sites. Its powerful output and versatility make it a perfect choice for both domestic and commercial use.
Options:
- Choose between 50Hz or 60Hz frequency based on your requirements.
- Select the desired rated AC voltage configuration to match your equipment's needs.
- Opt for single or three-phase output depending on your power requirements.
FAQ:
- Q: How long can the generator run on a full tank of fuel?
A: The 15-liter fuel tank capacity allows for extended operation time, but the exact runtime depends on the load and operating conditions. - Q: Is the generator noisy?
A: The noise level of the generator is 75-77 dB at 7 meters, which is relatively low compared to similar products. - Q: Can I use this generator for both home and commercial use?
A: Yes, the TDG5500L 4.5KW Portable Diesel Generator is suitable for both domestic and commercial applications due to its powerful output and versatility.
