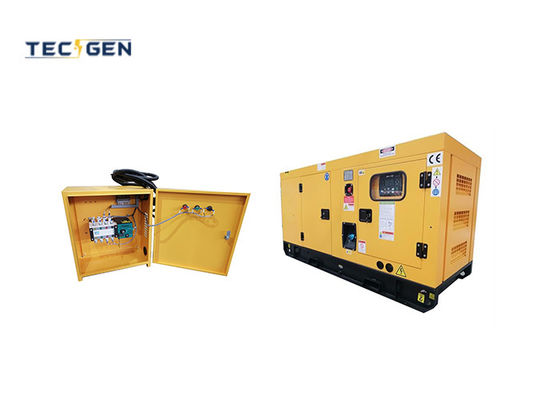

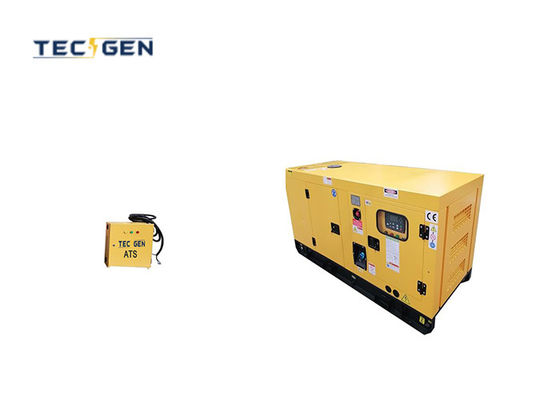

Back-up 9kW Diesel Electric Generator Set Silent Diesel Genset With 63A ATS Box

  • Back-up 9kW Diesel Electric Generator Set Silent Diesel Genset With 63A ATS Box
  • Back-up 9kW Diesel Electric Generator Set Silent Diesel Genset With 63A ATS Box
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG12YDSD6
Minimum Order Quantity 1 unit
Price 1955$ - 2200$
Packaging Details Stretch film packaging
Delivery Time 7 - 15 Working Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Of Unit Silent Frequency 60Hz
Speed 1800rpm Engine Brand Yangdong
Engine Model YD380D Engine Power Rate 12kw
ATS 63A ATS Box Prime Genset Power 9kW / 11kVA
Highlight

Back-up electric generator set

,

63A electric generator set

,

silent electric generator set
Leave a Message
Product Description

Back-up 9kW diesel electric generator set silent diesel genset with 63A ATS box





Standard Features:



Our Back-up 9kW Diesel Electric Generator Set (Model TG12YDSD6) is the ultimate solution for reliable backup power. Equipped with a YANGDONG YD380D diesel engine and a Tecgen TGI164S9 alternator, it offers a rated power of 9kW and a maximum power of 10kW. The genset operates at 60Hz and provides a rated voltage of 208/120V, making it suitable for a wide range of applications.





Key Features:



  • High Efficiency: The alternator boasts a 92.5% efficiency rating, ensuring minimal energy loss and maximum power output.
  • Durable Design: The four-stroke, water-cooled engine with direct injection offers excellent durability and long-term reliability.
  • Easy Operation: The MEBAY DC52D control system offers intuitive operation and advanced monitoring functions.
  • Environmentally Friendly: With low oil consumption and clean emissions, this genset is an environmentally responsible choice.



Back-up 9kW Diesel Electric Generator Set Silent Diesel Genset With 63A ATS Box 0



Back-up 9kW Diesel Electric Generator Set Specifications:





Back-up 9kW Diesel Electric Generator Set Specification
Genset Model TG12YDSD6
Rated Power 9kW / 11kVA
Max Power 10kW / 12kVA
Frequency 60Hz
Rated Voltage 208 / 120V
Rated Current (A) 31.2A
ATS 63A ATS
Dimension (mm) L1700 x W850 x H1000
Gross Weight (kg) 550
Diesel Engine Brand YANGDONG CO.,LTD
Model YD380D
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 12kW
Rated Speed (rpm) 1800rpm
Cylinder No. 3
Bore*Stroke (mm) 80 x 85
Displacement(L) 1.357
Intake Natural intake
Oil Consumption (g/Kw*h) 240@100% load
Starting method 24V DC
AC Alternator Brand Tecgen
Model TGI164S9
Rated Power 11kVA
Speed 1800rpm
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand MEBAY
Model DC52D
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √



Usage:



The Back-up 9kW Diesel Electric Generator Set is ideal for use in homes, small businesses, and industrial settings as a backup power source during power outages. It can also be used as a primary power source in remote locations or construction sites.



Back-up 9kW Diesel Electric Generator Set Silent Diesel Genset With 63A ATS Box 1



Advantages:



  • Robust Construction: The genset's sturdy construction ensures it can withstand harsh conditions and provide uninterrupted power.
  • Flexible Configuration: A range of optional extras allows you to customize the genset to your specific needs.
  • Excellent After-sales Support: We provide comprehensive after-sales service and support, ensuring your investment is well protected.





Options:



  • Integrated Fuel Tank: For extended runtime without the need for frequent refueling.
  • ATS Box/Cabinet: Automatic transfer switch for seamless power transition between the main grid and the generator.
  • PMG Alternator: For enhanced performance and reliability.





FAQs:



  • Q: How much does the genset weigh?
    A: The genset has a gross weight of 550kg.
  • Q: What is the oil consumption rate?
    A: The oil consumption rate is 240g/Kw*h at 100% load.
  • Q: Does it come with a warranty?
    A: Yes, we provide a comprehensive warranty on all our products.
