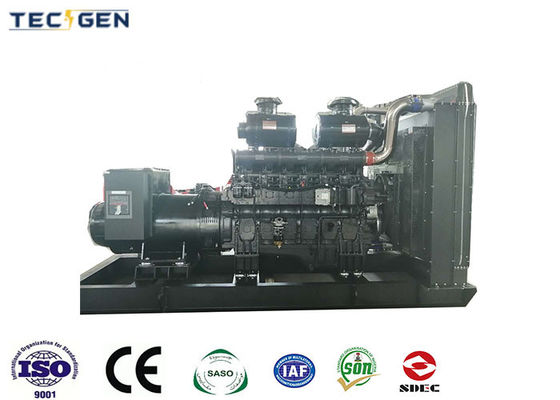

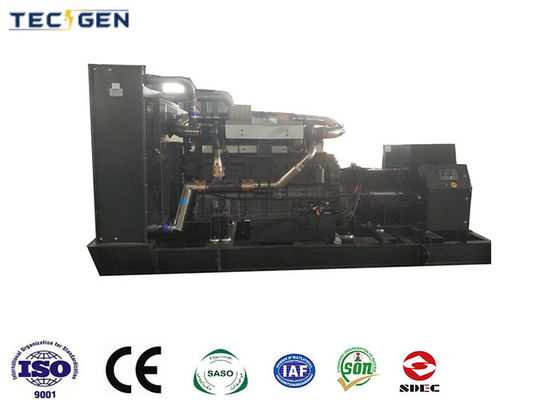

Open Type 688kVA Diesel Generating Set SDEC Generator Set For Back-up Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG756SD |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open | Product | SDEC Diesel Generating Set |
|---|---|---|---|
| Engine Brand | SDEC | Engine Model | SC27G900D2 |
| Cylinder | 12 Cylinder | Frequency | 50Hz |
| Prime Output | 550kW / 688kVA | Max Output | 605kW / 756kVA |
| Highlight | SDEC diesel generating set,back-up power diesel generating set,688kVA diesel generating set |
||
Product Description
Open Type 688kVA diesel generating set SDEC generator set for back-up power
Standard Features:
- Robust SC27G900D2 engine by SDEC, offering a rated output of 602KW/1500RPM for superior power generation.
- TGI354S550 AC alternator from Fujian Tecgen Power Co., Ltd, delivering a rated output of 688kVA.
- DEIF SGC-420 controller panel for precise monitoring and control of the generating set.
- Integrated fuel tank for convenient and uninterrupted operation.
- 3-phase, 4-wire connection for efficient power distribution.
- Brushless self-excited control system for reliable performance.
- Varta maintenance-free battery for hassle-free maintenance.
- Included silencer for reduced noise levels during operation.
- Multiple filters, including dry-type air filter, fuel filter, and oil filter, ensuring clean and efficient operation.
- 24V D.C automatic battery charger for convenient charging.
- Maximum 50-degree Celsius radiator for optimal cooling.
Key Features:
- Impressive power output: With a rated output of 688kVA, this generating set can meet the demands of various applications.
- High-quality components: The SC27G900D2 engine and TGI354S550 AC alternator provide exceptional performance and long-lasting durability.
- Efficient control: The DEIF SGC-420 controller enables precise monitoring and control, ensuring smooth operation and enhanced safety.
- Versatile connectivity: The 3-phase, 4-wire connection allows for easy integration into different electrical systems.
- Reliable protection: The generator set is equipped with IP23 protection and a single bearing for enhanced safety and longevity.
- User-friendly design: The integrated fuel tank, included silencer, and maintenance-free battery make operation and maintenance hassle-free.
Open Type 688kVA Diesel Generating Set Specifications:
| Open Type 688kVA Diesel Generating Set Specifications | |||||
| Model | Engine | AC Alternator | Controller | Output | |
| TG756SD | SC27G900D2 | TGI354S550 | DEIF SGC-420 | 688kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 688kVA Prime Diesel Electric Generating Set | |||||
| Engine Model | SC27G900D2 | ||||
| Alternator Mode | TGI354S550 | ||||
| Rated Output | 550kW / 688kVA | ||||
| Max Output | 605kW / 756kVA | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 957.2A | ||||
| Breaker | 1000A CHNT Breaker | ||||
| ATS | 1000A AISIKAI ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 92dB(A) | ||||
| Net Weight | 3800KGS | ||||
| Genset size | L3630 * W1400 * H1900mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 688kVA Prime Diesel Electric Generating Set | |||||
| Manufacture | SDEC | ||||
| Model | SC27G900D2 | ||||
| Rated Output/Speed | 602KW/1500RPM | ||||
| Standby Output/Speed | 662KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | Electric | ||||
| Engine Type | 12 cylinders in line | ||||
| Bore X Stroke | 135*155mm | ||||
| Displacement | 26 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 143.4 L / h | ||||
| Fuel Consumption/standby output | 157.7 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 688kVA Prime Diesel Electric Generating Set | |||||
| Alternator Model | TGI354S550 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 688kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 688kVA Prime Diesel Electric Generating Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
This Open Type 688kVA Diesel Generating Set is ideal for a wide range of applications, including industrial facilities, construction sites, commercial establishments, and emergency backup power. It provides a reliable and efficient source of electricity, ensuring uninterrupted operation and peace of mind.
Advantages:
- Unmatched Performance: Powered by the robust SC27G900D2 engine, this generator set delivers exceptional power output and reliable performance.
- Durability and Longevity: The high-quality components and advanced engineering ensure the set's longevity, even in demanding operational conditions.
- Easy Operation: The DEIF SGC-420 controller panel allows for user-friendly operation and precise control of the generating set.
- Efficient and Reliable: With its efficient fuel consumption and reliable power generation, this set offers cost-effective and uninterrupted operation.
- Versatile Options: Customize your generator set with options such as an integrated fuel tank, water heater, ATS, PMG generator, SYNC function, and 12/24 hours fuel tank to suit your specific requirements.
FAQ:
- Q: What is the power output of this generator set?
A: The Open Type 688kVA Diesel Generating Set offers a rated output of 688kVA. - Q: What is the brand of the engine?
A: The engine is manufactured by SDEC, known for its reliability and performance. - Q: Can this generator set be used for backup power?
A: Absolutely! This generator set is well-suited for both prime and standby power applications.
In summary, the Open Type 688kVA Diesel Generating Set is a high-performance and durable solution, designed to meet your power needs efficiently. With its advanced features, reliable components, and customizable options, it offers a versatile and dependable power generation solution. Choose the SDEC Generator Set today and experience the power of uninterrupted performance.
