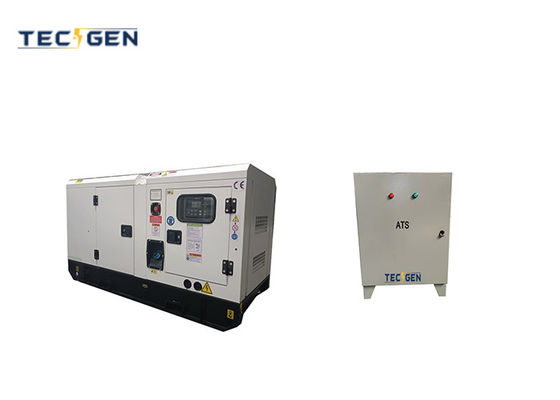

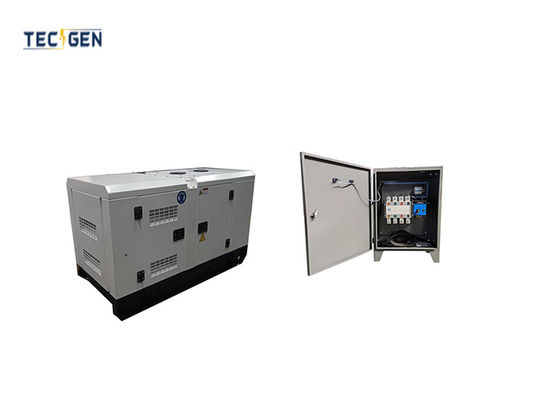

13kVA Chinese Engine Diesel Generator Set Yangdong Genset With 63A ATS For Back-up
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Product | Chinese Generator Set |
|---|---|---|---|
| Frequency | 60Hz | Speed | 1800rpm |
| Voltage | 208 / 120V | Engine | Yangdong YD385D |
| Rate Power Of Genset | 13kVA | ATS | 63A ATS Box |
| Highlight | 63A diesel generator Set,13kVA diesel generator Set,back-up diesel generator Set |
||
Product Description
13kVA Chinese engine diesel generator Set Yangdong genset with 63A ATS for back-up
Backup Power Solution for Critical Applications
Standard Features
- Robust YANGDONG YD385D diesel engine for reliable power output
- Tecgen TGI164S10 alternator with 92.50% efficiency
- Water-cooled, direct-injection system for optimal performance
- MEBAY DC52D control system for comprehensive protection and monitoring
Key Features & Advantages
- Powerful & Efficient: Our 13kVA Chinese Engine Diesel Generator Set delivers stable and reliable backup power for critical applications.
- Advanced Technology: Featuring a YANGDONG diesel engine and Tecgen alternator, this generator set offers the latest in power generation technology.
- Flexible Integration: Supports RS485 and CAN communication for seamless integration with your existing systems.
- Comprehensive Protection: The MEBAY DC52D control system provides comprehensive protection to ensure safe and reliable operation.
13kVA Chinese Engine Diesel Generator Set Specifications:
| 13kVA Chinese Engine Diesel Generator Set | |||||||||||||
| Genset Model | TG14YDSD6 | ||||||||||||
| Rated Power | 10kW / 13kVA | ||||||||||||
| Stanbdy Power | 11kW / 14kVA | ||||||||||||
| Frequency | 60Hz | ||||||||||||
| Rated Voltage | 208 / 120V | ||||||||||||
| Rated Current (A) | 34.7A | ||||||||||||
| ATS | 63A ATS BOX | ||||||||||||
| Dimension (mm) | L1900 x W900 x H1000 | ||||||||||||
| Gross Weight (kg) | 700 | ||||||||||||
| Diesel Engine | Brand | YANGDONG CO.,LTD | |||||||||||
| Model | YD385D | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Rated Power | 13kW | ||||||||||||
| Rated Speed (rpm) | 1800rpm | ||||||||||||
| Cylinder No. | 3 | ||||||||||||
| Bore*Stroke (mm) | 85 x 90 | ||||||||||||
| Displacement(L) | 1.532 | ||||||||||||
| Intake | Natural intake | ||||||||||||
| Oil Consumption (g/Kw*h) | 240@100% load | ||||||||||||
| Starting method | 24V DC | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI164S10 | ||||||||||||
| Rated Power | 11kVA | ||||||||||||
| Speed | 1800rpm | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | MEBAY | |||||||||||
| Model | DC52D | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage
Ideal for hospitals, data centers, industrial plants, and other facilities that require a reliable backup generator set.
Options
- Integrated-Fuel-Tank
- ATS Box / Cabinet
- PMG Alternator
- Sync Panel
- Trailer Type
- Engine Heater
- Water Heater
- Fuel-Water Separator
FAQs
- Q: What is the power rating of this generator set?
- A: This generator set produces 13kVA of rated power, making it a powerful backup generator set.
- Q: What is the key benefit of this generator set?
- A: Its reliable power output and advanced features ensure continuous and stable backup power for critical applications.
- Q: How can I monitor the generator set remotely?
- A: The MEBAY DC52D control system supports RS485 and CAN communication for remote monitoring and control.
Conclusion
The 13kVA Chinese Engine Diesel Generator Set is your ideal backup generator set solution. With its powerful engine, efficient alternator, and comprehensive features, it provides reliable backup power for your critical applications. Contact us today for more information and pricing.
