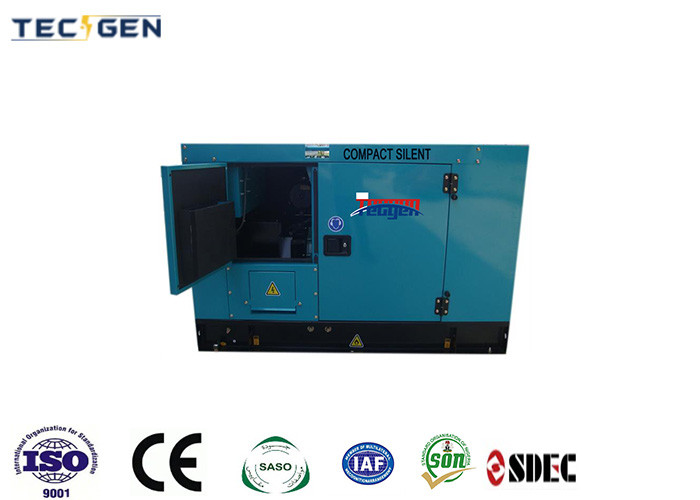

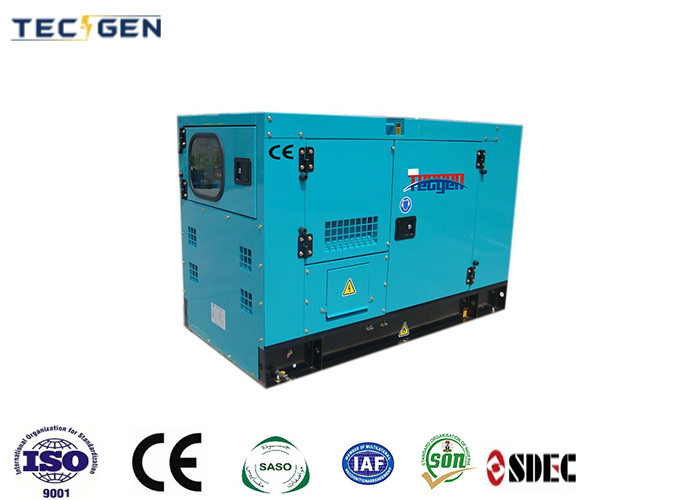

Compact 11kW silent genset 3 cylinder diesel genset powered by SDEC diesel engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Compact Silent | Product | Compact Silent Genset |
|---|---|---|---|
| Engine Brand | SDEC | Engine Model | 3ZT1.1-G42 |
| No Of Cylinder | 3 Cylinder | Displacement | 1.1L |
| Engine Power | 12kW | Genset Max Power | 11kW |
| Highlight | 3 cylinder Compact silent genset,11kW Compact silent genset,SDEC diesel engine Compact silent genset |
||
Product Description
Compact 11kW silent genset 3 cylinder diesel genset powered by SDEC diesel engine
Introducing our Compact 11kW Silent Genset - the perfect solution for your power generation needs. With its advanced features and reliable performance, this 3-cylinder diesel genset is designed to deliver outstanding results in a compact package.
Standard Features:
- Aluminum water tank with a maximum temperature of 50℃ ensures efficient cooling.
- The DEIF SGC-420 controller panel provides precise monitoring and control of the genset.
- Varta Maintenance-free Battery for hassle-free operation.
- Included silencer for noise reduction.
- Dry type air filter, fuel filter, and oil filter for optimal engine performance.
- 24V D.C automatic battery charger for effortless maintenance.
- Max. 50 degrees Celsius radiator for enhanced cooling efficiency.
- Batteries, rack, and cable included for easy installation.
- Ripple flex exhaust pipe, flange, and muffler for efficient exhaust management.
Key Features:
- Engine Model: 3ZT1.1-G42, a powerful 3-cylinder engine with a displacement of 1.1 L.
- TAL-A40-C Alternator manufactured by Leroy Somer, delivering a reliable output of 10kW.
- AC24V Alternator (Dynamo) for consistent power generation.
- Compact design with dimensions of L1850 * W700 * H1000mm, making it easy to install in tight spaces.
- Rated voltage of 220/380V and frequency of 50 HZ, suitable for various applications.
- Excellent voltage and frequency regulation rates for stable power supply.
- Low fuel consumption of 2.4 L/h at rated output, ensuring cost-effective operation.
- High-quality construction and materials for durability and long-term performance.
Compact 11kW Silent Genset Specifications:
| Compact 11kW Silent Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG14SDS | 3ZT1.1-G42 | TAL-A40-C | DEIF SGC-420 | 11kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 3 cylinder 11kW SDEC Genset | |||||
| Engine Model | 3ZT1.1-G42 | ||||
| Alternator Mode | TAL-A40-C | ||||
| Rated Output | 11kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 19.8A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 68dB(A) | ||||
| Net Weight | 650KGS | ||||
| Genset size | L1850 * W700 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 3 cylinder 11kW SDEC Genset | |||||
| Manufacture | SDEC | ||||
| Model | 3ZT1.1-G42 | ||||
| Rated Output/Speed | 12KW/1500RPM | ||||
| Standby Output/Speed | 14KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 3 cylinders in line | ||||
| Bore X Stroke | 78*78.4mm | ||||
| Displacement | 1.1 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 2.4 L / h | ||||
| Fuel Consumption/standby output | 2.7 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 3 cylinder 11kW SDEC Genset | |||||
| Alternator Model | TAL-A40-C | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 10kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 3 cylinder 11kW SDEC Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Our Compact 11kW Silent Genset is ideal for a wide range of applications, including residential, commercial, and industrial settings. It provides a reliable and uninterrupted power supply, making it suitable for backup power during electrical outages or as the primary power source in remote locations.
Advantages:
- Silent operation with a noise level of 68dB(A) @7m, ensuring a peaceful environment.
- Efficient cooling system with an aluminum water tank, preventing overheating and ensuring optimal performance.
- Advanced DEIF SGC-420 controller panel for easy monitoring and precise control.
- Compact design allows for easy installation in limited spaces.
- Low fuel consumption ensures cost-effective operation and reduced environmental impact.
- High-quality components and construction guarantee durability and long-term reliability.
Option:
- Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, and 12/24 Hours Fuel Tank.
- 3000 hours Spare Parts package available for extended maintenance and support.
FAQ:
Q: What is the power output of the Compact 11kW Silent Genset?
A: The genset has a rated output of 11kW, making it suitable for various power requirements.
Q: What is the noise level during operation?
A: The genset operates quietly with a noise level of 68dB(A) @7m, ensuring a peaceful environment.
Q: Can it be used as a backup power source?
A: Absolutely! The genset is designed to provide reliable backup power during electrical outages.
Q: Is installation complicated?
A: Not at all. The compact design allows for easy installation even in limited spaces.
With our Compact 11kW Silent Genset, you can enjoy a reliable and efficient power supply in any setting. Its compact size, advanced features, and outstanding performance make it an excellent choice for your power generation needs. Invest in this 3-cylinder diesel genset and experience the difference it makes in providing reliable power whenever you need it.
