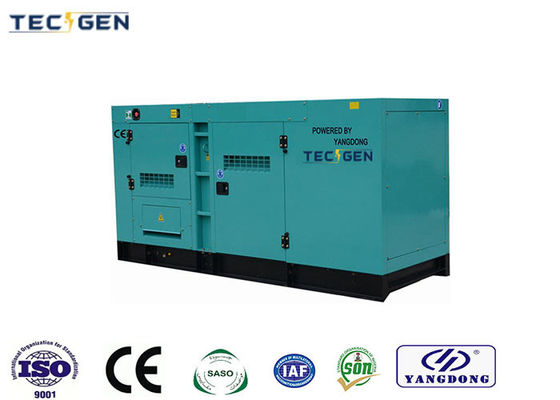

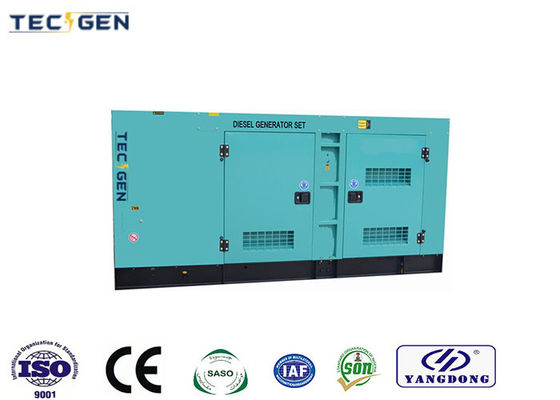

1500rpm Chinese diesel engine generator 75kVA diesel generator for outdoor use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG83YDS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Enclosed | Frequency | 50Hz / 1500rpm |
|---|---|---|---|
| Voltage | 415/240V | AMPS | 104.3A |
| Engine Model | Yangdong Y4110ZLD | Engine Power | 80kW |
| Rate Output Of Genset | 60kW / 75kVA | Max Output Of Genset | 66kW / 83kVA |
| Highlight | 1500rpm Chinese diesel engine generator,outdoor use Chinese diesel engine generator,75kVA Chinese diesel engine generator |
||
Product Description
1500rpm Chinese diesel engine generator 75kVA diesel generator for outdoor use
Standard Features:
- Frequency: 50Hz
- Voltage: 415/240V
- Phase: 3
- Rate Current: 104.3A
- Prime Power: 60kW / 75kVA
- Standby Power: 66kW / 83kVA
- Engine Model: Yangdong Y4110ZLD
- Alternator Model: TGI224S460
- Controller: Mebay DC52D
- ATS: 160A Built-in ATS or Wall mounted ATS
- Weight & Dimensions (Open): Length 1900mm, Width 900mm, Height 1200mm, Weight 980kg
Key Features:
- Robust Yangdong Y4110ZLD engine with 4 cylinders and turbocharged & intercooled aspiration.
- AC Alternator by Tecgen (Model TGI224S460) with a rated output of 60kW.
- Mebay DC52D controller system with advanced functions and ATS connection.
- Reliable and efficient performance at a frequency of 50Hz and voltage of 415/240V.
- Engine designed for prime power of 80kW, ensuring consistent and dependable operation.
- IP23 enclosure and H-class insulation for enhanced safety and durability.
- Single-bearing, brushless alternator with a 4-pole design for optimal power generation.
1500rpm Chinese Diesel Engine Generator Specifications:
| Technical Specification: | ||
| 1500rpm Chinese Diesel Engine Generator Specification | ||
| Genset Model | TG83YD | TG83YDS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 104.3A | |
| Prime Power | 60kW / 75kVA | |
| Standby Power | 66kW / 83kVA | |
| Engine Model | Yangdong Y4110ZLD | |
| Alternator Model | TGI224S460 | |
| ATS | 160A Built-in ATS or Wall mounted ATS | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1900 | 2600 |
| width (mm) | 900 | 1150 |
| Height (mm) | 1200 | 1460 |
| Weight (kgs) | 980 | 1330 |
| Yangdong Engine Specification | ||
| Brand | YANGDONG CO., LTD | |
| Engine Model | Y4110ZLD | |
| Prime power | 80kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 110 x 118 | |
| Displacement (L) | 4.484 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.3 | |
| Coolant Capacity ( In radiator) | 7.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 16.4 | |
| 75% Load (L/h) | 12.3 | |
| 50% Load (L/h) | 8.2 | |
| 25% Load (L/h) | 4.1 | |
| AC Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI224S460 | |
| Rate Output | 60kW | |
| Pole | 4 | |
| Speed | 1500rpm | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single, Brushless | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
This 1500rpm Chinese Diesel Engine Generator is designed to deliver a continuous and stable power supply for various applications, including industrial, commercial, and residential settings. It is ideal for powering heavy machinery, construction sites, data centers, hospitals, and emergency backup power systems. With its reliable performance, it ensures uninterrupted operations and provides peace of mind during power outages or in remote locations.
Advantages:
- Superior performance: The Yangdong Y4110ZLD engine, combined with the Tecgen AC alternator, ensures reliable and efficient power generation, meeting your energy requirements effortlessly.
- Durability: Engineered with high-quality materials and advanced technology, this generator offers long-lasting durability and performs well in demanding environments.
- Easy operation: The Mebay DC52D controller system provides intuitive control and monitoring, enabling easy operation and access to important information.
- Safety features: With IP23 enclosure and H-class insulation, this generator ensures safe and reliable operation, protecting both the equipment and the user.
- Versatility: Designed to adapt to various power needs, this generator is suitable for a wide range of applications, making it a versatile and cost-effective solution.
Options:
To enhance your generator's functionality and meet specific requirements, we offer optional equipment such as an ATS box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type, and 3000 hours spare parts. These options allow you to customize your generator setup according to your unique needs.
FAQ:
Q: What is the fuel consumption of this generator at different load levels?
A: The fuel consumption varies based on the load. At 100% load, it consumes 16.4L/h, 75% load consumes 12.3L/h, 50% load consumes 8.2L/h, and 25% load consumes 4.1L/h.
Q: Is the generator suitable for outdoor use?
A: Yes, the generator is designed for both indoor and outdoor use. However, it is recommended to protect it from direct exposure to harsh weather conditions.
Q: Does the generator come with an automatic transfer switch (ATS)?
A: Yes, this generator is available with a built-in ATS or a wall-mounted ATS, providing seamless transfer of power during utility outages.
Q: Can this generator be parallelly connected with other generators?
A: Yes, you can use a parallel panel to connect multiple generators, allowing you to increase power output and ensure redundancy.
In summary, our 1500rpm Chinese Diesel Engine Generator offers outstanding performance, reliability, and efficiency. With its advanced features, robust construction, and versatile applications, it is the ideal power solution for various industries. Invest in this generator to meet your power needs and experience uninterrupted operations. Order now and benefit from the superior performance and longevity of our China Diesel Generator.
