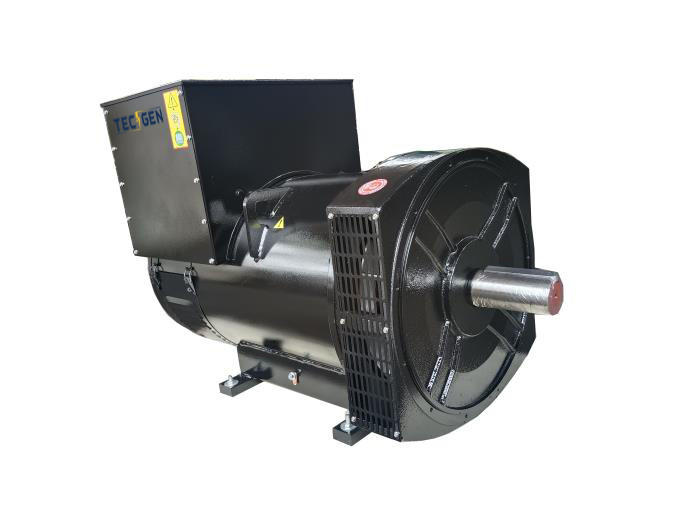

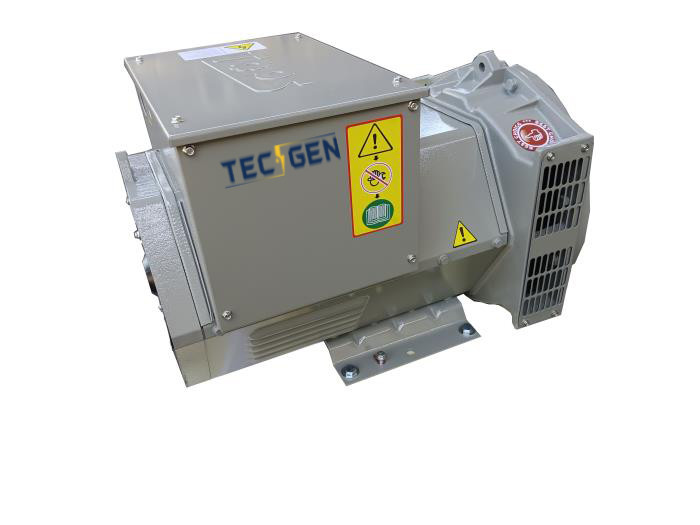

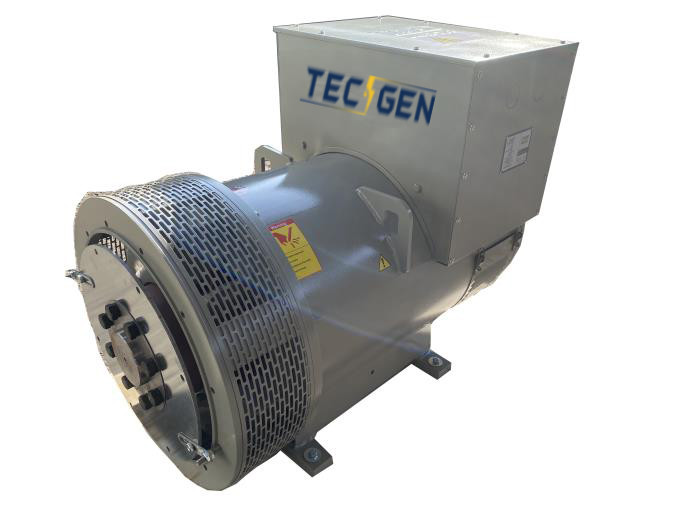

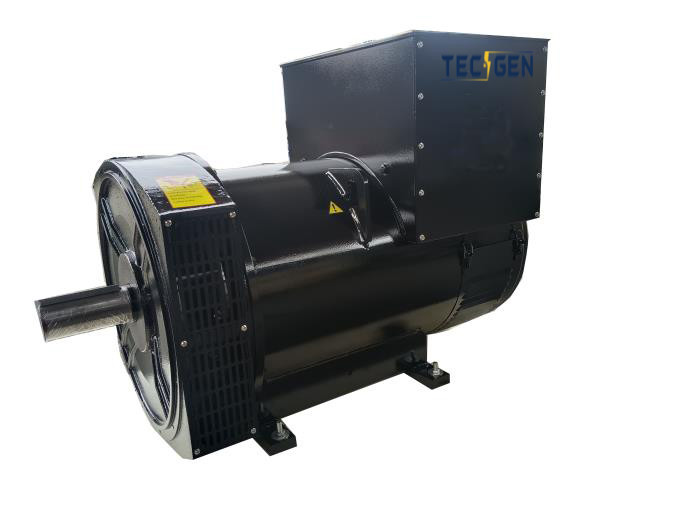

AC Sychronous Generators Brushless Alternator For Diesel Generating Set Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TGI |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 4000 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | A.C. SYCHRONOUS GENERATORS | Output Type | AC Three Phase |
|---|---|---|---|
| Frequency | 50Hz / 60Hz | Speed | 1500rpm / 1800rpm |
| Excitation Mode | AC Rotating Exciter | Stator Connection | Parallel/Series Star |
| Enclosure | IP23 | Brush Type | Brushless Type |
| Highlight | Diesel Generating Set brushless alternator,brushless alternator For Diesel Generating Set,Sychronous Generators 3 phase brushless alternator |
||
Product Description
AC sychronous generators brushless alternator for diesel generating set use
Distinctive Features:
1-Seamless integration with any permanent magnetic generators, ensuring consistent excitation under all circumstances.
2-Conformity to industry's most prevalent standards, including GB755, IEC60034, BS5000, VDE0530, and CSAC22.2-100.
3-Flexible options for single or double bearings, with adaptability for various adaptors and disc plates.
4-12-end reconnectable winding terminals for achieving diverse voltage configurations.
5-Standard H insulation class for superior electrical safety.
6-Convenient installation and maintenance of lead-end rotated diodes and adaptor-connected bolts.
7-Standard sealed bearings for maintenance-free operation.
8-Standard IP23 protection with optional enhanced protection for harsh environments.
Outstanding Technical Specifications:
1-Stable voltage adjustment rate of ±0.5%
2-Instant voltage adjustment range of ≥-15% to ≤+20%
3-Voltage adjustment span of ≥±25%
4-Insulation class: H
5-Continuous working mode: s1
6-Protection class: IP23
BRUSHLESS A.C. SYCHRONOUS GENERATORS Ranges:
| TGI SERIES BRUSHLESS A.C. SYCHRONOUS GENERATORS | ||||||
| Altermator Model | 50HZ 1500RPM PF:0.8 | 60HZ 1800RPM PF:0.8 | Dimension (LxWxH) mm | |||
| Rated Power | Rated Power | |||||
| 380V-415V | 440V | Single Bearing | Double Bearing | |||
| (KVA) | (KW) | (KVA) | (KW) | |||
| TGI164S1 | 8.1 | 6.5 | 10.2 | 8.2 | 470x450x520 | 540x45x520 |
| TGI164S2 | 11 | 8.8 | 13.8 | 11.0 | 470x450x520 | 540x45x520 |
| TGI164S3 | 13.5 | 10.8 | 16.9 | 13.5 | 500x450x520 | 570x450x520 |
| TGI164S4 | 16 | 12.8 | 20.0 | 16.0 | 500x450x520 | 570x450x520 |
| TGI184S1S | 18.8 | 15 | 550x450x520 | 630x450x520 | ||
| TGI184S1 | 22.5 | 18 | 28.8 | 23.0 | 550x450x520 | 630x450x520 |
| TGI184S2S | 25 | 20 | 630x450x520 | 700x450x520 | ||
| TGI184S2 | 27.5 | 22 | 34.4 | 27.5 | 630x450x520 | 700x450x520 |
| TGI184S3 | 31.3 | 25 | 37.5 | 30.0 | 630x450x520 | 700x450x520 |
| TGI184S4 | 37.5 | 30 | 46.9 | 37.5 | 700x450x520 | 760x450x520 |
| TGI184S5 | 40 | 32 | 50.0 | 40.0 | 700x450x520 | 760x450x520 |
| TGI224S1S | 37.5 | 30 | 46.9 | 37.5 | 770x500x760 | 790x500x760 |
| TGI224S1 | 42.5 | 34 | 52.5 | 42.0 | 770x500x760 | 790x500x760 |
| TGI224S2 | 50 | 40 | 62.5 | 50.0 | 770x500x760 | 790x500x760 |
| TGI224S3 | 60 | 48 | 70.0 | 56.0 | 860x510x760 | 880x510x760 |
| TGI224S4 | 72.5 | 58 | 87.5 | 70.0 | 860x510x760 | 880x510x760 |
| TGI224S5 | 85 | 68 | 97.5 | 78.0 | 910x510x760 | 930x510x760 |
| TGI274S1S | 90 | 72 | 860x600x860 | 900x600x860 | ||
| TGI274S1 | 100 | 80 | 117.5 | 94.0 | 860x600x860 | 900x600x860 |
| TGI274S2 | 120 | 96 | 137.5 | 110.0 | 860x600x860 | 900x600x860 |
| TGI274S3 | 140 | 112 | 167.5 | 134.0 | 970x600x860 | 1020x600x860 |
| TGI274S4 | 160 | 128 | 190.0 | 152.0 | 970x600x860 | 1020x600x860 |
| TGI274S5 | 182 | 145.6 | 218.5 | 174.8 | 1020x600x860 | 1070x600x860 |
| TGI274S6 | 200 | 160 | 245.0 | 196.0 | 1060x600x860 | 1120x600x860 |
| TGI274S7 | 230 | 184 | 281.0 | 224.8 | 1160x600x860 | 1200x600x860 |
| TGI274S8 | 250 | 200 | 299.0 | 239.2 | 1160x600x860 | 1200x600x860 |
| TGI314S1 | 237.5 | 190 | 1240x710x1030 | 1350x710x1030 | ||
| TGI314S2 | 250 | 200 | 300.0 | 240.0 | 1240x710x1030 | 1350x710x1030 |
| TGI314S3 | 300 | 240 | 360.0 | 288.0 | 1240x710x1030 | 1350x710x1030 |
| TGI314S4 | 325 | 260 | 394.0 | 315.2 | 1240x710x1030 | 1350x710x1030 |
| TGI314S5 | 350 | 280 | 420.0 | 336.0 | 1240x710x1030 | 1350x710x1030 |
| TGI314S6 | 380 | 304 | 456.0 | 365.0 | 1350x710x1030 | 1450x710x1030 |
| TGI314S7 | 400 | 320 | 364.0 | 384.0 | 1350x710x1030 | 1450x710x1030 |
| TGI354S1 | 450 | 360 | 550.0 | 440.0 | 1460x770x1140 | 1500x770x1140 |
| TGI354S2 | 500 | 400 | 594.0 | 475.2 | 1460x770x1140 | 1500x770x1140 |
| TGI354S3 | 562.5 | 450 | 1460x770x1140 | 1500x770x1140 | ||
| TGI354S4 | 600 | 480 | 713.0 | 570.4 | 1460x770x1140 | 1500x770x1140 |
| TGI354S5 | 665 | 532 | 775.0 | 620.0 | 1460x770x1140 | 1500x770x1140 |
| TGI354S6 | 700 | 560 | 1460x770x1140 | 1500x770x1140 | ||
| TGI404S1 | 750 | 600 | 1810x880x1320 | 1680x880x1320 | ||
| TGI404S2 | 800 | 640 | 1810x880x1320 | 1680x880x1320 | ||
| TGI404S3 | 910 | 728 | 1810x880x1320 | 1680x880x1320 | ||
| TGI404S4 | 1000 | 800 | 1810x880x1320 | 1680x880x1320 | ||
| TGI404S5 | 1125 | 900 | ||||
| TGI404S6 | 1250 | 1000 | ||||
| TGI404S7 | 1375 | 1100 | ||||
| TGI404S8 | 1500 | 1200 | ||||
| TGI454S1 | 1400 | 1120 | ||||
| TGI454S2 | 1562.5 | 1250 | ||||
| TGI454S3 | 1687.5 | 1350 | ||||
| TGI454S4 | 1900 | 1520 | ||||
| TGI454S5 | 2062.5 | 1650 | ||||
| TGI454S6 | 2250 | 1800 | ||||
| TGI454S7 | 2500 | 2000 | ||||
Our Unique Advantages
- Overload protection for enhanced safety and reliability during operation
- Premium quality with simplified maintenance procedures
- Utilization of superior-grade materials
- 4 Poles, Brushless, Self-excited, H-class insulation, IP23 rating, A.V.R. with 100% Copper windings
- Low-frequency safeguard and external voltage adjustment capabilities.
Remark:
All land rate data is based on a temperature of 40°C (Altitude not exceeding 1000 meters).
The voltages listed have been derived from a comprehensive range of individual winding configurations, specifically through the recombination of 12 outlet terminals (for 3-phase) and 4 outlet terminals (for single-phase).
We also offer additional optional voltage ranges tailored to our customers' specific demands.
