60Hz 28kVA diesel generator silent power genset for back-up electrical power use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG28SDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz | Speed | 1800rpm |
|---|---|---|---|
| Voltage | 120/127/208/220/230/240/480V | Phase No. | Single Phase / Three Phase |
| Engine Brand | SDEC | Engine Model | 4Z2.7-G12 |
| Displacement | 2.7L | Max Power | 22kW /28kVA |
| Highlight | 28kVA diesel generator,Silent Power Genset,60Hz diesel generator |
||
Product Description

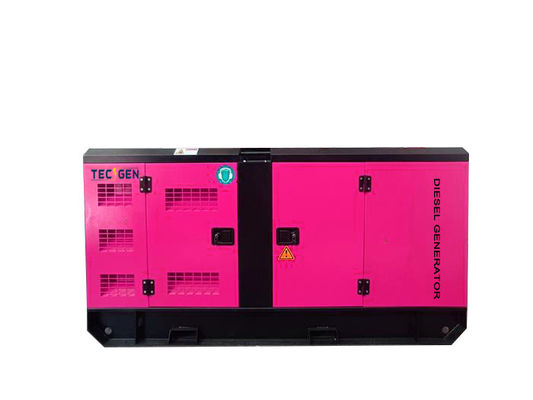

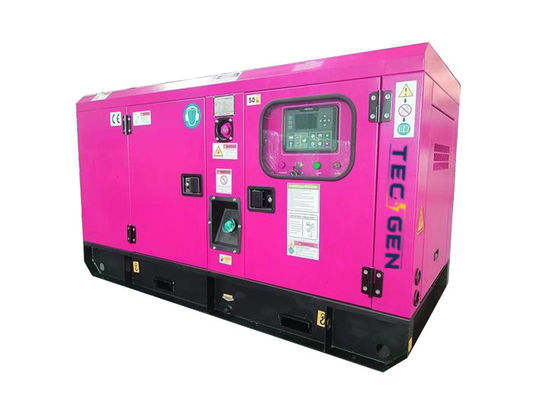

60Hz 28kVA diesel generator silent power genset for back-up electrical power use
Product Title:
Silent Powerhouse: 60Hz 28kVA Diesel Generator (TG28SDSD6)
Standard Features:
Introducing the ultimate in silent backup power – the TG28SDSD6, a 60Hz 28kVA diesel generator designed for seamless integration into any environment. With a robust 4Z2.7-G12 SDEC engine, this generator boasts a prime power output of 20kW and a standby capacity of 28kVA, ensuring uninterrupted power supply during emergencies or as a primary source.
Key Features:
- Ultra-Silent Operation: The enclosed design effectively muffles engine noise, making it the ideal Silent Generator for residential, commercial, or industrial use.
- High Efficiency: Engineered for maximum fuel efficiency, the TG28SDSD6 consumes just 6.5L/h at full load, minimizing operational costs.
- Durability & Reliability: Boasting a 4-cylinder turbocharged engine with water cooling, this generator ensures long-lasting performance and minimal downtime.
- Intelligent Control: Equipped with the DEIF SGC-420 controller, featuring AMF module and automatic battery charging, for hassle-free operation and maintenance.
- Versatile Power Supply: Suitable for powering a wide range of electrical appliances, from household essentials to heavy-duty machinery.
60Hz 28kVA Diesel Generator Datasheets:
| Technical Specification: | ||
| 60Hz 28kVA Diesel Generator Specification | ||
| Genset Model | TG28SDD6 | TG28SDSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 220/127V | |
| Phase | 3 Phase, Four Wires | |
| Rate Current (A) | 65.6 | |
| Prime Power | 20Kw /25kVA | |
| Standy Power | 22kW /28kVA | |
| Engine Model | 4Z2.7-G12 | |
| Alternator Model | TGI184S16 | |
| Controller | DEIF SGC-420 | |
| Fuel Tank Capacity | 70L | |
| Weight And Dimensions | ||
| Length (mm) | 1600 | 2100 |
| Width (mm) | 800 | 1000 |
| Height (mm) | 1000 | 1150 |
| Weight (kgs) | 830 | 1150 |
| Engine Specification | ||
| Engine Brand | SDEC | |
| Engine Model | 4Z2.7-G12 | |
| Standby power | 29kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 90 x 105 | |
| Displacement (L) | 2.7 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 6.3 | |
| Coolant Capacity ( In radiator) | 6.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 6.5 | |
| 75% Load (L/h) | 4.9 | |
| 50% Load (L/h) | 3.3 | |
| 25% Load (L/h) | 1.6 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S20 | |
| Rate Output | 25kVA | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for hospitals, data centers, construction sites, events, or as a home backup system, the TG28SDSD6 silently provides reliable power in times of need.
Advantages:
- Noise Reduction Technology: Enjoy a peaceful environment even during power outages.
- Fuel Efficiency: Save on fuel costs with optimized engine performance.
- Easy Maintenance: Designed for quick access to components, simplifying routine checks and repairs.
- Compact Design: Space-saving design makes it easy to transport and install.
- Eco-Friendly: Meets stringent emission standards, minimizing environmental impact.
Optional Equipment:
Upgrade your generator with options like an ATS Box for automatic power transfer, remote control for convenient operation, or a daily fuel tank for extended runtime.
FAQs:
Q: How loud is the generator when running?
A: The TG28SDSD6 is designed for ultra-silent operation, making it suitable for noise-sensitive areas.
Q: What is the fuel consumption at half load?
A: At 50% load, the generator consumes approximately 3.3L/h of diesel.
Q: Is the generator suitable for parallel operation?
A: Yes, with optional parallel panels, you can connect multiple generators for increased power output.
Experience the ultimate in silent and reliable power generation with the TG28SDSD6 60Hz 28kVA Diesel Generator. Order now and ensure peace of mind during any power outage!
