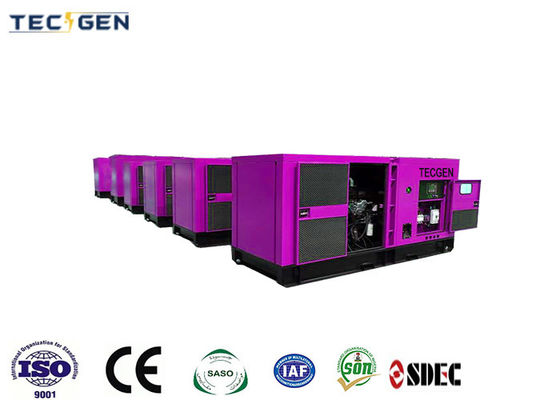

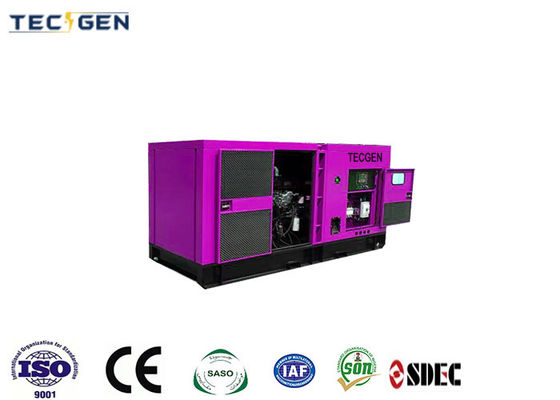

Prime 69kVA SDEC Generators Silent China Genset With 160A ATS For Bank Backup Power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG76SDS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 25 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof / Silent | Frequency | 50Hz |
|---|---|---|---|
| Speed | 1500rpm | Output Type | AC 3 Phase, Four Wire |
| Engine Brand | 4ZTAA4.1-G21 | Prime Power | 69kVA / 55kW |
| ATS | 160A Aisikai ATS (Built-in) | Alternator | Copy Stamford |
| Highlight | Prime sdec generator,69kVA sdec generator,Silent sdec genset |
||
Product Description
Prime 69kVA SDEC generators silent China genset with 160A ATS for bank backup power
Product Description: Prime 69kVA SDEC Generators - Silent China Genset
Introducing the Ultimate Power Solution: Prime 69kVA SDEC Generators
Experience uninterrupted power with the industry-leading Prime 69kVA SDEC Generators, designed for silent operation and reliable performance. As a Silent China Genset, this generator not only ensures a noise-free environment but also delivers exceptional power output, making it the perfect choice for various applications ranging from residential backup to commercial and industrial use.
Standard Features:
- Silent Operation: The Prime 69kVA SDEC Generators are housed in a soundproof canopy made of galvanized steel plate, effectively reducing noise levels to a whisper, making it ideal for noise-sensitive areas.
- Powerful Engine: Equipped with an SDEC 4ZTAA4.1-G21 diesel engine, delivering 64kW of rated power, this generator provides a prime power of 69kVA (55kW) and a standby power of 76kVA (61kW), ensuring ample power for your needs.
- Efficient Alternator: The Tecgen TGI224S55 alternator operates at 1500rpm, generating a stable 240/415V three-phase power with a power factor of 0.8, ensuring clean and reliable electricity.
- Intelligent Control: The DEIF SGC-420 controller system features AMF module control, automatic battery charging, and a wide range of alarms for monitoring and protection, including over/under speed, low/high battery voltage, and overload protection.
Key Features:
- Built-in ATS: Equipped with a 160A built-in automatic transfer switch (ATS), the generator seamlessly switches between power sources, ensuring a seamless transition during power outages.
- Long-lasting Fuel Capacity: With a fuel capacity of 120L, this generator can run for up to 24 hours (depending on load), making it ideal for extended outages or remote locations.
- Durability & Portability: Constructed with high-quality materials and weighing just 1350kgs, the Prime 69kVA SDEC Generators are both durable and easily transportable, thanks to its optional trailer type design.
Prime 69kVA SDEC Generators Specifications:
| Prime 69kVA SDEC Generators Details | |||
| Genset | Type | Silent | |
| Model | TG76SDS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 240/415V | ||
| Phase | Three Phase | ||
| Prime Power | 69kVA / 55kW | ||
| Standby Power | 76kVA / 61kW | ||
| Rate Current | 96.0A | ||
| ATS | 160A Built-in ATS | ||
| Dimensions | L2250 x W1000 x H1180mm | ||
| Weight | 1350kgs | ||
| Fuel Capacity | 120L | ||
| General Features | |||
| Engine | SDEC | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| SDEC Diesel Engine Technical Data | |||
| Brand | SDEC | ||
| Engine Model | 4ZTAA4.1-G21 | ||
| Rated Power | 64kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 105*118mm | ||
| Displacement | 4.1L | ||
| Aspiration | Tubo-charged & Intercooled | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 13L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI224S55 | ||
| Rated Power | 69kVA | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The Prime 69kVA SDEC Generators are versatile and can be used in a wide range of applications, including hospitals, data centers, construction sites, events, and even as a primary power source for off-grid living. Its silent operation makes it an excellent choice for noise-sensitive environments such as hotels, schools, and residential areas.
Advantages:
- Cost-Effective: With low fuel consumption (13L/100% load) and high-efficiency components, this generator offers significant cost savings in the long run.
- Reliable Performance: Backed by a robust SDEC diesel engine and a premium Tecgen alternator, the Prime 69kVA Generators are designed for durability and dependability.
- Easy Maintenance: Regular maintenance is simplified with easy access to engine components and a range of filters (air, fuel, oil) for optimal performance.
Optional Equipment:
- Daily Fuel Tank: For continuous operation without refueling.
- Parallel Panel: Enables connection of multiple generators for increased power output.
- Remote Control Panel: Provides remote monitoring and control capabilities.
- Engine Heater: Ensures easy start-ups in cold weather conditions.
FAQs:
Q: What is the noise level of the Prime 69kVA SDEC Generators?
A: The generator is housed in a soundproof canopy, reducing noise levels significantly, making it ideal for noise-sensitive areas.
Q: How long can the generator run on a full tank?
A: Depending on the load, the 120L fuel tank can provide up to 24 hours of runtime.
Q: Is the ATS included with the generator?
A: Yes, the Prime 69kVA SDEC Generators come with a 160A built-in ATS for seamless power transfer.
Experience the power and reliability of the Prime 69kVA SDEC Generators – the silent China genset that delivers where it matters. Contact us today to learn more about this cutting-edge power solution.
