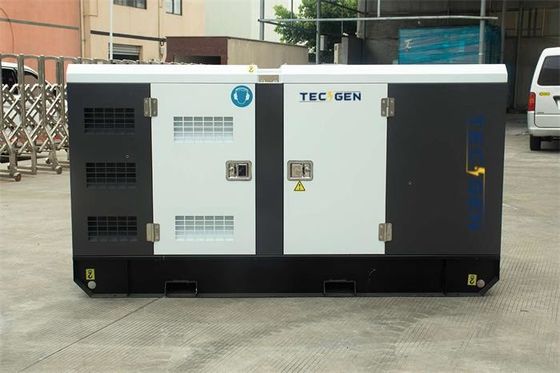

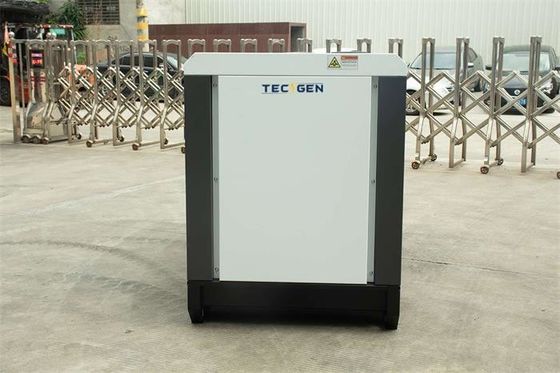

Three Phase 8kW Generator Soundproof SDEC Generator With 3 Cylinder Engine For Home Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG11SDS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Product Name | SDEC Genset |
|---|---|---|---|
| Phase No. | 3P | ATS | 63A Built-in ATS |
| Engine Model | 3Z1.1-G42 | Cylinder | 3 Cylinder |
| Bore*Stroke | 78*78.4mm | Genset Power | 8kW |
| Highlight | 3 cylinder engine SDEC generator,Three phase SDEC generator,8kW SDEC generator |
||
Product Description
Three phase 8kW generator soundproof SDEC generator with 3 cylinder engine for home use
Standard Features:
Introducing the TG11SDS, a premium Three Phase 8kW Soundproof SDEC Generator designed for reliable power backup in both residential and commercial settings. Equipped with a powerful SDEC diesel engine and a Tecgen alternator, this generator ensures a seamless power supply during power outages or as a primary source of energy. The TG11SDS boasts a silent operation, making it ideal for noise-sensitive environments, while its compact design and built-in ATS (Automatic Transfer Switch) ensure ease of installation and operation.
Key Features:
- Powerful SDEC Engine: The heart of this generator is a robust 3-cylinder SDEC diesel engine, rated at 11kW, delivering a prime power of 8kW and a standby power of 9kW. With a turbo-charged aspiration and water-cooled system, it ensures efficient and durable performance.
- Silent Operation: Encased in a galvanized steel soundproof canopy, the TG11SDS operates at minimal noise levels, making it perfect for hospitals, schools, offices, and homes where quietness is crucial.
- Versatile Power Output: Offering a three-phase, four-wire AC output with a voltage range of 230/400V, this generator caters to a wide array of electrical appliances and equipment.
- Advanced Controller System: Equipped with a ComAp AMF 8 controller, it features comprehensive monitoring and protection functions, including over/under speed, low/high battery voltage, and overload alarms, ensuring safe and efficient operation.
- Built-in ATS: The 63A built-in ATS automatically switches between the generator and utility power, ensuring a seamless transition during power outages.
- Fuel Efficiency: With a fuel consumption of just 2.6L at 100% load, the TG11SDS offers exceptional fuel economy, reducing operational costs.
Three Phase 8kW Generator Specifications:
| Three Phase 8kW Generator Details | |||
| SDEC Genset | Type | Silent | |
| Model | TG11SDS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 230/400V | ||
| Phase | AC Three Phase | ||
| Prime Power | 8kW / 10kVA | ||
| Standby Power | 9kW / 11kVA | ||
| Rate Current | 14.4A | ||
| ATS | 63A Built-in ATS | ||
| Dimensions | L1400 x W750 x H1000mm | ||
| Weight | 600kgs | ||
| Fuel Capacity | 80L | ||
| Option Types | Single Phase, Open Type | ||
| General Features | |||
| Engine | SDEC | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | ComAp AMF 8 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| SDEC Diesel Engine Technical Data | |||
| Brand | SDEC | ||
| Engine Model | 3Z1.1-G42 | ||
| Rated Power | 11kW | ||
| Cylinder | 3 Cylinder | ||
| Bore*Stroke | 78*78.4mm | ||
| Displacement | 1.1L | ||
| Aspiration | Turbo-charged | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 2.6L | ||
| Speed Governor | Electric | ||
| Start System | 12V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI164S8 | ||
| Rated Power | 8kW | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | ComAp | ||
| Model | AMF 8 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The Three Phase 8kW Soundproof SDEC Generator - TG11SDS is ideal for powering essential appliances and equipment during power outages, including HVAC systems, refrigerators, computers, lighting, and more. It's also suitable for use as a primary power source in remote locations or construction sites where grid power is unavailable.
Advantages:
- Durability: The use of high-quality components and rigorous testing ensures long-lasting performance and reliability.
- Portability: Despite its robust build, the generator is designed for easy transportation and maneuverability, thanks to its compact dimensions and manageable weight.
- Eco-Friendly: Low noise emissions and fuel efficiency contribute to a greener environment.
- Versatility: With optional features like parallel operation, remote control, and trailer mounting, the TG11SDS can be customized to suit various needs.
Options:
- Single Phase Output: Convertible to single-phase operation for specific applications.
- Open Type Canopy: For environments where soundproofing is not a priority.
- Additional Fuel Tanks: Extend runtime with daily, 12-hour, or 24-hour fuel tanks.
- Remote Control Panel: For convenient monitoring and control from a distance.
- Trailer Type: Mount the generator on a trailer for easy transportation to job sites.
FAQs:
Q: How loud is the TG11SDS during operation?
A: The TG11SDS is designed for silent operation, making it significantly quieter than conventional generators. The exact noise level may vary depending on the load and environment.
Q: What is the fuel capacity of the generator?
A: The standard fuel capacity is 80L, but additional fuel tanks can be installed to extend runtime.
Q: Can the generator be used in parallel with another unit?
A: Yes, with optional parallel panels, the TG11SDS can be connected to another compatible generator for increased power output.
Experience the reliability and efficiency of the Three Phase 8kW Soundproof SDEC Generator - TG11SDS. With its powerful engine, silent operation, and advanced features, it's the perfect solution for all your power backup needs.
