Yangdong 56kVA Generating Set Silent Diesel Generator With 4 Cylinder Engine For Home Use

Yangdong 56kVA generating set silent diesel generator with 4 cylinder engine for home use

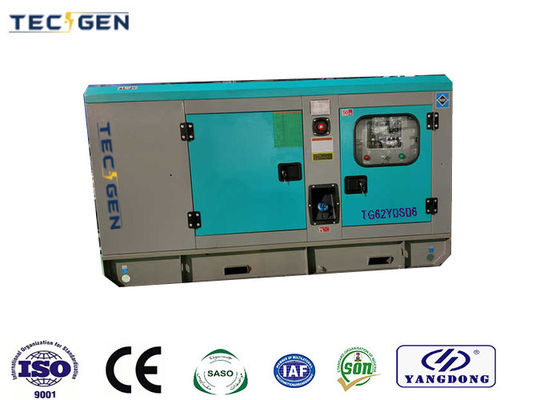

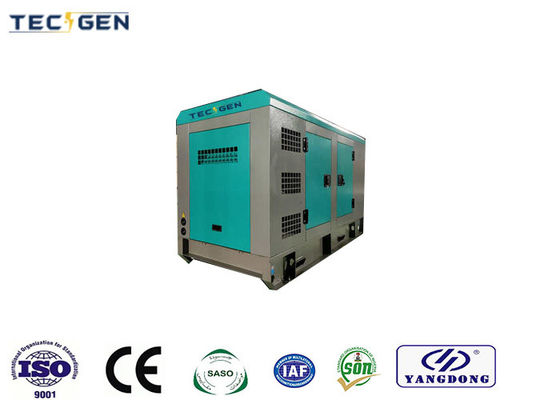

Product Description: Yangdong 56kVA Generating Set - Your Reliable Silent Diesel Generator

Standard Features:

The Yangdong 56kVA Generating Set is a high-performance power solution. It comes with a frequency of 60Hz and a rate speed of 1800RPM. The voltage output is a stable 240V in a three-phase, four or twelve wires configuration. The generator is equipped with an advanced controller, the DEIF SGC-420, which offers functions like control with AMF module, static with auto battery charger, and an emergency stop push button. The CANBUS & MPU VERSION ensures seamless operation and monitoring.

Key Features:

Powerful Engine: The generator is powered by the Yangdong Y4105ZLD engine. With a prime power of 60kW, it features indirect injection, turbocharged and intercooled aspiration for enhanced performance. The four-cylinder design with a bore of stroke of 105 x 118mm and a displacement of 4.1L provides reliable power. It is water cooled with a compression ratio of 18:1.
Efficient Alternator: The TECGEN TGI224S45 alternator delivers a rate output of 45kW. With a speed of 1800RPM, four poles, and star winding connections, it offers stable power generation. The insulation class of H and IP23 enclosure ensure durability and safety.
Low Noise: Available in both open and silent versions. The silent model has a noise level of just 65 dB(A) @ 7m, making it ideal for use in noise-sensitive areas.

Yangdong 56kVA Generating Set Datasheets:

Usage:

This Yangdong 56kVA Generating Set is perfect for a wide range of applications. It can be used in industrial settings, construction sites, hospitals, data centers, and more. Whether you need backup power during power outages or a reliable power source in remote locations, this generator is up to the task.

Advantages:

Reliability: With high-quality components and a robust design, this generator offers reliable power when you need it most.
Fuel Efficiency: The engine's advanced technology ensures efficient fuel consumption, reducing operating costs. At different loads, the fuel consumption ranges from 3.2L/h at 25% load to 12.9L/h at 100% load.
Customizable Options: A wide range of optional equipments are available, including ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, and Trailer Type. This allows you to customize the generator to meet your specific needs.

Options:

Choose between the open and silent models depending on your noise requirements. Add optional equipments to enhance the functionality and convenience of the generator.

FAQ:

Q: What is the difference between the open and silent models?
A: The silent model has a lower noise level of 65 dB(A) @ 7m, making it suitable for noise-sensitive environments. The open model is more suitable for applications where noise is not a major concern.
Q: Can I parallel multiple generators?
A: Yes, with the optional parallel panel, you can parallel multiple Yangdong 56kVA Generating Sets for increased power output.
Q: What is the warranty on this generator?
A: The generator comes with a standard warranty. For more details, please contact our sales team.

In conclusion, the Yangdong 56kVA Generating Set is a powerful and reliable silent diesel generator that offers a wide range of features and options. Whether you need backup power or a primary power source, this generator is an excellent choice. With its high-quality construction, efficient performance, and customizable options, it is sure to meet your power needs.
