Diesel 30kVA Generating Set SDEC Generators With Low Noise Canopy For Data Centers

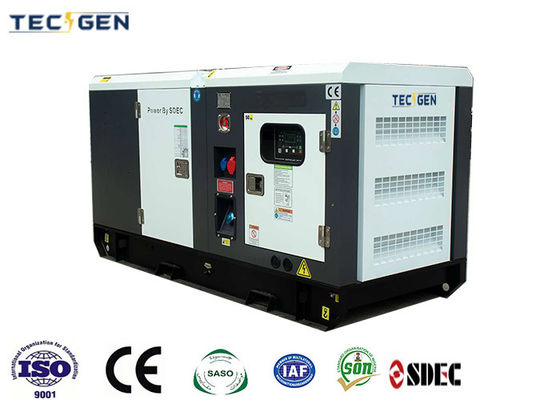

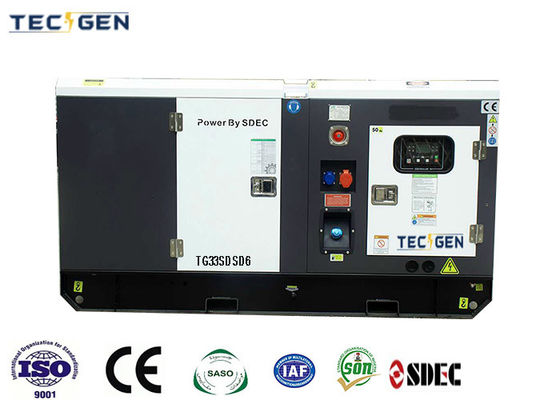

Diesel 30kVA generating set SDEC generators with low noise canopy for data centers

Standard Features of the Diesel 30kVA Generating Set:

Experience unparalleled reliability and performance with our TG33SDSD6 Diesel 30kVA Generating Set. Equipped with a robust SDEC 4Z3.0-G12 diesel engine, this generator offers a rated power of 24kW and a standby power of 26kW, ensuring continuous and efficient power supply for your critical applications. The electric governor maintains a stable frequency of 60Hz, while the rated voltage of 220V and rated current of 78.7A cater to a wide range of power needs.

The generator set's compact dimensions (L1650 x W700 x H900 mm) and gross weight of 800 kg make it easy to install and transport. The engine features a four-stroke, water-cooling, direct injection configuration with a displacement of 2.977 liters and a rated speed of 1800 rpm. Natural aspiration intake and a fuel consumption rate of 192g/Kw*h at 100% load further enhance its efficiency.

Key Features:

• Powerful Engine: The SDEC 4Z3.0-G12 diesel engine delivers a robust performance with a rated power of 27kW.
• Efficient Alternator: The Tecgen TGI184S24 alternator boasts a rated power of 30kVA and an efficiency of 92.50%, ensuring minimal energy loss.
• Advanced Control System: The MEBAY DC52D control system offers a range of features, including AMF/ATS, RS485 & CAN communication, PLC & BTN, and comprehensive protections for the generator set.
• Compact Design: The generator's compact and lightweight design facilitates easy installation and transportation.

Diesel 30kVA Generating Set Specifications:

Usage:

The Diesel 30kVA Generating Set is ideal for a variety of applications, including industrial, commercial, and residential use. It can be used as a primary or backup power source for hospitals, data centers, construction sites, and other critical facilities. Its ability to handle high loads and maintain a stable power supply makes it an excellent choice for sensitive equipment and operations.

Advantages:

• Reliability: The generator set is designed to provide continuous and reliable power, even during power outages.
• Efficiency: The combination of a powerful engine and efficient alternator ensures minimal energy loss and lower operating costs.
• Versatility: Suitable for a wide range of applications and environments, making it a versatile power solution.
• User-Friendly: The advanced control system and intuitive interface make it easy to monitor and manage the generator set.

Options:

Customize your Diesel 30kVA Generating Set with a range of optional equipment to suit your specific needs. Options include an integrated fuel tank, ATS box/cabinet, PMG alternator, sync panel, trailer type, engine heater, water heater, and fuel-water separator. Choose from alternative control system brands such as Deepsea, Smartgen, ComAp, and Mebay to tailor the generator set to your preferences.

FAQ:

1. What is the rated power of the Diesel 30kVA Generating Set?
   • The rated power of the generating set is 24kW, with a standby power of 26kW.
2. What type of engine does the generator set use?
   • The generator set is powered by an SDEC 4Z3.0-G12 diesel engine.
3. How efficient is the alternator?
   • The Tecgen TGI184S24 alternator boasts an efficiency of 92.50%, ensuring minimal energy loss.
4. What are the dimensions and weight of the generator set?
   • The generator set has dimensions of L1650 x W700 x H900 mm and a gross weight of 800 kg.
5. Can the generator set be customized with optional equipment?
   • Yes, a range of optional equipment is available to customize the generator set to your specific needs.

Experience the reliability, efficiency, and versatility of the Diesel 30kVA Generating Set. With its powerful SDEC engine, efficient Tecgen alternator, and advanced MEBAY control system, this generator set is the perfect solution for your power needs. Contact us today to learn more about our range of generating sets and how they can benefit your business.
