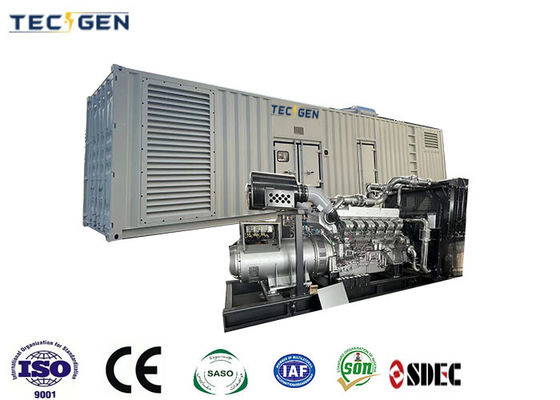

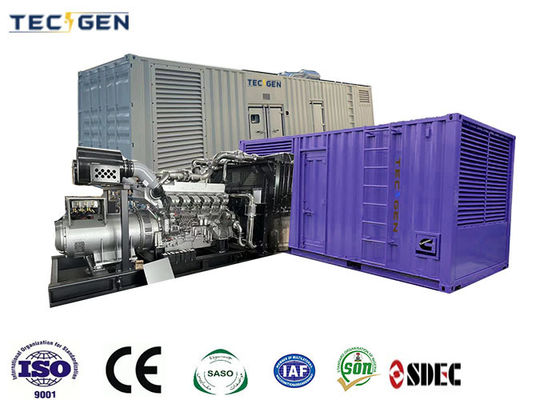

Container soundproof 1800kW generator heavy duty genset for big business center use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 40ft Container Silent | Product Name | SDEC Genset |
|---|---|---|---|
| Frequency | 50Hz | Engine Brand | SDEC |
| Engine Model | 12M26D968E200 | Cylinder Of Engine | 12 Cylinder |
| Prime Output | 2250kVA / 1800kW | Dimension | 12000x2400x2500mm |
| Highlight | 1800kW genset,big business center genset,heavy duty genset |
||
Product Description
Container soundproof 1800kW generator heavy duty genset for big business center use
Standard Features:
Introducing our Container Soundproof 1800kW Generator, a heavy-duty genset designed for reliable and efficient power generation. Housed in a 40ft standard container, this silent generator combines power with portability and soundproofing capabilities. The generator boasts a prime power output of 2250kVA / 1800kW and a standby power of 2475kVA / 1980kW, making it suitable for a wide range of applications.
The SDEC TG2475SDS model runs at 1500rpm, delivering a stable and smooth power supply. It operates on a frequency of 50Hz and offers a three-phase, four-wire voltage of 230/400V. The dimensions of the generator are L12000 x W2400 x H2600mm, with a weight of 18000kgs. The fuel capacity ensures an 8-hour running capacity, providing uninterrupted power when needed.
Key Features:
- Soundproof Container Design: The generator is enclosed in a galvanized steel plate canopy, ensuring minimal noise pollution.
- Powerful Engine: The SDEC 12M26D968E200 engine is a 12-cylinder model with a displacement of 57.2L, delivering a rated power of 1986kW.
- Efficient Alternator: The Tecgen TGI454S1800 alternator provides a rated power of 1800kW, with a power factor of 0.8 and an insulation grade of H.
- Advanced Controller System: The DEIF SGC-420 controller includes AMF module control, static auto battery charging, and various alarm functions for enhanced safety and performance.
- Comprehensive Fuel System: The generator features a dry type air filter, fuel filter, and oil filter, ensuring clean and efficient fuel utilization.
- Easy Start System: Equipped with a 12/24V electric start, the generator can be easily initiated, even in challenging conditions.
Container Soundproof 1800kW Generator Specifications:
| Container Soundproof 1800kW Generator Details | |||
| SDEC Genset | Type | 40ft Standard Container Silent | |
| Model | TG2475SDS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 230/400V | ||
| Phase | Three Phase | ||
| Prime Power | 2250kVA / 1800kW | ||
| Standby Power | 2475kVA / 1980Kw | ||
| Dimensions | L12000 x W2400 x H2600mm | ||
| Weight | 18000kgs | ||
| Fuel Capacity | 4 Hours Running Capacity | ||
| General Features | |||
| Engine | SDEC | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| SDEC Engine Technical Data | |||
| Brand | SDEC | ||
| Engine Model | 12M26D968E200 | ||
| Rated Power | 1986kW | ||
| Cylinder | 12 Cylinder | ||
| Bore*Stroke | 170*210mm | ||
| Displacement | 57.2L | ||
| Aspiration | Turbocharging and intercooling | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 437.8L | ||
| Speed Governor | Electric | ||
| Start System | 24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI454S1800 | ||
| Rated Power | 1800kW | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing,brushless,Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The Container Soundproof 1800kW Generator is ideal for various industries and applications, including construction sites, mining operations, hospitals, data centers, and more. Its heavy-duty design and silent operation make it an excellent choice for providing backup power or primary power in remote or noise-sensitive areas.
Advantage:
- Soundproof Design: The generator's soundproof canopy reduces noise levels, making it suitable for use in urban or residential areas.
- High Power Output: With a prime power of 1800kW and a standby power of 1980kW, the generator can handle large power loads with ease.
- Reliability: The SDEC engine and Tecgen alternator are known for their durability and reliability, ensuring long-lasting performance.
- User-Friendly Controls: The DEIF controller system simplifies operation and maintenance, with clear alarms and diagnostics.
- Fuel Efficiency: The generator's fuel consumption is optimized, providing cost savings and longer runtime.
Option:
Customers can choose from various optional equipment to customize their generator, including a daily fuel tank, parallel panel, remote control panel, engine heater, water heater, permanent magnet generator (PMG), auto-transfer switch, trailer type, and spare parts.
FAQ:
- What is the fuel capacity of the generator?
The generator has a fuel capacity that ensures an 8-hour running capacity. - What is the noise level of the generator?
The generator is enclosed in a soundproof canopy, significantly reducing noise levels. - Can the generator be customized?
Yes, customers can choose from various optional equipment to customize their generator to their specific needs. - What is the warranty period for the generator?
Please contact us for details on the warranty period and service support. - Is the generator suitable for use in cold climates?
An engine heater can be added as an optional equipment to ensure reliable operation in cold climates.
In conclusion, the Container Soundproof 1800kW Generator is a heavy-duty genset that combines power, reliability, and efficiency. Its soundproof design, advanced controller system, and customizable options make it an excellent choice for a wide range of applications. Contact us today for more information and to place your order.
