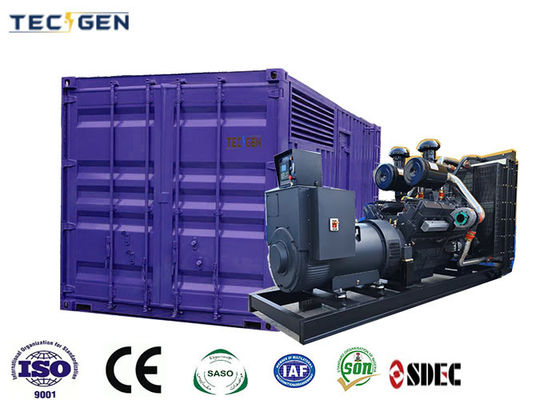

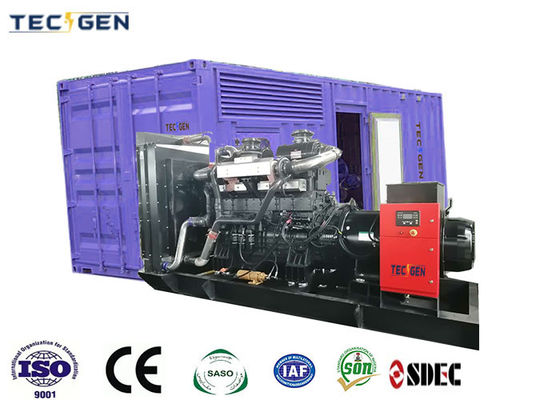

1125kVA China engine genset SDEC diesel genset with 20ft container silent canopy for heavy duty use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 20ft Container Silent | Product Name | SDEC Genset |
|---|---|---|---|
| Frequency | 50Hz | Engine Brand | SDEC |
| Engine Model | 6WTAA35-G310 | Engine Power | 1018kW Max |
| Prime Output | 900kW / 1125kVA | Dimension | 6000x2400x2400mm |
| Highlight | heavy duty SDEC diesel genset,1125kVA SDEC diesel genset,20ft container SDEC diesel genset |
||
Product Description
1125kVA China engine genset SDEC diesel genset with 20ft container silent canopy for heavy duty use
Standard Features:
Introducing the TG1238SDS, a robust 1125kVA China Engine Genset powered by an SDEC diesel engine. This genset boasts a rated power of 900kW and a standby power of 990kW, ensuring reliable power supply for various applications. Equipped with an electric governor and operating at a frequency of 50Hz, the genset offers a rated voltage of 240/415V with a rated current of 1565.2A. Designed for durability and efficiency, the TG1238SDS features a compact dimension of L6000 x W2400 x H2400 mm and a gross weight of 13,000 kg, making it an ideal choice for both stationary and mobile power solutions.
Key Features:
- Powerful Engine: The SDEC 6WTAA35-G310 four-stroke, water-cooled, direct injection diesel engine provides a maximum engine power of 1018kW at a rated speed of 1500rpm. With 6 cylinders and a displacement of 35.1 liters, this engine is designed for high performance and longevity.
- Efficient Alternator: The Tecgen TGI404S900 alternator, made with 100% pure copper, offers a rated power of 900kW and an efficiency of 92.50%. It features brushless, self-excitation voltage regulation within ±1%, ensuring stable and consistent power output.
- Advanced Control System: The DEIF SGC-420 control system offers a wide range of functions, including AMF/ATS, RS485 & CAN communication, PLC & BTN, and comprehensive protections such as under-speed, over-speed, battery monitoring, and ECU communication failure.
1125kVA China Engine Genset Specifications:
| 1125kVA China Engine Genset Datasheets | |||||||||||||
| Genset Model | TG1238SDS | ||||||||||||
| Rated Power | 900kW / 1125kVA | ||||||||||||
| Standby Power | 990kW / 1238kVA | ||||||||||||
| Governor | Electric | ||||||||||||
| Frequency | 50Hz | ||||||||||||
| Rated Voltage | 240 / 415V | ||||||||||||
| Rated Current (A) | 1565.2A | ||||||||||||
| Dimension (mm) | L6000 x W2400 x H2400 | ||||||||||||
| Gross Weight (kg) | 13000 | ||||||||||||
| Diesel Engine | Brand | SDEC | |||||||||||
| Model | 6WTAA35-G310 | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Max Engine Power | 1018kW | ||||||||||||
| Rated Speed (rpm) | 1500rpm | ||||||||||||
| Cylinder No. | 6 | ||||||||||||
| Bore*Stroke (mm) | 186 x 215 | ||||||||||||
| Displacement(L) | 35.1 | ||||||||||||
| Intake | Turbocharged and Intercooled | ||||||||||||
| Fuel Consumption (g/Kw*h) | 225@100% load | ||||||||||||
| Starting method | 24V DC / 200Ah | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI404S900 | ||||||||||||
| Rated Power | 900kW | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | DEIF | |||||||||||
| Model | SGC-420 | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
The 1125kVA China Engine Genset is suitable for a wide range of applications, including industrial, commercial, and residential power backup. It can be used as a primary or secondary power source for hospitals, data centers, construction sites, and more. With its high power output and reliable performance, this genset ensures uninterrupted power supply during emergencies or power outages.
Advantage:
- Reliability: The SDEC diesel engine is known for its durability and reliability, providing years of trouble-free operation.
- Efficiency: The Tecgen alternator and DEIF control system work together to maximize energy efficiency, reducing fuel consumption and operational costs.
- Versatility: The compact design and heavy-duty construction make this genset suitable for both indoor and outdoor use, in various climates and conditions.
- Safety: Comprehensive protections and diagnostics ensure the safe and reliable operation of the genset, protecting against potential hazards and extending the lifespan of the equipment.
Option:
- Integrated Fuel Tank: Additional fuel storage for extended operation without refueling.
- ATS Box/Cabinet: Automatic transfer switch for seamless switching between power sources.
- PMG Alternator: Provides a stable and precise power supply for sensitive loads.
- Trailer Type: Mobile genset solution for easy transportation and deployment.
- Engine & Water Heater: Ensures optimal engine performance in cold environments.
- Fuel-Water Separator: Protects the fuel system from contamination and damage.
FAQ:
- Q: What is the fuel consumption of the 1125kVA China Engine Genset?
A: The fuel consumption is 225g/kWh at 100% load. - Q: What is the warranty period for this genset?
A: Please contact us for details on the warranty period and service support. - Q: Can this genset be used for residential power backup?
A: Yes, the 1125kVA China Engine Genset is suitable for both industrial and residential power backup applications.
Looking for a reliable and efficient 1125kVA China Engine Genset? Choose the TG1238SDS powered by an SDEC diesel engine. With its high power output, durable construction, and advanced control system, this genset is perfect for various applications. Whether you need a primary or secondary power source, the 1125kVA China Engine Genset is your go-to solution for uninterrupted power supply. Don't miss out on this top-quality SDEC Diesel Genset – order yours today!
