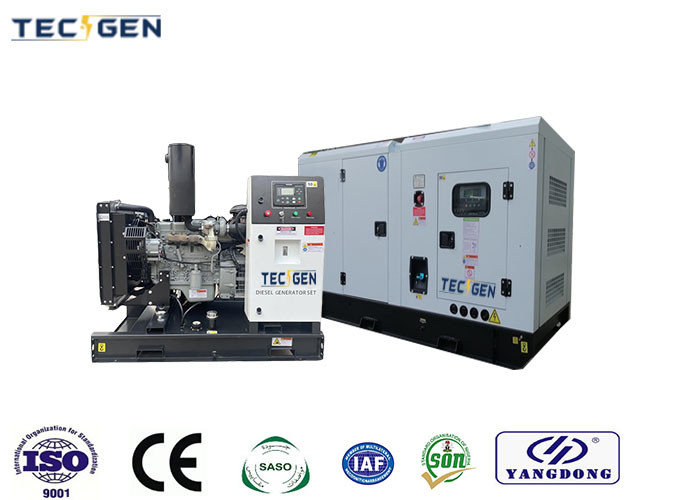

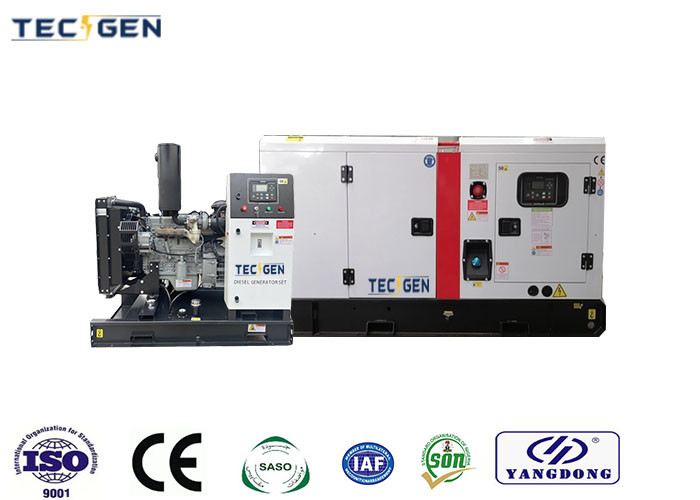

21kW Yangdong diesel silent generator 60Hz China genset with maintenance free battery
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG29YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Yangdong Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | Y490D |
| Alternator Model | TGI184S21 | Output | 21kW/26kVA |
| Governor | Mech | Power Factor | P.F 0.8 |
| Highlight | 21kW Yangdong diesel silent generator,China genset Yangdong diesel silent generator,60Hz Yangdong diesel silent generator |
||
Product Description
21kW Yangdong diesel silent generator 60Hz China genset with maintenance free battery
Standard Features:
Introducing the TG29YDSD6, a state-of-the-art 21kW Yangdong Diesel Silent Generator, designed to meet the power needs of various applications. This generator set boasts a prime power output of 21kW/26kVA and a standby power of 23kW/29kVA, ensuring reliable power supply even during peak demands. With a frequency of 60Hz and a rated voltage of 240V, it is perfect for China's electrical standards, making it an ideal choice for 60Hz China Genset requirements.
Key Features:
- Powerful Engine: Equipped with a robust Yangdong Y490D engine, the generator delivers a rated output of 27kW at 1800rpm. Its in-line cylinder arrangement with a displacement of 2.67 liters ensures smooth and efficient operation.
- Silent Operation: The silent canopy design significantly reduces noise levels to just 72db(A) at 7 meters, making it suitable for residential and commercial areas where quiet operation is a priority.
- Advanced Alternator: The Copy Stamford TGI184S21 alternator provides a rate output of 21kW with a steady-state voltage regulation of 1%, ensuring clean and stable power output. Its Class H insulation and single bearing design enhance durability and performance.
- Smart Control System: The DEIF SGC-420 control system with AMF module offers automated start/stop functionality, static with auto battery charger, emergency stop push button, and ATS connection. Optional brands like Deepsea, ComAp, and Mebay are also available for customized control solutions.
- Fuel Efficiency: With a fuel consumption rate of 5.8 liters per hour at 100% load, the generator offers exceptional fuel efficiency, reducing operational costs.
21kW Yangdong Diesel Silent Generator Specifications:
| Technical Parameter for 21kW Yangdong Diesel Silent Generator | Genset Model | TG29YDSD6 |
| Prime Power | 21kW/26kVA | |
| Standby Power | 23kW/29kVA | |
| Frequency | 60Hz | |
| Rated Voltage | 240V | |
| Current | 109.4A | |
| Power Factor | 0.8 | |
| Governor | MECH | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | YANGDONG | |
| Engine Model | Y490D | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI184S21 | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 80L | |
| Yangdong Engine General Data | Engine Brand | YANGDONG |
| Engine Model | Y490D | |
| Rated Output | 27kW | |
| Rated Speed | 1800rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 2.67 | |
| Aspiration | Natural Intake | |
| Bore×Stroke (mm×mm) | 90x105 | |
| Compression Ratio | 18:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 5.8 | |
| AC Alternator Data | Model | TGI184S21 |
| Brand | Copy Stamford | |
| Rate Output | 21kW | |
| Frequency | 60Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 160A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, JX Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The 21kW Yangdong Diesel Silent Generator is ideal for a wide range of applications, including but not limited to:
- Residential backup power
- Commercial and industrial power supply
- Remote locations and off-grid systems
- Construction sites and temporary power needs
Advantages:
- Reliability: Yangdong engines are renowned for their reliability and durability, ensuring long-lasting performance.
- Efficiency: The generator's fuel-efficient design minimizes operational costs and environmental impact.
- Versatility: Suitable for various power requirements, making it a versatile solution for different applications.
- User-Friendly: The intuitive control system and maintenance-free battery make it easy to operate and maintain.
- Silent Operation: The silent canopy design ensures minimal noise pollution, making it suitable for sensitive environments.
Options:
- Output Socket: Easily connect your devices and appliances with the provided output socket.
- Integrated Fuel Tank: An 80-liter fuel tank ensures extended runtime without the need for frequent refueling.
- Trailer & Silent Canopy: Transport the generator easily with the included trailer and enjoy silent operation with the canopy.
- Sync Panel: Synchronize multiple generators for added power capacity and redundancy.
- Water Heater & Engine Heater: Keep the engine and coolant warm during cold weather conditions for optimal performance.
Engine Brand Options:
In addition to Yangdong, we also offer a range of other engine brands, including Cummins, Perkins, Weifang Ricardo, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, JX Isuzu, Doosan, VMAN, Mitsubishi, MTU, and Googol, allowing you to choose the perfect engine for your specific needs.
FAQ:
Q: What is the noise level of the generator?
A: The noise level is 72db(A) at 7 meters, making it suitable for quiet environments.
Q: What is the fuel consumption rate of the generator?
A: The fuel consumption rate is 5.8 liters per hour at 100% load.
Q: Can the generator be synchronized with other generators?
A: Yes, the generator can be synchronized with other compatible units using a sync panel.
By choosing the 21kW Yangdong Diesel Silent Generator, you're investing in a reliable, efficient, and versatile power solution that meets your specific needs. With its advanced features, user-friendly design, and optional accessories, it's the perfect choice for a wide range of applications. Don't miss out on this top-quality 60Hz China Genset – order yours today!
