Three phase 22kW gangdong genset 60Hz generator set powered by Chinese diesel engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG28YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Yangdong Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | Yangdong YSD490D |
| Alternator Model | TGI184S20 (Copy Stamford) | Output | 28kVA / 22kW |
| Phase | Three Phase | Power Factor | P.F 0.8 |
| Highlight | Chinese diesel engine gangdong genset,Three phase gangdong genset,22kW gangdong genset |
||
Product Description

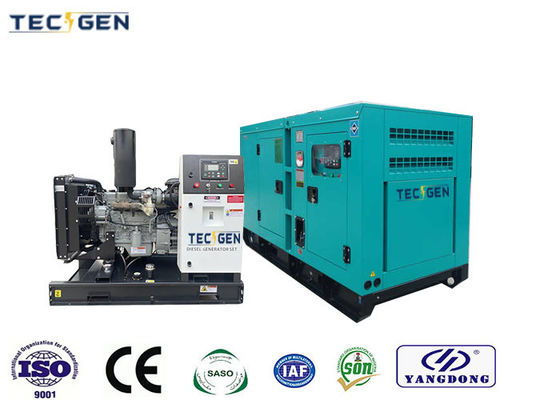

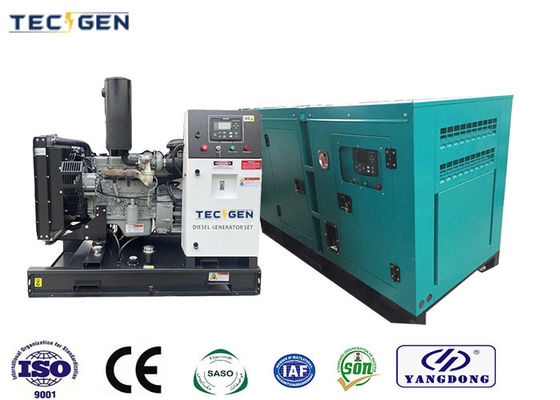

Three phase 22kW gangdong genset 60Hz generator set powered by Chinese diesel engine
Standard Features of the Three Phase 22kW Yangdong Genset:
Introducing the Three Phase 22kW Yangdong Genset, a robust and reliable power solution designed to meet your energy needs efficiently. This generator set comes with a soundproof enclosure, ensuring minimal noise pollution and a comfortable environment. Powered by the Yangdong YSD490D engine, it boasts a prime output of 25kVA / 20kW and a maximum output of 28kVA / 22kW, making it ideal for a wide range of applications.
The genset features a 60Hz frequency, 1800rpm speed, and a voltage of 220V, delivering a stable and consistent power supply. With an output type of 3 Phase, 4 Wire, it provides ample current at 113.6A, ensuring that all your electrical devices receive the power they need. The DEIF SGC-420 controller offers advanced monitoring and protection functions, while the built-in 125A ATS ensures seamless load transfer during power outages.
Key Features:
- Powerful Engine: The Yangdong YSD490D engine with direct injection and four cylinders provides reliable power output.
- Efficient Alternator: The TGI184S20 alternator, a copy of Stamford, ensures a steady and clean power supply.
- Soundproof Enclosure: Minimizes noise pollution, making it suitable for residential and commercial use.
- Advanced Controller: The DEIF SGC-420 controller offers comprehensive monitoring and protection.
- Built-in ATS: Ensures automatic load transfer during power outages.
- Fuel Efficiency: With a fuel consumption rate of 240g/kW.h, it offers cost-effective power generation.
Three Phase 22kW Yangdong Genset Specifications:
| Three Phase 22kW Yangdong Genset Datasheet | ||||
| Three Phase 22kW Yangdong Genset | Genset Type | Soundproof | ||
| Genset Model | TG28YDSD6 | |||
| Prime Output | 25kVA / 20kW | |||
| Max Output | 28kVA / 22kW | |||
| Engine model | Yangdong YSD490D | |||
| Alternator mdoel | TGI184S20 (Copy Stamford) | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 220V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 113.6A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 125A Built-in ATS | |||
| Breaker | Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2200x750x1180mm | |||
| Weight | 700kgs | |||
| Yangdong Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Diesel Engine Parameters | ||||
| Yangdong Engine YSD490D | Brand | Yangdong | ||
| Model | YSD490D | |||
| Prime power | 25kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Naturally Aspriated | |||
| Compression Ratio | Direct Injection | |||
| Speed | 1800rpm | |||
| Displacement | 2.54L | |||
| Bore* Storke | 90mm*100mm | |||
| governor | MECH | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 5.3 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI184S20 | Brand | Tecgen | ||
| Model | TGI184S20 | |||
| Rate Output | 25kVA | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller TECGEN TG6120U | Brand | DEIF | ||
| Model | SGC-420 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| Inlet & Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The Three Phase 22kW Yangdong Genset is perfect for a variety of applications, including residential backup power, commercial power supply, and industrial use. Whether you need a reliable power source for your home, business, or industrial facility, this generator set will meet your needs with ease.
Advantages:
- Reliability: With a robust engine and alternator, you can trust this genset to provide consistent power output.
- Efficiency: The fuel-efficient engine ensures that you get the most out of every gallon of fuel.
- Quiet Operation: The soundproof enclosure reduces noise pollution, making it suitable for sensitive environments.
- Advanced Monitoring: The DEIF SGC-420 controller provides real-time monitoring and protection, ensuring the safety and efficiency of your generator set.
- Versatility: Suitable for a wide range of applications, from residential to industrial use.
Options:
Customize your Three Phase 22kW Yangdong Genset with a variety of optional accessories to suit your specific needs. Choose from items such as a water heater, anti-condensation heater, oil preheater, PMG, unit control screen, air starting motor, parallel ATS automatic load transfer screen, heavy air filter for desert use, and more. Additionally, you can opt for a fully automatic oil supply system, vehicle-mounted power generation vehicle, heat exchanger, and external circulation cooling tower, among others.
FAQ:
- What is the fuel consumption rate of the Three Phase 22kW Yangdong Genset?
- The fuel consumption rate is 240g/kW.h.
- Can this generator set be used for residential use?
- Yes, it is suitable for both residential and commercial use.
- What is the delivery time for spot goods?
- Delivery time for 12-24 sets is 7-15 days, and for 24-120 sets, it is 15-25 days.
- Does the generator set come with a warranty?
- Yes, it comes with a comprehensive warranty for your peace of mind.
- Can I customize the generator set with additional accessories?
- Yes, a variety of optional accessories are available to suit your specific needs.
By choosing the Three Phase 22kW Yangdong Genset, you are investing in a reliable and efficient power solution that will meet your needs for years to come. With its advanced features, quiet operation, and fuel efficiency, it is the perfect choice for anyone looking for a high-quality 60Hz generator set. Don't miss out on this opportunity to secure a dependable power source for your home, business, or industrial facility.
