Single phase 18kW genset 60Hz diesel generator with power factor 0.8 for single phase appliction
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG25YDSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Yangdong Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | Yangdong YND490D |
| Alternator Model | TGI184S18 | Output | 18kW / 23kVA |
| Phase | Single Phase | Power Factor | P.F 0.8 |
| Highlight | 0.8 power factor genset,Single phase 18kW genset,60Hz diesel generator |
||
Product Description
Single phase 18kW genset 60Hz diesel generator with power factor 0.8 for single phase appliction
Standard Features

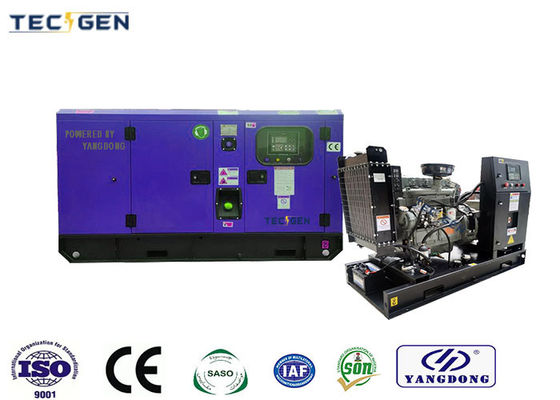

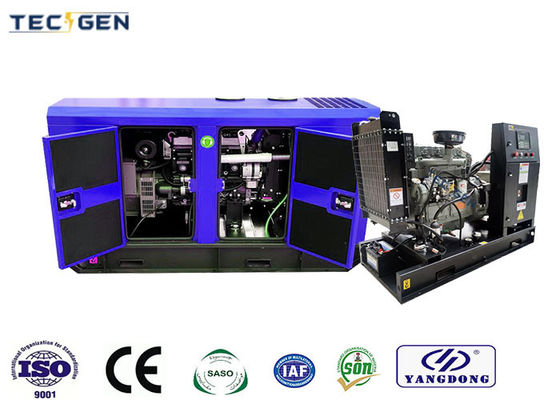

Introducing the TG25YDD6 and TG25YDSD6, our robust Single Phase 18kW Gensets designed for unparalleled reliability and performance. Both models, available in open and silent configurations, operate at a standard frequency of 60Hz and a speed of 1800rpm. These generators produce a stable voltage of 220V, making them ideal for a wide range of applications.
Key Features
Powerful Engine:
Powered by the Yangdong YND490D engine, these gensets deliver a prime power of 18kW (23kVA) and a standby power of 20kW (25kVA). The engine features indirect injection, natural aspiration, and a 4-cylinder design with a bore and stroke of 90mm x 95mm, resulting in a displacement of 2.417 liters. The water-cooled engine boasts a compression ratio of 18:1, ensuring efficient and clean power output.
Efficient Alternator:
The Tecgen TGI184S18 alternator is designed to match the engine's performance, providing a rated output of 18kW at 60Hz. The alternator features a 4-pole design with star winding connections and an insulation class of H, ensuring durability and reliability. The IP23 enclosure protects the alternator from environmental factors, while the AVR voltage regulator maintains steady-state voltage regulation within 1%.
Advanced Controller System:
Equipped with the DEIF SGC-420 controller, these gensets offer advanced control features, including AMF (Automatic Mains Failure) module, static with auto battery charger, emergency stop push button, and ATS (Automatic Transfer Switch) connection. This controller system ensures seamless operation and easy monitoring of the generator's performance.
Single Phase 18kW Genset Datasheets
| Technical Specification: | ||
| Single Phase 18kW Genset Specification | ||
| Genset Model | TG25YDD6 | TG25YDSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Speed | 1800rpm | |
| Voltage | 220V | |
| Phase | Single Phase | |
| Rate Current | 102.3A | |
| Prime Power | 18kW / 23kVA | |
| Standby Power | 20kW / 25kVA | |
| Engine Model | Yangdong YND490D | |
| Alternator Model | TGI184S18 | |
| Controller | DEIF SGC 420 | |
| Weight & Dimensions | ||
| Length (mm) | 1250 | 1900 |
| width (mm) | 780 | 850 |
| Height (mm) | 980 | 1100 |
| Weight (kgs) | 800 | 1050 |
| Engine Specification | ||
| Brand | Yangdong | |
| Engine Model | YND490D | |
| Prime power | 24kW | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 90 x 95 | |
| Displacement (L) | 2.417 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 5.75 | |
| Coolant Capacity ( In radiator) | 5.75 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 60Hz | |
| 100% Load (L/h) | 5.1 | |
| 75% Load (L/h) | 3.8 | |
| 50% Load (L/h) | 2.6 | |
| 25% Load (L/h) | 1.2 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S18 | |
| Rate Output | 18kW | |
| Frequency | 60HHz | |
| Speed | 1800rpm | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Phase | Single Phase | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage
Our Single Phase 18kW Gensets are perfect for various applications, including residential backup power, commercial use, and light industrial applications. They can be used as a primary or standby power source for essential equipment, such as HVAC systems, lighting, and sensitive electronics. The silent model is ideal for noise-sensitive environments, such as hospitals, schools, and residential areas.
Advantage
Fuel Efficiency:
With fuel consumption rates of 5.1 liters per hour at 100% load, 3.8 liters per hour at 75% load, 2.6 liters per hour at 50% load, and 1.2 liters per hour at 25% load, these gensets offer exceptional fuel efficiency. This reduces operational costs and environmental impact, making them a cost-effective and eco-friendly solution.
Reliability:
The Yangdong engine is known for its durability and reliability, ensuring long-lasting performance even in harsh conditions. The alternator's H-class insulation and IP23 enclosure provide additional protection against environmental factors, such as dust and moisture.
Ease of Use:
The DEIF SGC-420 controller system simplifies operation and maintenance, allowing for easy monitoring and control of the generator's performance. The automatic transfer switch (ATS) connection ensures seamless transition between main and generator power sources.
Option
Customize your Single Phase 18kW Genset with a variety of optional equipment, including an ATS box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type, and 3000-hour spare parts. These options enhance the functionality and versatility of your generator, meeting your specific needs and requirements.
FAQ
Q: What is the prime power of these gensets?
A: The prime power of these gensets is 18kW (23kVA).
Q: What is the fuel consumption rate at 100% load?
A: The fuel consumption rate at 100% load is 5.1 liters per hour.
Q: Are these gensets available in silent configurations?
A: Yes, the TG25YDSD6 model is available in a silent configuration.
Q: What is the controller system used in these gensets?
A: These gensets are equipped with the DEIF SGC-420 controller system.
Conclusion
Experience unparalleled reliability and performance with our Single Phase 18kW Gensets. Whether you need a primary or standby power source for your residential, commercial, or light industrial application, these generators deliver efficient, clean, and consistent power. With advanced features, fuel efficiency, and customizable options, these gensets are the perfect solution for your power needs.
