38kVA Weichai Diesel Generator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Weichai Diesel Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG41WCS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Weichai | Type | Diesel Generator |
|---|---|---|---|
| Noise Level | 68dB(A) | Fuel Consumption | 230g/kw.h |
| Rated Speed | 1500rpm/min | Rated Frequency | 50Hz |
| Rated Power | 30KW / 38kVA | Rated Voltage | 220, 230, 240, 380, 400, 415V |
| Highlight | 38kVA Weichai Diesel Generator,30KW Weichai Diesel Generator,415V weichai genset |
||
Product Description

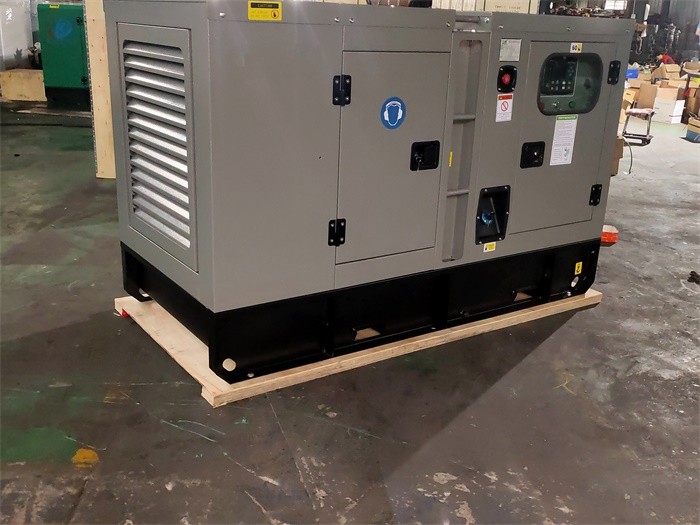

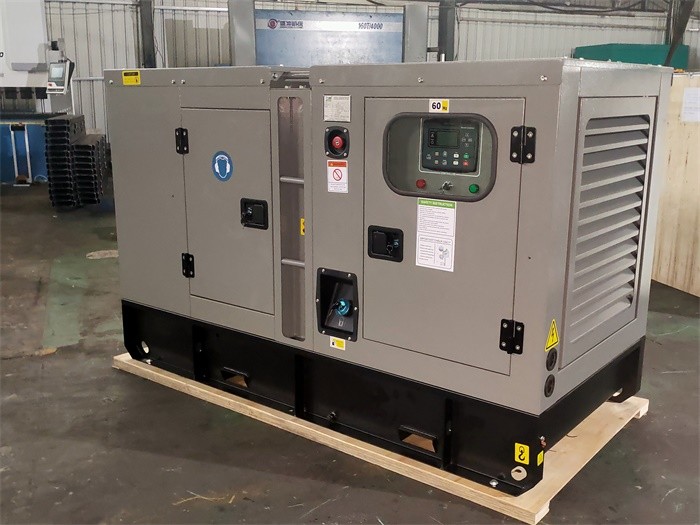

Compact Generator Set Diesel Engine with Low Noise Level 68dB A Rated 30kW / 38kVA
Product Description:
Weichai Diesel Generator is an advanced emergency diesel generator powered by a Baudouin diesel engine from China. It has a rated voltage of 220, 230, 240, 380, 400, and 415V, a rated speed of 1500rpm/min, a rated frequency of 50Hz, and a rated power of 30KW / 38kVA. It has an excellent fuel consumption rate of 230g/kw.h, making it an ideal choice for emergency power supply in various applications. It is reliable, durable, and easy to operate and maintain. In addition, the generator is equipped with advanced control systems and safety features to ensure safe and reliable operation.
Features:
- Product Name: Weichai Diesel Generator
- Rated Frequency: 50Hz
- Fuel Consumption: 230g/kw.h
- Type: Diesel Generator
- Rated Speed: 1500rpm/min
- Rated Voltage: 220, 230, 240, 380, 400, 415V
- Silent genset
- China Diesel Engine Generator
- China Diesel Engine Generator Price
Technical Parameters:
| Technical Specification: | ||
| 30kW Weichai Silent Genset Specification | ||
| Genset Model | TG41WC | TG41WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 54.8A | |
| Prime Power | 30kW / 38kVA | |
| Standby Power | 33kW / 41kVA | |
| Engine Model | WP2.3D40E200 | |
| Alternator Model | TGI184S30 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| Width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 900 | 1300 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP2.3D40E200 | |
| Prime/Standby power | 36kW / 40kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 89 x 92 | |
| Displacement (L) | 2.3 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 6.7 | |
| Coolant Capacity ( In radiator) | 6.7 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 8.2 | |
| 75% Load (L/h) | 6.2 | |
| 50% Load (L/h) | 4.1 | |
| 25% Load (L/h) | 2.1 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S30 | |
| Rate Output | 30kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
We cooperate with famous diesel engine brands like Cummins, Perkins, Deutz, LovoL, Doosan, SDEC, Ricardo, Isuzu, FAW, Yangdong, Weichai, MTU, ETC.
Moreover, we are equipped with famous brushless alternator from brands like Stamford, Leroy Somer, Marathon, Tecgen and Mecc alte.
Generator set with 50°C radiator and fan is included, which provides enough engine cooling system guarantee long time working.
Moreover, advanced generator set control system, ATS system, remote control system, parallel operation system, option control model from Deep Sea, Smartgen, ComAp and DEIF is available.
Generator set use high-quality steel ranging from 2MM to 6MM for its canopy.
High density sound-absorbing material is used to ensure sound insulation and fireproofing.
We provide 12V/ 24V DC battery with charger, battery connects wire, and fuel tank with fuel indicator. This is to ensure our generator set can provide 10-12 hours long time for working.
The control box and power output box use high protect class IP55 to ensure waterproof and electric leakage protect.
Our generator set design includes turn-back type for air inflow & air outlet, bottom hole for forklift, water outlet & oil outlet for easy maintenance, double open door on both sides, to reduce the noise and improve engine efficiency.
We also provide diesel generator sets of silent, supper silent, soundproof, trailer type and container type.
For quality assurance, our generator set complies with main standards like GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standard.
Customization:
Weichai Diesel Generator is an excellent choice for continuous generator, Generator Set Diesel Engine, and China Diesel Engine Generator. Our Tecgen Weichai Diesel Generator is highly reliable and efficient with a TG41WCS model number. It is certified with ISO / CE / SASO / CIQ, and has a minimum order quantity of 1 unit. The price is open for negotiation. It is packaged with either plastic film package or polywooden package, and the delivery time is within 15 working days. Payment terms are T/T / L/C. We are capable to supply 300 units per month. The rated power of this generator is 30KW and it is available with rated voltage of 220, 230, 240, 380, 400, 415V. Its noise level is 68dB(A),fuel consumption is 230g/kw.h, and the rated speed is 1500rpm/min.
Packing and Shipping:
Weichai Diesel Generator Packaging and Shipping
Weichai Diesel Generators are packed securely and shipped in standard shipping crates. The crates are designed to protect the generator and all its components during transit. The crates are sealed and labeled for easy identification and tracking purposes. Standard shipping methods are used including ground, air, and ocean freight. Special arrangements can be made if the customer requires expedited shipping.
FAQ:
Q1: What is the brand name of the Weichai Diesel Generator?
A1: The brand name of the Weichai Diesel Generator is Tecgen Weichai.
Q2: What is the model number of the Weichai Diesel Generator?
A2: The model number of the Weichai Diesel Generator is TG41WCS.
Q3: Where is the Weichai Diesel Generator manufactured?
A3: The Weichai Diesel Generator is manufactured in Fuzhou, China.
Q4: What certifications does the Weichai Diesel Generator have?
A4: The Weichai Diesel Generator has ISO / CE / SASO / CIQ certifications.
Q5: What is the minimum order quantity for the Weichai Diesel Generator?
A5: The minimum order quantity for the Weichai Diesel Generator is 1 Unit.
