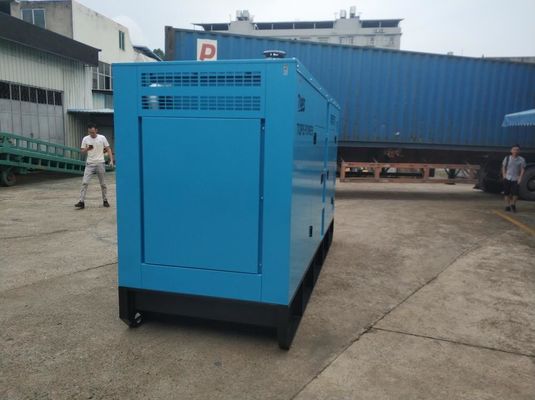

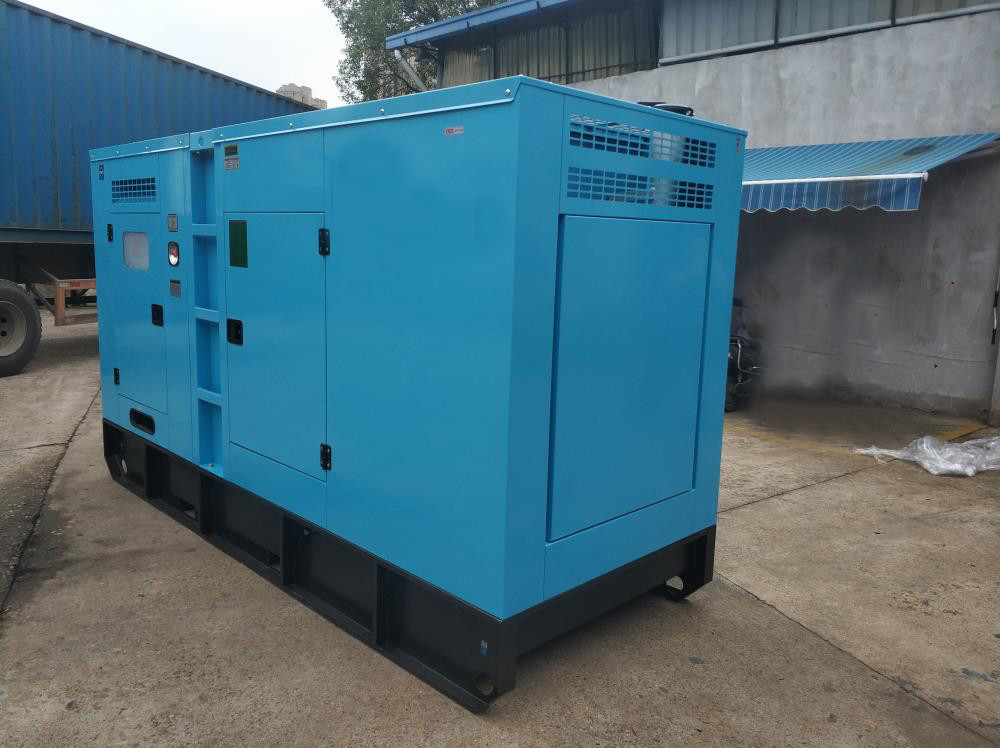

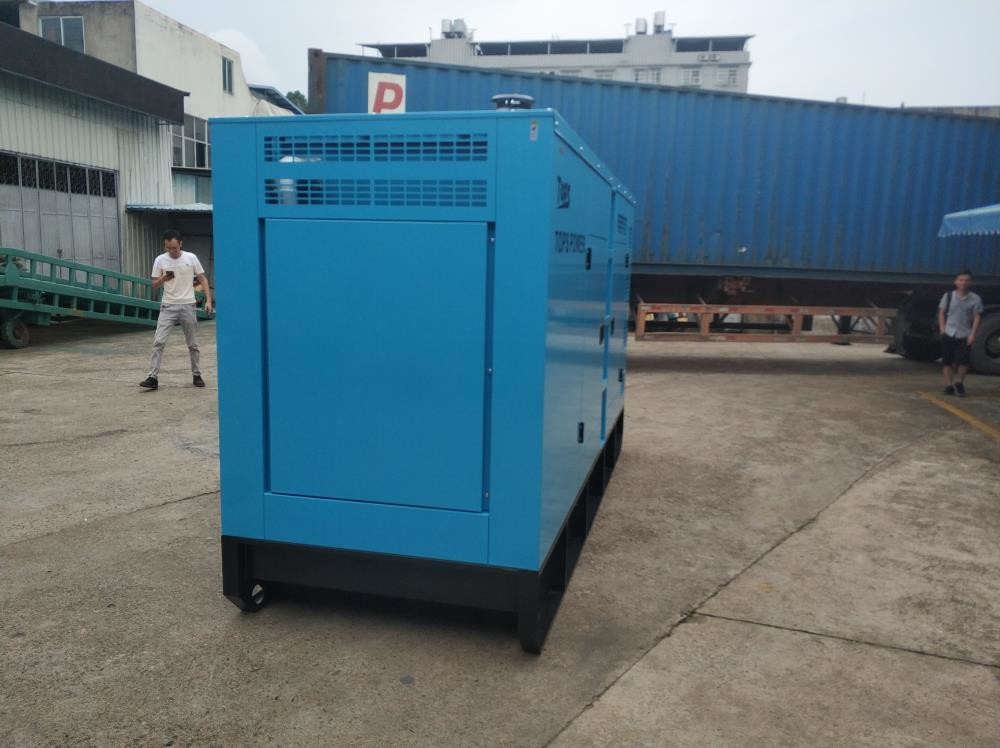

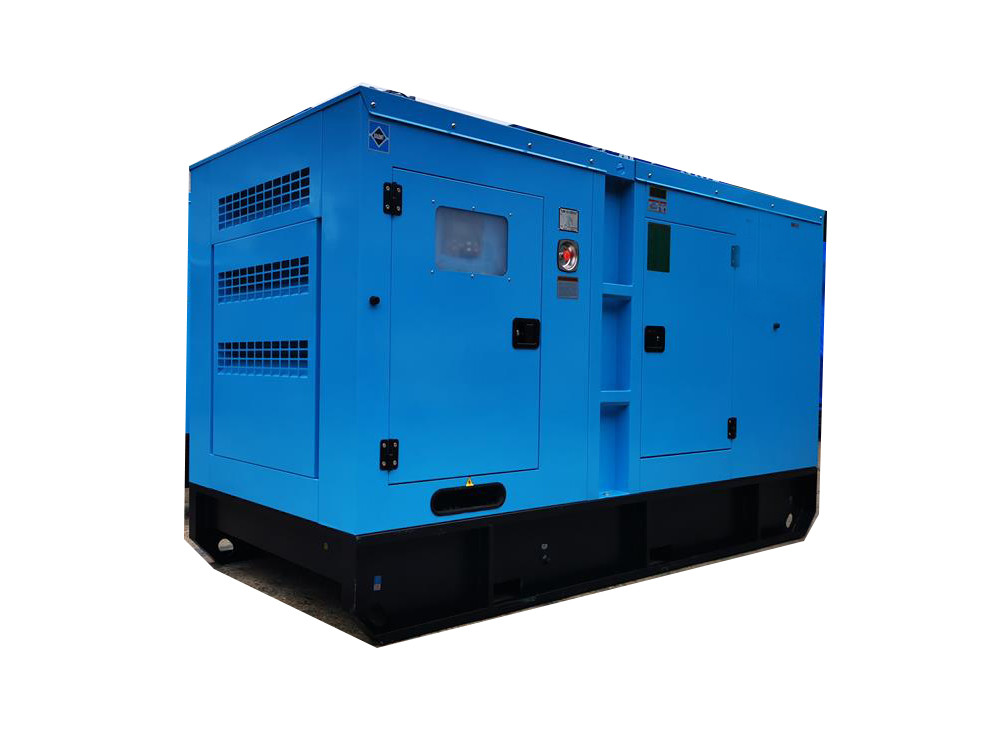

150kVA 165kVA Weichai Diesel Powered Generator Three Phase
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Water Cooled | Frequency | 50Hz |
|---|---|---|---|
| Fuel | Diesel | Production | Weichai Diesel Generator |
| Noise Level | 70dB(A) @7m | Phase | Three |
| Speed | 1500rpm | Starting System | Electric |
| Voltage | 220V/380V/400V/415V/440V/480V | Warranty | 1500 Hours |
| Prime Power | 150kVA / 120kW | Type | Silent |
| Color | Various RAL Standard Colors For Options | ||
| Highlight | 165kVA diesel powered generator,Weichai diesel powered generator,150kVA 3 phase diesel generator |
||
Product Description
Output 150kVA /165kVA Diesel Power Generator Powered by Famous Engine Weichai Diesel Engine
Standard Configuration of Weichai diesel engine genset:
- Powered by Weichai diesel Engine
- The genset is designed to work with famous Weichai engine, which ensures reliable performance and energy efficiency.
- The Weichai engine is renowned for its durability and longevity, delivering consistent power output and dependable operation.
- Leroy Somer Alternator (Stamford, Meccalte for option)
- The Leroy Somer alternator, renowned worldwide for its performance and quality, is factory-fitted as standard.
- For additional options, Stamford, Mecc Alte or Copy Stamford alternators are also available.
- Samrtgen HGM 6120N Control Panel as Standard, AMF Control Panel Deepsea DSE7320 & ComAp AMF20 for Option, ATS for Option
- The Smartgen HGM 6110N control panel is factory-fitted as standard equipment, providing user-friendly controls and easy operation.
- AMF control panel options include the Deepsea DSE7320 and Smartgen HGM6120N models, providing additional features and functions for enhanced genset performance and monitoring.
- Optional ATS (Automatic Transfer Switch) is available for seamless switching between different power sources, ensuring uninterrupted power supply operation.
- CHNT Breaker as Standard, ABB, Schneider Breaker for Option
- The CHINT breaker is factory-fitted as standard equipment, providing reliable and safe power distribution and circuit protection.
- For additional options, ABB and Schneider breakers are also available for added circuit protection and enhanced safety features.
- 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, output above 650kVA generator set without based Fuel Tank)
- The diesel generator is equipped with 8 working hours base fuel tank as standard equipment, suitable for prime power generation of gensets up to 650kVA capacity.
- Additional options include a base frame for other models, ensuring a stable foundation for the genset and enhancing its performance and durability.
- Anti-Vibration Mounted System
- The genset is equipped with an anti-vibration mounted system to reduce mechanical stress and ensure smooth operation under various conditions.
- This system buffers the genset from external vibrations, ensuring stable power output and longevity of the equipment.
- Battery and Battery Switch
- The genset is equipped with a battery to provide standby power supply in case of main power failure.
- The battery switch allows easy access to the battery for replacement or maintenance purposes.
- Industrial Silencer and Flexible Exhaust Hose
- The genset is equipped with an industrial silencer to reduce noise emissions to an acceptable level, ensuring compliance with environmental regulations and providing a comfortable working environment.
- The flexible exhaust hose allows for easy installation and maintenance of the genset exhaust system, while also reducing noise emissions.
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG165WC | TG165WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 216.5A | |
| Prime Power | 120kW / 150kVA | |
| Standby Power | 132kW / 165kVA | |
| Engine Model | WP6D152E200 | |
| Alternator Model | TGI274S120 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 2900 |
| Width (mm) | 930 | 1100 |
| Height (mm) | 1400 | 1550 |
| Weight (kgs) | 1330 | 1980 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP6D152E200 | |
| Prime/Standby power (kW) | 138 / 152 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 130 | |
| Displacement (L) | 6.75 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 36 | |
| 75% Load (L/h) | 28 | |
| 50% Load (L/h) | 19 | |
| 25% Load (L/h) | 12 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S120 | |
| Rate Output (kVA) | 150 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
FUJIAN TECGEN POWER Co., Ltd was established in 2008, and now become one of the professional players of power generating set manufacturer in China. The factory of Tecgen, occupying a total space of 8, 000 square meter, is located in Fuan City, Fujian Province, China. Now we can supply generating sets ranging 8kVA to 3000kVA open type, soundproof type, Super silent type, trailer type, containerized type diesel generator sets, ATS Panel, Synchronizing Penel, Also we supply Alternators, Motors, Pumps. At present, there are 3 Assembly Lines in Tecgen to enable us to produce 500 sets for Industrial Gensets, Alternators, Motors, Pumps per month. In partnership with our dealer over 40 countries, we keep moving to expand our business all over the world.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What's your MOQ ?
A: MOQ: 1 unit.
Q: How long is your delivery time ?
A: 15 days or less against deposit.
Q: What's your payment term?
A: TT: 30% deposit and 70% balance before shipment.
LC: 100% irrevocable LC.
Q: What's your warranty period ?
A: The goods are under warranty for a period 18 months or 1500 hours
whichever comes first from the date of delivery to the end user
(except the damageable spares of diesel genset caused by incorrect man-made operation)
Q: How to visit our factory ?
A: 2 hours from ChangLe, Fuzhou airport by car.
30 minus from Fuan Train Station.
